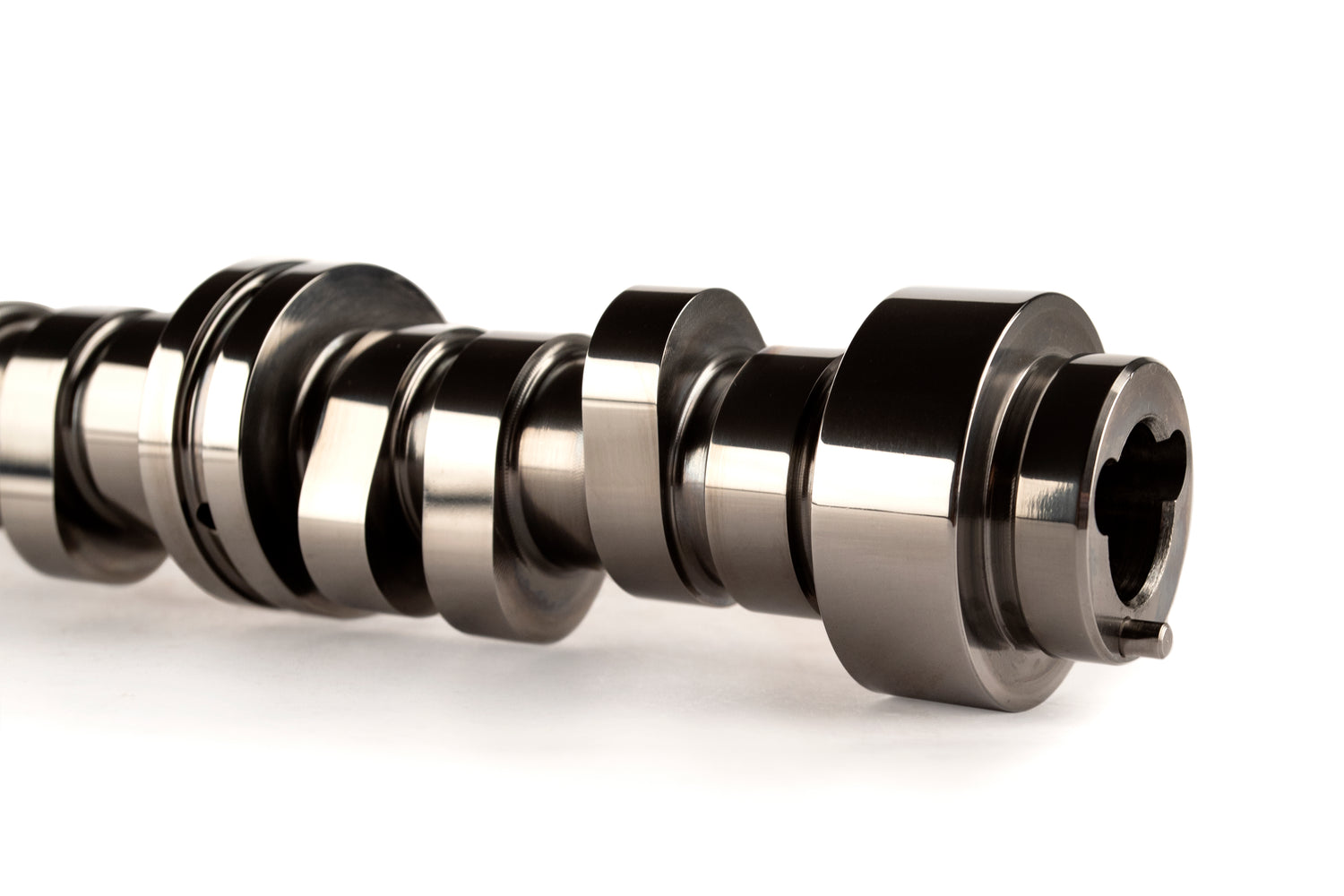

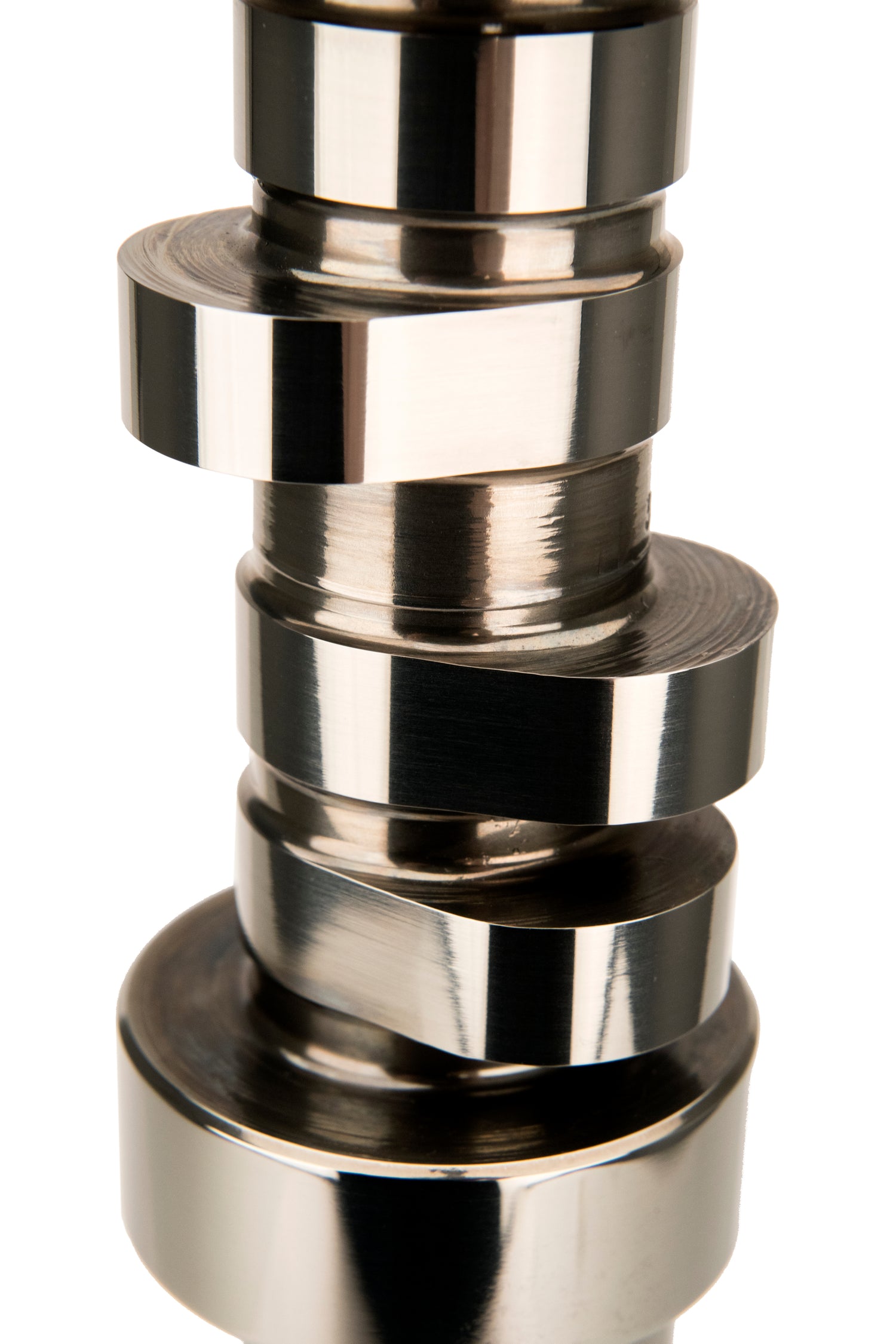

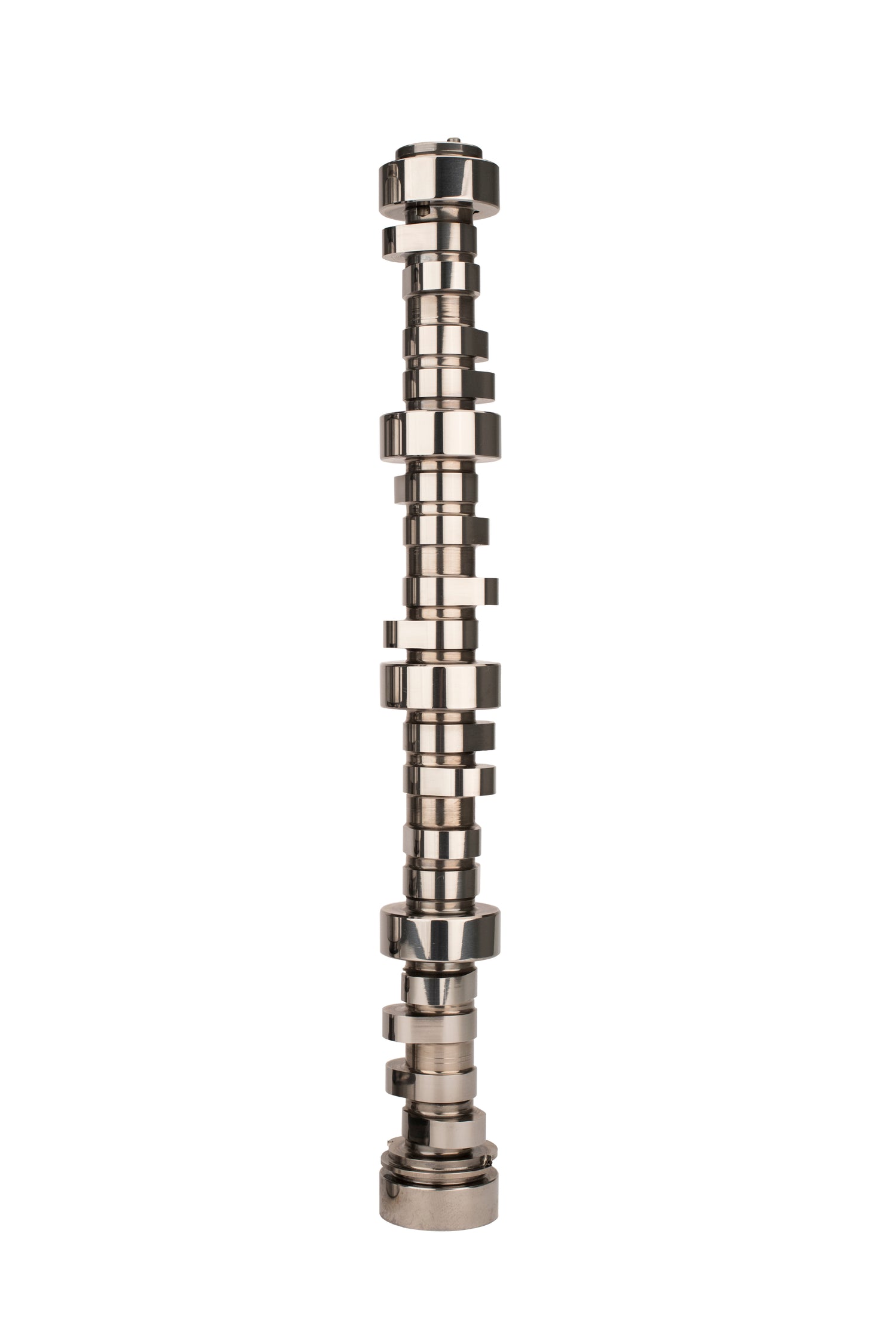

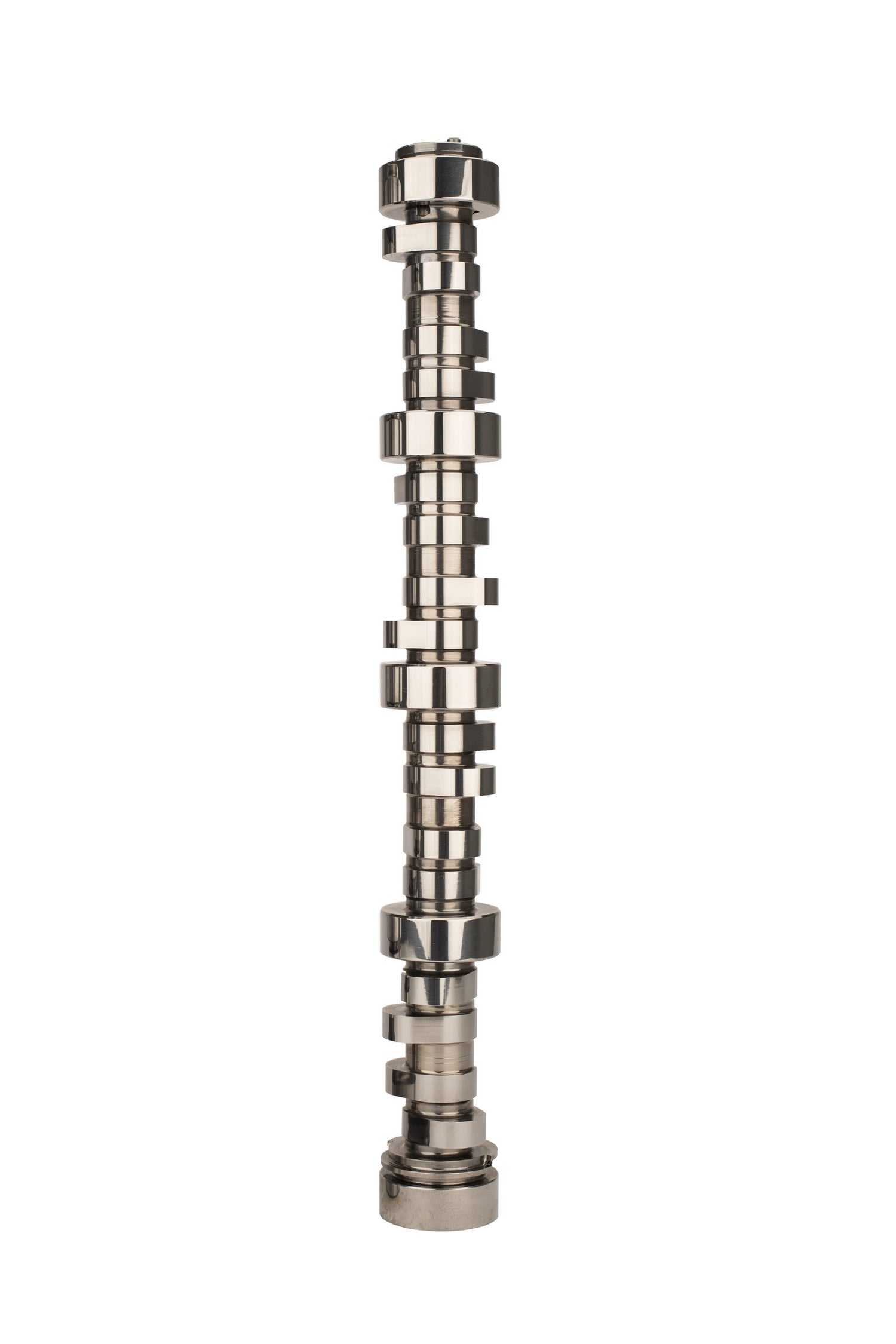

COMP Cams 189-428-13 - Camshaft GM Gen Iv LS VVT/AFM

COMP Cams  |  SKU: COMP-189-428-13
$51595 $56754

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 189-428-13 - Camshaft GM Gen Iv LS VVT/AFM

XFI VVT 226/236 Hydraulic Roller Cam for GM LS GEN IV w/ VVT

Requires either added displacement or high RPM modifications in street / strip aps. Largest vvt cam with stock pistons.

Camshaft Series: XFI VVT
Usage: Street/Strip
Cam Type: Hydraulic Roller
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/o AFM 8 Cylinder (2008-2015)
Lifter Type: Hydraulic Roller
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 274VVI16
Grind Number: 274VVI16
Basic Operating RPM Range: 2,100-7,300
Intake Duration at .050 Inch Lift: 226
Exhaust Duration at .050 inch Lift: 236
Advertised Intake Duration: 272
Advertised Exhaust Duration: 286
Lobe Separation: 116
Intake Valve Lift: 0.619
Exhaust Valve Lift: 0.615
Lifters Included: No
Valve Springs Required: Yes
