COMP Cams 132-501-12 - Camshaft Gm6.6L Duramax 258Xd

COMP Cams  |  SKU: COMP-132-501-12
$89895 $98884

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

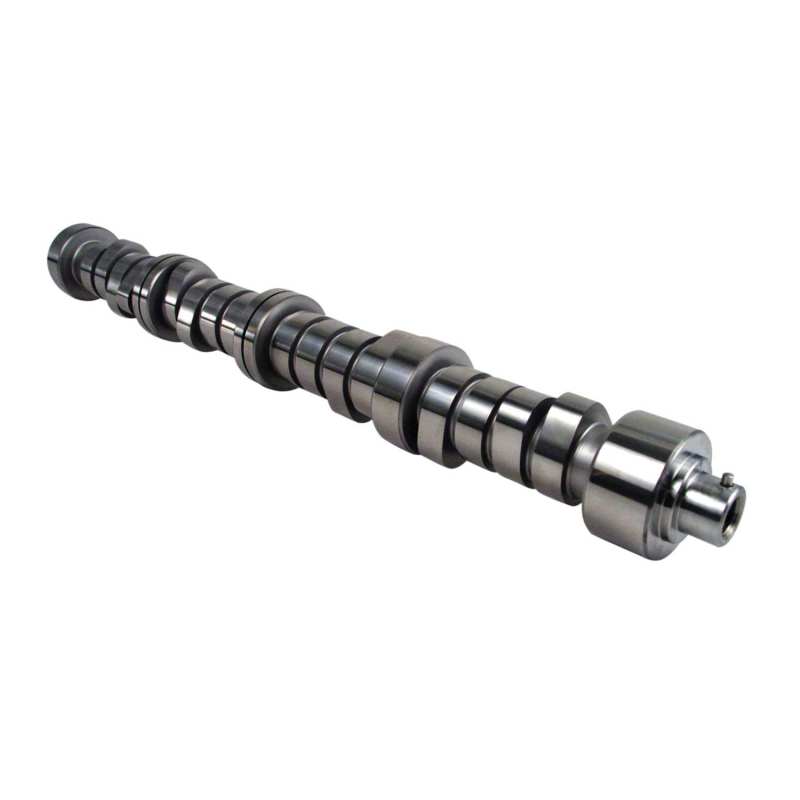

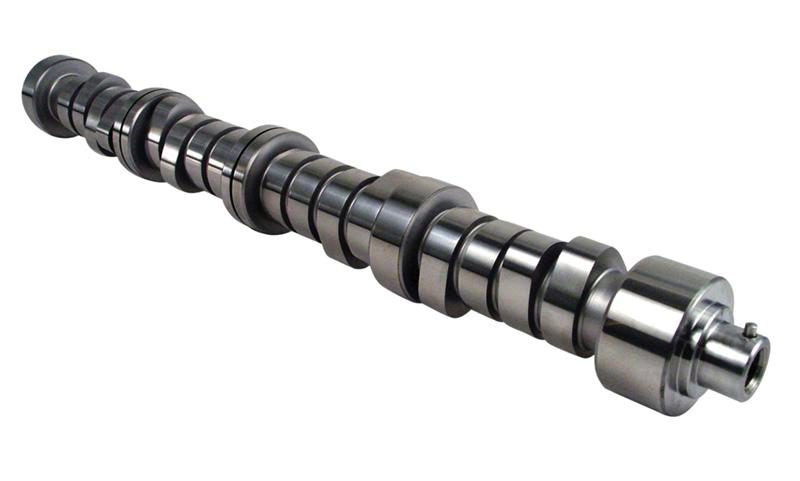

COMP Cams 132-501-12 - Camshaft Gm6.6L Duramax 258Xd

Tri-Power Xtreme 197/202 Solid Roller Cam for GM 6.6L Duramax Diesel

Mechanical Roller-Designed for modified performance Applications (Exh., programmer, etc. upgrades) Good for limited towing. COMP Cams always recommends checking piston to valve clearance whenever installing a Camshaft. Modern engine design dictates a compact combustion chamber and tight clearances. Tolerance stack or Installation errors can result in interference and failure. COMP recommends .080" intake and .120" exhaust minimum piston to valve clearance in most Applications.

Intake Duration at .050 Inch Lift: 197
Exhaust Duration at .050 inch Lift: 202
Advertised Intake Duration: 258
Advertised Exhaust Duration: 268
Lobe Separation: 109
Intake Valve Lift: 0.45
Exhaust Valve Lift: 0.45
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Material: Billet Steel
Engine Family: GM 6600/6.6L Duramax Diesel (2000+)
Lifter Type: Solid Roller
Amazon ASIN: B001GFQ0SY
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 258XD R109
Camshaft Series: Tri-Power Xtreme
Usage: Street/Performance
Cam Type: Solid Roller
Grind Number: 258XD R109
Basic Operating RPM Range: 1,500-4,200
