COMP Cams 12-924-9 - Camshaft CS 296B-R4 .900 Bc

COMP Cams  |  SKU: COMP-12-924-9
$55895 $61484

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

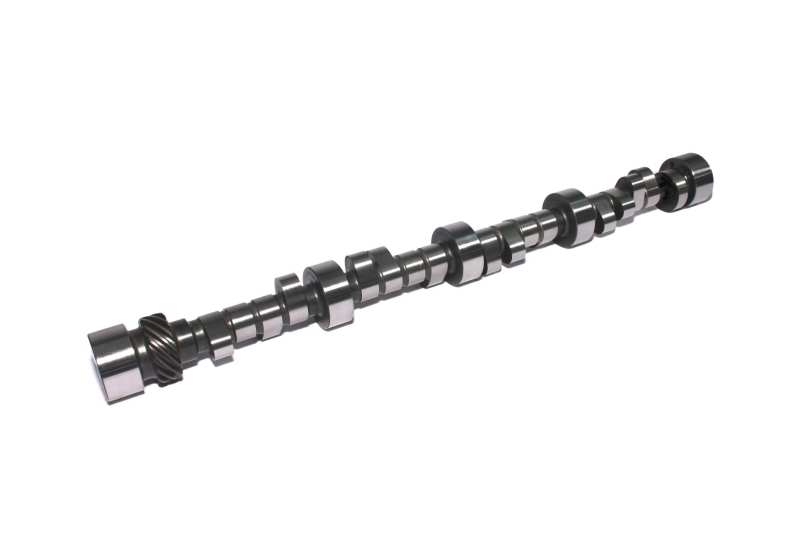

COMP Cams 12-924-9 - Camshaft CS 296B-R4 .900 Bc

Camshaft - Oval Track - Mechanical Roller - Lift 0.630 / 0.630 in - Duration 296 / 304 - 104 LSA - 4200 / 7000 RPM - Small Block Chevy - Each

Good Late Model cam w/ 388-406c.i. on short track.

SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

Amazon ASIN: B000P5D8PO
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 296BR-4
Camshaft Series: Oval Track (.900" Base Circle)
Usage: Strip
Cam Type: Solid Roller
Grind Number: 296BR-4
Basic Operating RPM Range: 4,200-7000
Intake Duration at .050 Inch Lift: 260
Exhaust Duration at .050 inch Lift: 267
Advertised Intake Duration: 296
Advertised Exhaust Duration: 304
Lobe Separation: 104
Intake Valve Lift: 0.63
Exhaust Valve Lift: 0.63
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Lifter Type: Solid Roller
