COMP Cams 12-824-14 - Camshaft CS 47S 312R-7
COMP Cams | SKU:
COMP-12-824-14
Sale price
$60395
Regular price
$66434
Unit price
/
Unavailable
$60.39 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

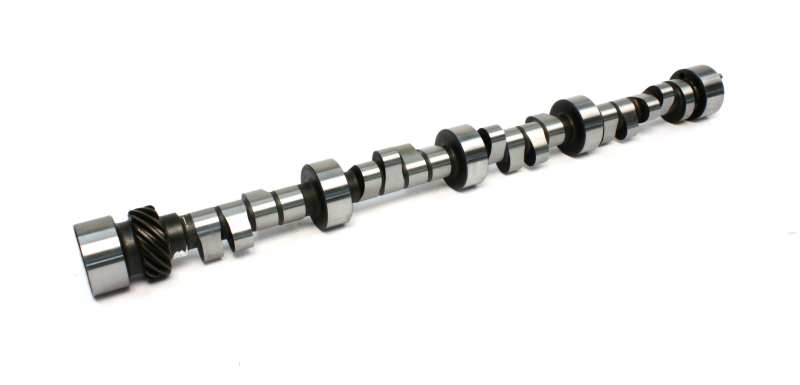

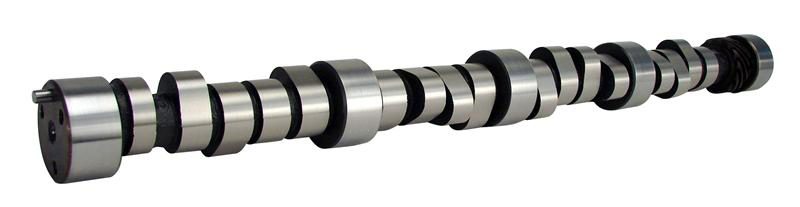

COMP Cams 12-824-14 - Camshaft CS 47S 312R-7
Drag Race/Oval Track 4/7 Swap 276/284 Solid Roller Cam for Chevrolet Small Block
SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.
Camshaft Series: Oval Track 4 and 7 Swap Firing Order
Usage: Strip
Cam Type: Solid Roller
Grind Number: 47S 312R-7
Basic Operating RPM Range: 4,500-7500
Intake Duration at .050 Inch Lift: 276
Exhaust Duration at .050 inch Lift: 284
Advertised Intake Duration: 312
Advertised Exhaust Duration: 322
Lobe Separation: 107
Intake Valve Lift: 0.63
Exhaust Valve Lift: 0.63
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Lifter Type: Solid Roller
Amazon ASIN: B001G7GVJK
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 47S 312R-7
