COMP Cams 12-819-9 - Camshaft CS 314Rxd-14
COMP Cams | SKU:
COMP-12-819-9
Sale price
$55895
Regular price
$61484
Unit price
/
Unavailable
$55.89 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

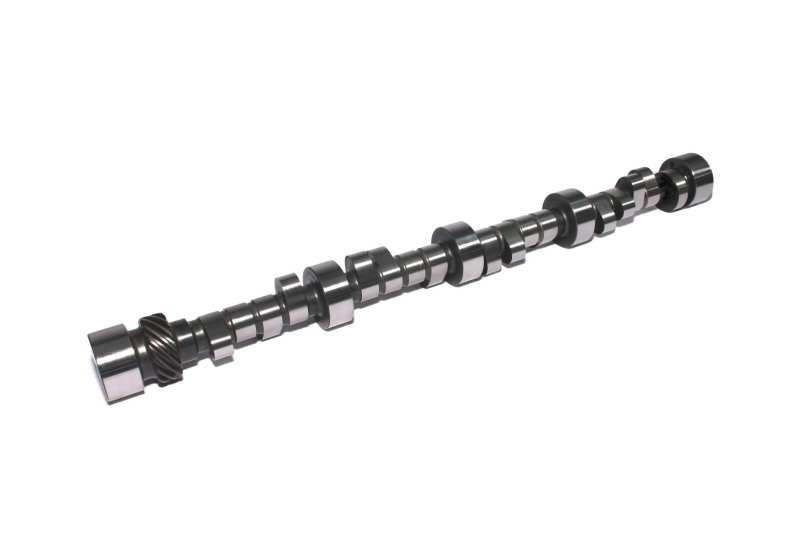

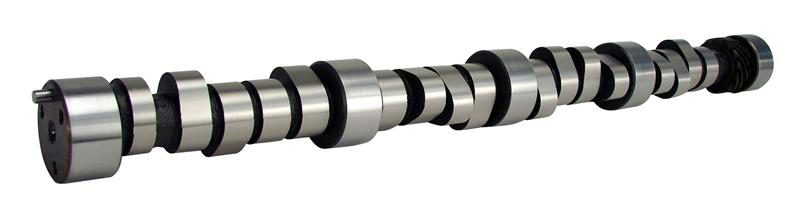

COMP Cams 12-819-9 - Camshaft CS 314Rxd-14
Drag Race 281/296 Solid Roller Cam for Chevrolet Small Block
Large Comp Eliminator or Fast Bracket w/ 1.8 and 1.7.
SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.
Camshaft Series: Drag Race
Usage: Strip
Cam Type: Solid Roller
Grind Number: 314RXD-14
Basic Operating RPM Range: 5,000-9,000
Intake Duration at .050 Inch Lift: 281
Exhaust Duration at .050 inch Lift: 296
Advertised Intake Duration: 314
Advertised Exhaust Duration: 334
Lobe Separation: 114
Intake Valve Lift: 0.873
Exhaust Valve Lift: 0.8
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Lifter Type: Solid Roller
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Amazon ASIN: B001G7CY4G
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 314RXD-14
