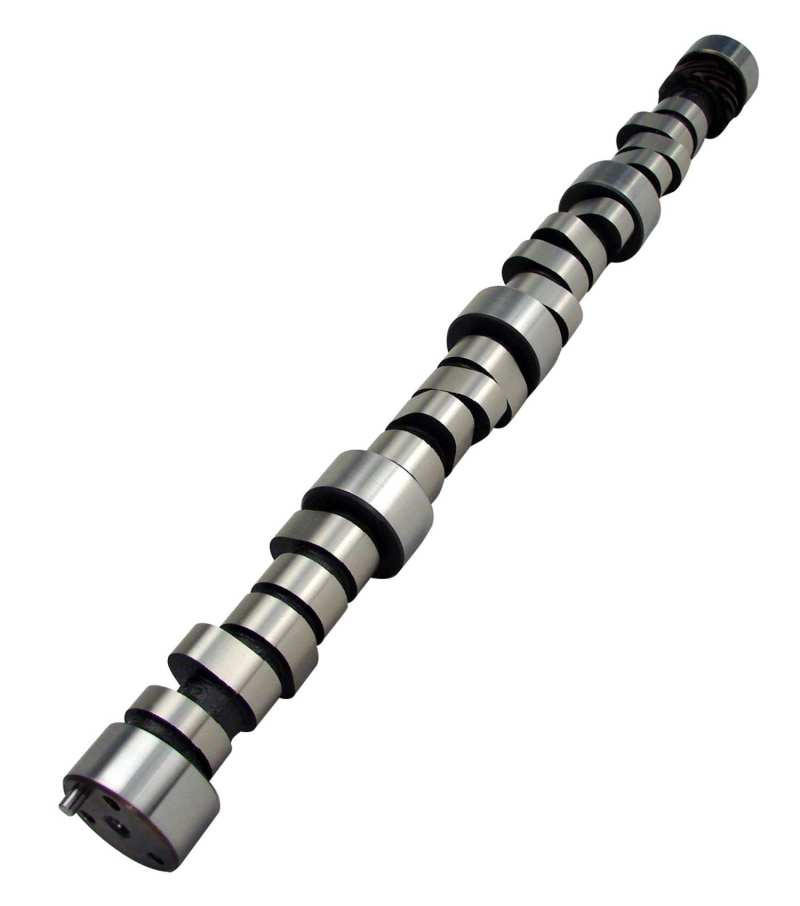

COMP Cams 12-773-8 - Camshaft CS XR292 R-10
Camshaft - Xtreme Energy - Mechanical Roller - Lift 0.582 / 0.588 in - Duration 292 / 297 - 110 LSA - 3200 / 7200 RPM - Small Block Chevy - Each
Best for Pro Street. Needs good intake and exhaust, 11:1+ compression and 3500 stall.
SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order. WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.
Lifter Type: Solid Roller
SK-Kit Upgrade: SK12-773-8
Amazon ASIN: B000V9GBTY
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XR292R
Cam Type: Solid Roller
Grind Number: XR292R
Basic Operating RPM Range: 3200-7,200
Intake Duration at .050 Inch Lift: 254
Usage: Street/Performance
Camshaft Series: Xtreme Energy
Exhaust Duration at .050 inch Lift: 260
Advertised Intake Duration: 292
Advertised Exhaust Duration: 297
Lobe Separation: 110
Intake Valve Lift: 0.582
Exhaust Valve Lift: 0.588
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Cam and Lifter Kit Upgrade: CL12-773-8
K-Kit Upgrade: K12-773-8
