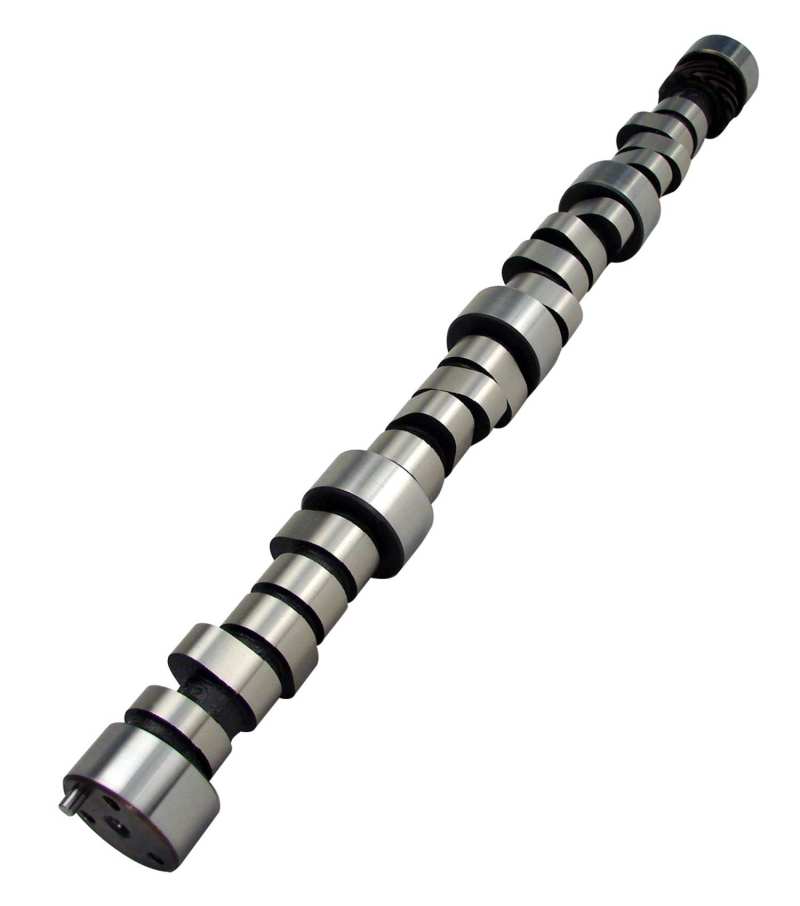

COMP Cams 12-700-8 - Camshaft CS 268A-R10
Camshaft - Magnum - Mechanical Roller - Lift 0.525 / 0.525 in - Duration 268 / 268 - 110 LSA - 2000 / 6000 RPM - Small Block Chevy - Each
Most versatile, good vacuum, excellent throttle response, noticeable idle, works well with stock manifolds and 2000+ stall.
SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order. WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.
Camshaft Series: Magnum
Usage: Street/Strip
Cam Type: Solid Roller
Grind Number: 268AR
Basic Operating RPM Range: 2,000-6,000
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 224
Advertised Intake Duration: 268
Advertised Exhaust Duration: 268
Lobe Separation: 110
Intake Valve Lift: 0.525
Exhaust Valve Lift: 0.525
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Cam and Lifter Kit Upgrade: CL12-700-8
K-Kit Upgrade: K12-700-8
Lifter Type: Solid Roller
SK-Kit Upgrade: SK12-700-8
Amazon ASIN: B001O06018
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 268AR
