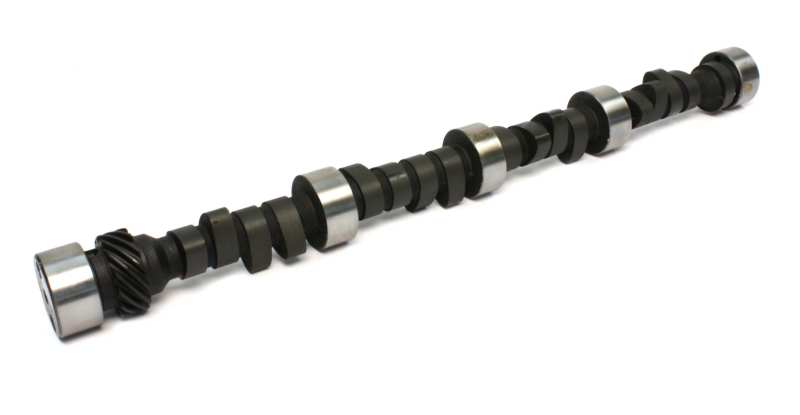

COMP Cams 12-689-47 - Camshaft CS 47S 282Xos-6

COMP Cams  |  SKU: COMP-12-689-47
$32695 $35964

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 12-689-47 - Camshaft CS 47S 282Xos-6

Oval Track 4/7 Swap 252/258 Solid Flat Cam for Chevrolet Small Block

1/4-3/8 tight. 327-358c.i. 12:1+ compression. 4 BBL with good intake and exhaust.

SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

Camshaft Series: Oval Track 4 and 7 Swap Firing Order
Usage: Strip
Cam Type: Solid Flat Tappet
Grind Number: 47S 282XOS-6
Basic Operating RPM Range: 3,000-6700
Intake Duration at .050 Inch Lift: 252
Exhaust Duration at .050 inch Lift: 258
Advertised Intake Duration: 282
Advertised Exhaust Duration: 292
Lobe Separation: 106
Intake Valve Lift: 0.54
Exhaust Valve Lift: 0.537
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Lifter Type: Solid Flat Tappet
Amazon ASIN: B001O0FWB2
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 47S 282XOS-6
