COMP Cams 12-609-5 - Camshaft CS 285B-6

COMP Cams  |  SKU: COMP-12-609-5
$32595 $35854

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

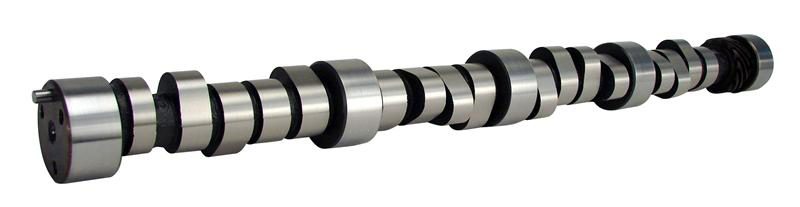

COMP Cams 12-609-5 - Camshaft CS 285B-6

Camshaft - Mechanical Flat Tappet - Lift 0.532 / 0.555 in - Duration 285 / 295 - 106 LSA - 3500 / 6500 RPM - Small Block Chevy - Each

Excellent torque and good idle for 327-350. Needs 10:1 compression and low gears. Great torque, 3800+ stall or 4 speed, 10.5:1 compression. Very versatile cam. Great for 1/4 to 3/8 mile track.

SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

Camshaft Series: Drag Race
Usage: Strip
Cam Type: Solid Flat Tappet
Grind Number: 285B-6
Basic Operating RPM Range: 3,000-6500
Intake Duration at .050 Inch Lift: 250
Exhaust Duration at .050 inch Lift: 260
Advertised Intake Duration: 285
Advertised Exhaust Duration: 285
Lobe Separation: 106
Intake Valve Lift: 0.532
Exhaust Valve Lift: 0.555
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Lifter Type: Solid Flat Tappet
Amazon ASIN: B000CEO7DA
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
Grind Number: 285B-6
