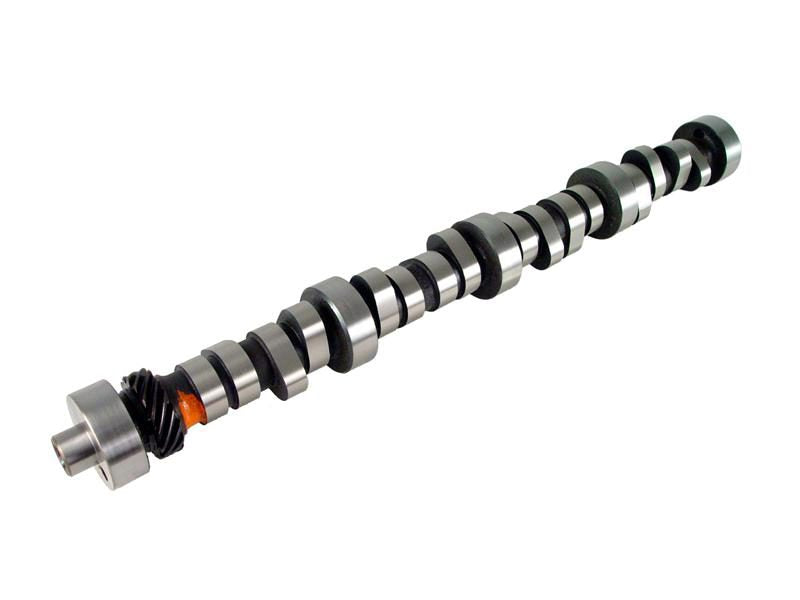

COMP Cams 12-560-4 - Camshaft CS Nx268H-13

COMP Cams 12-560-4 - Camshaft CS Nx268H-13

Camshaft - Nitrous HP - Hydraulic Flat Tappet - Lift 0.477 / 0.490 in - Duration 268 / 286 - 113 LSA - 2000 / 6200 RPM - Small Block Chevy - Each

Street machines with 125+ hp kit, 2200+ stall, gears, choppy idle.

Fits '58-'02 262-400 c.i.d. Chevy Small Blocks

Street machines with 125+ HP nitrous - 2200+ stall, Gears - Choppy idle

Xtreme Energyâ„¢ Cams are designed to maximize torque, acceleration and throttle response while providing excellent high RPM horsepower. A faster intake valve opening increases engine vacuum and enhances throttle response. Special intake closing ramps close the valve sooner, providing more cylinder pressure and torque without resulting in excessive valve train noise. Faster ramps achieve maximum velocity sooner, increasing the area under the lift curve and providing maximum horsepower. Smoother exhaust designs allow for a more effective purge of spent gasses from the combustion chamber to further increase horsepower.

For Carb or Tunable Fuel Injection3

1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for Roller lifters. Most '87 - '93 GM cars came with Roller lifters, but most '87 - '95 trucks came with flat tappet lifters in Roller lifter style blocks. If a Roller Cam is desired and your block has OEM-style Roller Cam provisions. COMP Hydraulic Roller Lifter Install Kit for '87-'90 Blocks or '91-'02 Blocks can be purchased, as well as a '87+ OE-Style Hydraulic Roller Cam.
