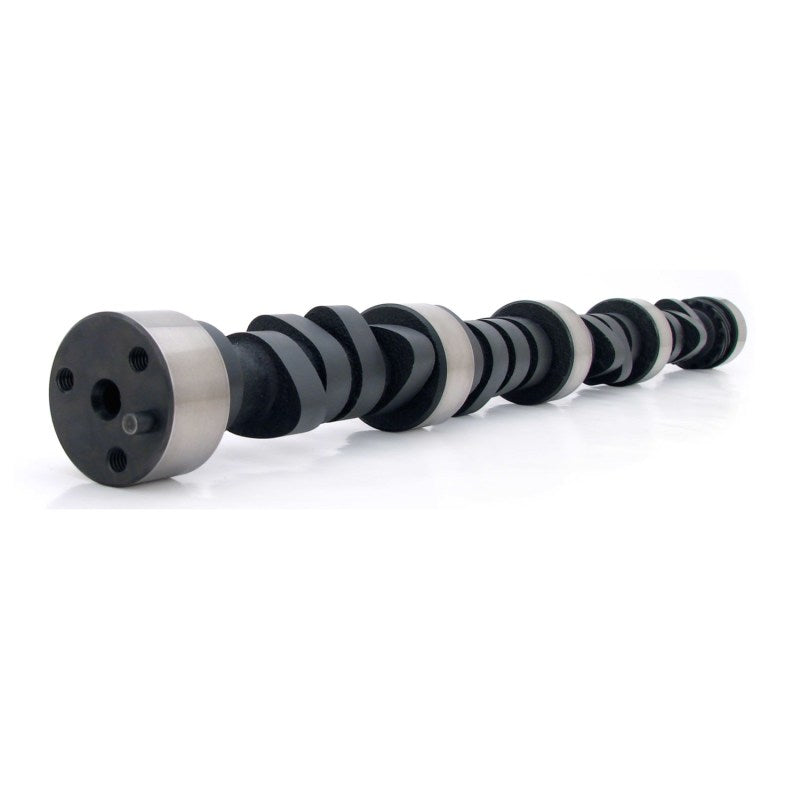

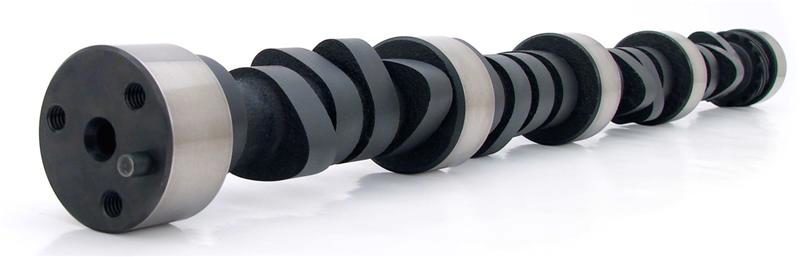

COMP Cams 12-515-20 - Nitrided Camshaft CS 288TLS-6
Drag Race/Tight Lash NIT 259/266 Solid Flat Cam for Chevrolet Small Block
Best on big 3/8-1/2 mile tracks with high RPM. Great with open rules and large c.i. engines. Nitrided.
Drag Race/Tight Lash NIT 259/266 Solid Flat Cam for Chevrolet Small Block
Intake Valve Lift: 0.55
Exhaust Valve Lift: 0.57
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Nitrided Cast Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Lifter Type: Solid Flat Tappet
Amazon ASIN: B002EDXBUW
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 288TLS-6
Camshaft Series: Tight Lash
Usage: Strip
Cam Type: Solid Flat Tappet
Grind Number: 288TLS-6
Basic Operating RPM Range: 3500-7,500
Intake Duration at .050 Inch Lift: 259
Exhaust Duration at .050 inch Lift: 266
Advertised Intake Duration: 288
Advertised Exhaust Duration: 296
Lobe Separation: 106
