COMP Cams 12-468-8 - Camshaft CS 292XFI HR-13

COMP Cams  |  SKU: COMP-12-468-8
$57795 $63574
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

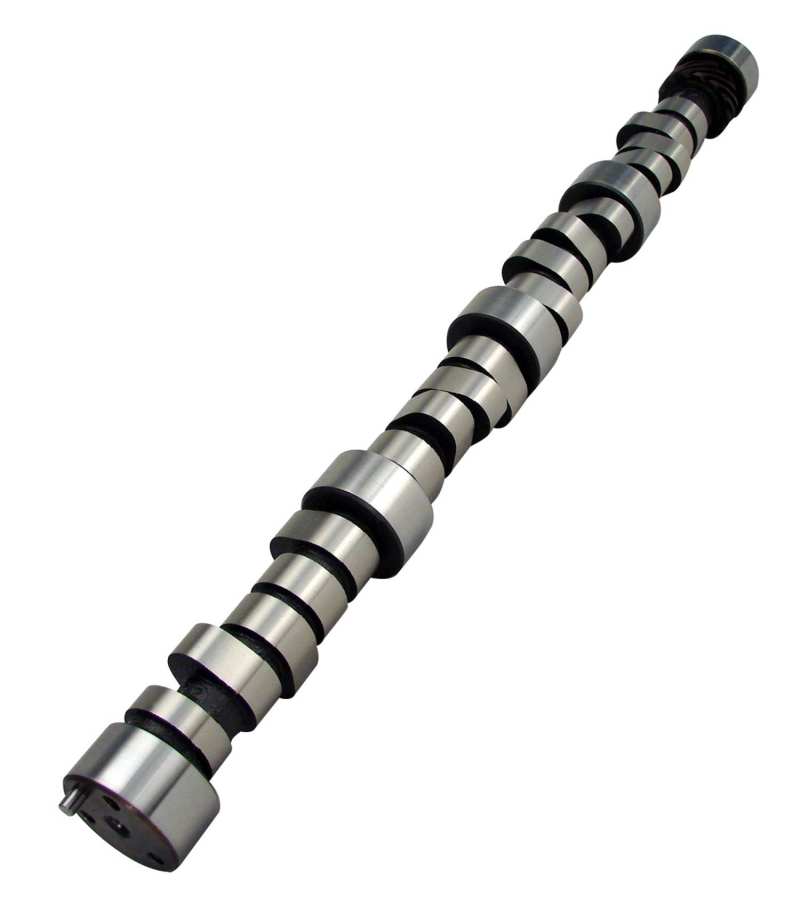

COMP Cams 12-468-8 - Camshaft CS 292XFI HR-13

Camshaft - Extreme Fuel Injection - Hydraulic Roller - Lift 0.584 / 0.579 in - Duration 292 / 300 - 113 LSA - 2200 / 6200 RPM - Small Block Chevy - Each

Street/strip. Best at wide-open throttle. Need all upgrades with 2600+ converter. 9.5:1 compression.

Provide a terrific increase in performance - Tuned for use in EFI Applications where extra air flow signal through the carburetor is not required (feature wider lobe separation with o loss of responsiveness) - Work well with aftermarket cylinder heads and feature high lift

  • WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.
    • 1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for Roller lifters. Most '87 - '93 GM cars came with Roller lifters, but most '87 - '95 trucks came with flat tappet lifters in Roller lifter style blocks. If your block has '87+ OEM-style Roller Cam provisions but does not have Roller components fitted, COMP Hydraulic Roller Lifter Install Kit for '91-'02 Blocks can be purchased. As well as a '87+ OE-Style COMP Hydraulic Roller Cam.
    Camshaft Series: XFI
    Usage: Street/Performance
    Cam Type: Hydraulic Roller
    Grind Number: 292XFI HR-13
    Basic Operating RPM Range: 2,200-6,200
    Intake Duration at .050 Inch Lift: 242
    Exhaust Duration at .050 inch Lift: 248
    Advertised Intake Duration: 292
    Advertised Exhaust Duration: 300
    Lobe Separation: 113
    Intake Valve Lift: 0.584
    Exhaust Valve Lift: 0.579
    Lifters Included: No
    Valve Springs Required: Yes
    Assembly Lubricant Included: No
    Camshaft Gear Attachment: 3-Bolt
    Camshaft Material: Austempered Ductile Iron
    Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
    Cam and Lifter Kit Upgrade: CL12-468-8
    K-Kit Upgrade: K12-468-8
    Lifter Type: Hydraulic Roller
    SK-Kit Upgrade: SK12-468-8
    Amazon ASIN: B001G7BMD0
    C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
    C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for On-Road Vehicles?: No
    C.A.R.B. Exemption Reason: N/A
    C.A.R.B. E.O. Number: N/A
    Grind Number: 292XFI HR-13
