COMP Cams 12-413-8 - Camshaft CS X4 270HR-11

COMP Cams  |  SKU: COMP-12-413-8
$57795 $63574
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

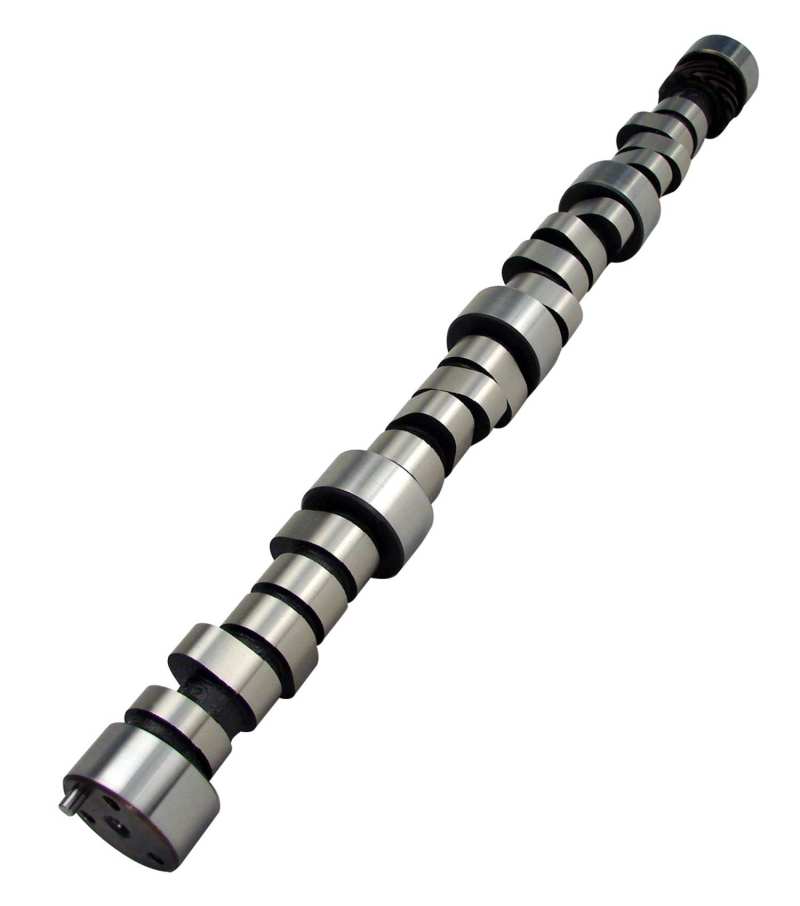

COMP Cams 12-413-8 - Camshaft CS X4 270HR-11

Camshaft - Xtreme 4x4 - Hydraulic Roller - Lift 0.474 / 0.474 in - Duration 270 / 274 - 111 LSA - 1500 / 5500 RPM - Small Block Chevy - Each

Good mid-range power, needs headers, 3.55-4.10 gears, 2000+ stall. Noticeable idle.

Fits '58-'02 262-400 c.i.d. Chevy Small Blocks

  • Good mid-range power - Needs headers, 3.55-4.10 Gears, 2000+ stall - Noticeable idle
  • Xtreme 4X4â„¢ -Due to the allowances of lower engine speed, these designs are slightly more aggressive than the original Xtreme Energyâ„¢ Hydraulic Rollers. Great low and mid-range torque. They are one of our most aggressive hydraulic Roller lobes and run well in street, off-road and four-wheeling.
  • WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.
    • 1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for Roller lifters. Most '87 - '93 GM cars came with Roller lifters, but most '87 - '95 trucks came with flat tappet lifters in Roller lifter style blocks. If your block has '87+ OEM-style Roller Cam provisions but does not have Roller components fitted, COMP Hydraulic Roller Lifter Install Kit for '91-'02 Blocks can be purchased. As well as a '87+ OE-Style COMP Hydraulic Roller Cam.
    Camshaft Series: Xtreme 4x4
    Usage: Street/Performance
    Cam Type: Hydraulic Roller
    Grind Number: X4270HR
    Basic Operating RPM Range: 1,500-5,500
    Intake Duration at .050 Inch Lift: 220
    Exhaust Duration at .050 inch Lift: 224
    Advertised Intake Duration: 270
    Advertised Exhaust Duration: 274
    Lobe Separation: 111
    Intake Valve Lift: 0.474
    Exhaust Valve Lift: 0.474
    Lifters Included: No
    Valve Springs Required: Yes
    Assembly Lubricant Included: No
    Camshaft Gear Attachment: 3-Bolt
    Camshaft Material: Austempered Ductile Iron
    Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
    Cam and Lifter Kit Upgrade: CL12-413-8
    K-Kit Upgrade: K12-413-8
    Lifter Type: Hydraulic Roller
    SK-Kit Upgrade: SK12-413-8
    Amazon ASIN: B000P5B77U
    C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
    C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for On-Road Vehicles?: No
    C.A.R.B. Exemption Reason: N/A
    C.A.R.B. E.O. Number: N/A
    Grind Number: X4270HR
