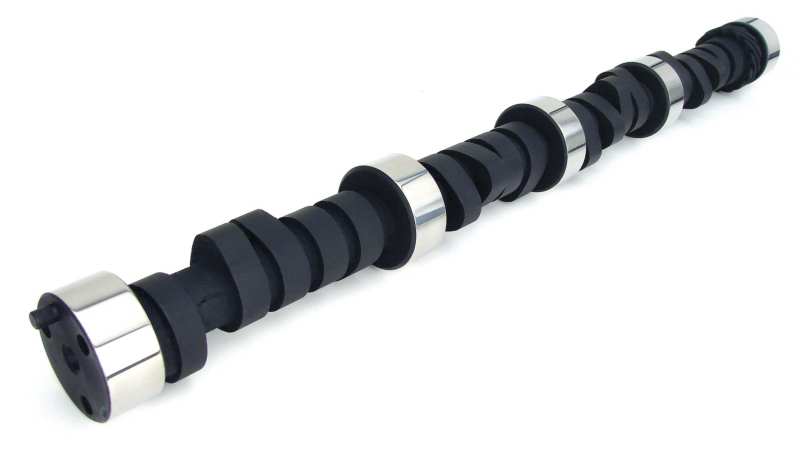

COMP Cams 12-342-4 - Camshaft CS 296Ah-8

COMP Cams  |  SKU: COMP-12-342-4
$30995 $34094

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 12-342-4 - Camshaft CS 296Ah-8

Drag Race 246/253 Hydraulic Flat Cam for Chevrolet Small Block

10.5:1+ compression, 3500+ stall, good torque.

Fits '58-'02 262-400 c.i.d. Chevy Small Blocks

  • 10.5:1+ compression - 3500+ stall - Good torque
    • 1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for Roller lifters. Most '87 - '93 GM cars came with Roller lifters, but most '87 - '95 trucks came with flat tappet lifters in Roller lifter style blocks. If a Roller Cam is desired and your block has OEM-style Roller Cam provisions. COMP Hydraulic Roller Lifter Install Kit for '87-'90 Blocks or '91-'02 Blocks can be purchased, as well as a '87+ OE-Style Hydraulic Roller Cam.
    Camshaft Series: Drag Race
    Usage: Strip
    Cam Type: Hydraulic Flat Tappet
    Grind Number: 296AH-8
    Basic Operating RPM Range: 3,000-6800
    Intake Duration at .050 Inch Lift: 246
    Exhaust Duration at .050 inch Lift: 253
    Advertised Intake Duration: 296
    Advertised Exhaust Duration: 305
    Lobe Separation: 108
    Intake Valve Lift: 0.51
    Exhaust Valve Lift: 0.507
    Lifters Included: No
    Valve Springs Required: Yes
    Assembly Lubricant Included: Yes
    Camshaft Gear Attachment: 3-Bolt
    Camshaft Material: Cast Iron
    Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
    Lifter Type: Hydraulic Flat Tappet
    Amazon ASIN: B001O09YF2
    C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
    C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for On-Road Vehicles?: No
    C.A.R.B. Exemption Reason: N/A
    C.A.R.B. E.O. Number: N/A
    Grind Number: 296AH-8
