COMP Cams 12-254-20 - Nitrided Camshaft CS XE294H-1

COMP Cams  |  SKU: COMP-12-254-20
$44899 $49389

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

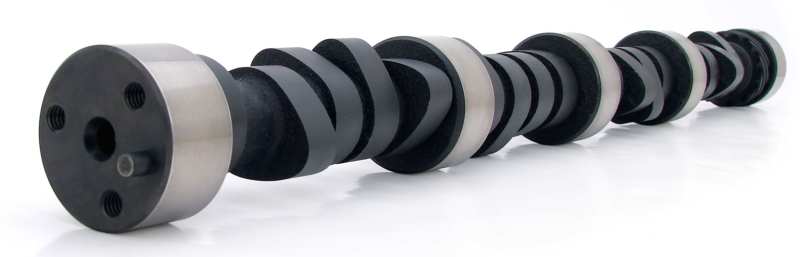

COMP Cams 12-254-20 - Nitrided Camshaft CS XE294H-1

Xtreme Energy NIT 250/256 Hydraulic Flat Cam for Chevrolet Small Block

Pro Street/bracket, needs good intake, headers, gear and 3300+ stall. Nitrided.

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

Camshaft Series: Xtreme Energy
Usage: Street/Strip
Cam Type: Hydraulic Flat Tappet
Grind Number: XE294H
Basic Operating RPM Range: 2,800-7000
Intake Duration at .050 Inch Lift: 250
Exhaust Duration at .050 inch Lift: 256
Advertised Intake Duration: 294
Advertised Exhaust Duration: 306
Lobe Separation: 110
Intake Valve Lift: 0.519
Exhaust Valve Lift: 0.523
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Nitrided Cast Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Lifter Type: Hydraulic Flat Tappet
Amazon ASIN: B002EE2FYY
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
