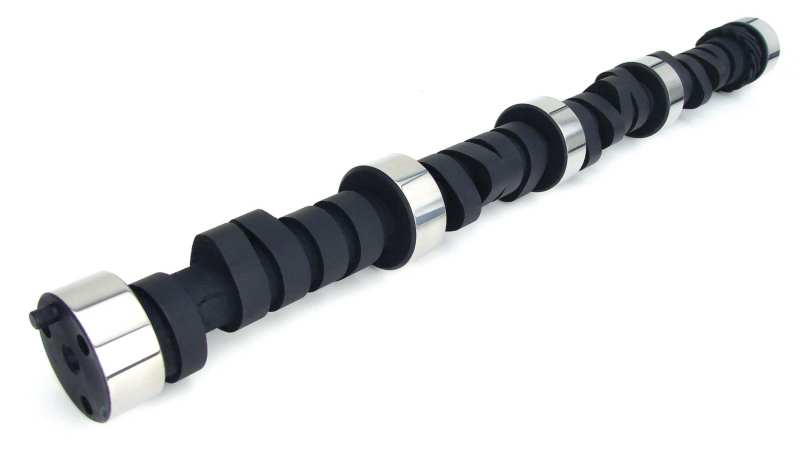

COMP Cams 12-242-2 - Camshaft CS XE268H-10

COMP Cams  |  SKU: COMP-12-242-2
$29395 $32334

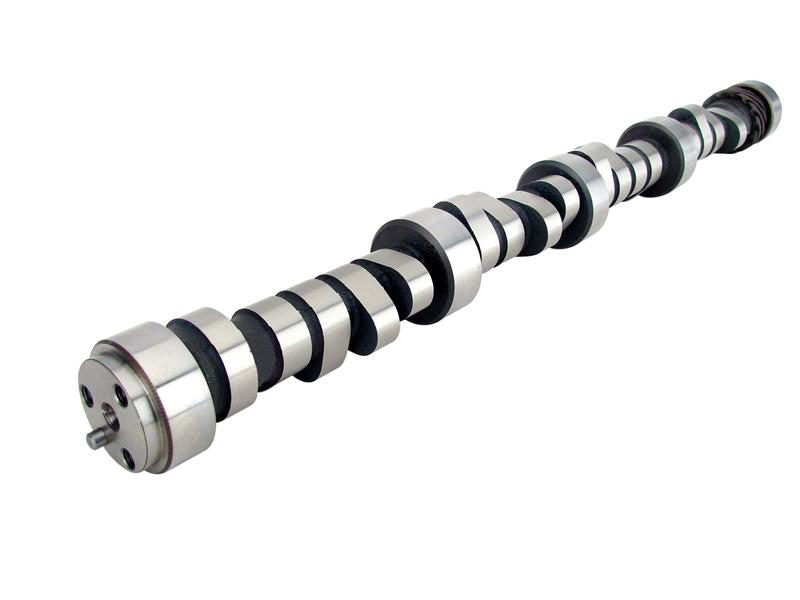

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 12-242-2 - Camshaft CS XE268H-10

Camshaft - Xtreme Energy - Hydraulic Flat Tappet - Lift 0.477 / 0.480 in - Duration 268 / 280 - 110 LSA - 1600 / 5800 RPM - Small Block Chevy - Each

Great for street machines, largest cam for stock converter, better with 2000+ stall.

excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-242-2 Designation: XE268H-10. Duration @ 0.006": 268 / 280deg. Duration @ 0.050": 224 / 230deg. Max Lift w/ 1.5RR: .477" / .480" Lobe Separation: 110deg. Lobe ID#'s: 5443 / 5203. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block Bore: 4.040" Stroke: 3.480" Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R Intake: Edelbrock Performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 413 ft/lbs @ 3800 RPM. Max Power: 342 HP @ 5000 RPM. Manifold Vacuum:15.5" Hg @ 800 RPM & 17" Hg @ 1000 RPM w/ no load.

Exhaust Valve Lift: 0.48
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Cam and Lifter Kit Upgrade: CL12-242-2
K-Kit Upgrade: K12-242-2
Lifter Type: Hydraulic Flat Tappet
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
Amazon ASIN: B000CIQ7EI
SK-Kit Upgrade: SK12-242-2
Grind Number: XE268H
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Hydraulic Flat Tappet
Grind Number: XE268H
Basic Operating RPM Range: 1,600-5,800
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 230
Advertised Intake Duration: 268
Advertised Exhaust Duration: 280
Lobe Separation: 110
Intake Valve Lift: 0.477
