COMP Cams 11-715-9 - Camshaft CB 296C-R8

COMP Cams  |  SKU: COMP-11-715-9
$56699 $62369
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

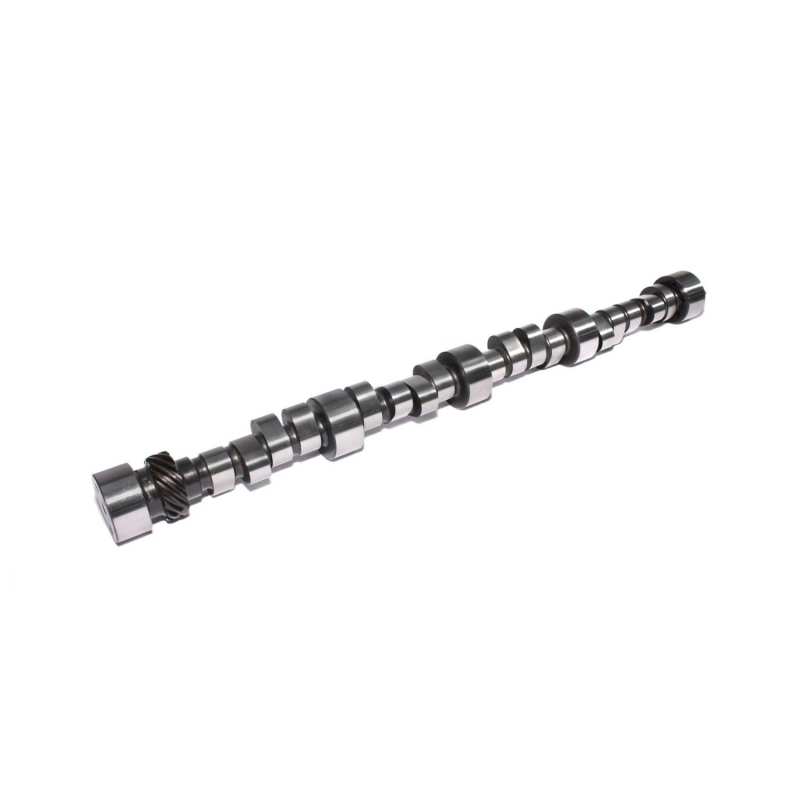

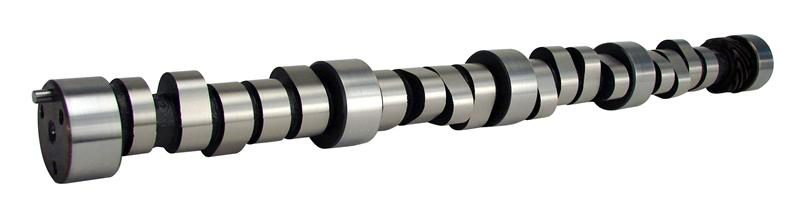

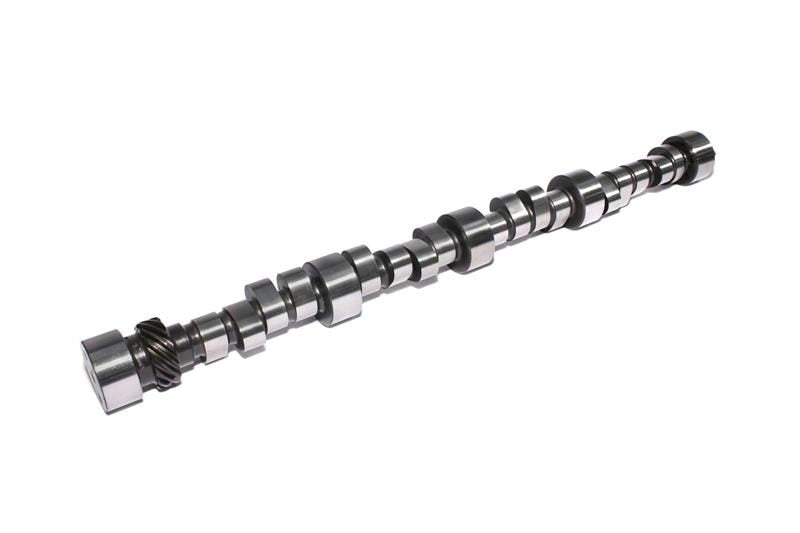

COMP Cams 11-715-9 - Camshaft CB 296C-R8

Camshaft - Drag Race - Mechanical Roller - Lift 0.714 / 0.714 in - Duration 296 / 304 - 108 LSA - 3500 / 6500 RPM - Big Block Chevy - Each

Works good in 396-427c.i. with 4000+ stall, 11:1+ compression.

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order. WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.

Camshaft Series: Drag Race
Usage: Strip
Cam Type: Solid Roller
Grind Number: 296CR-8
Basic Operating RPM Range: 3,500-6,500
Intake Duration at .050 Inch Lift: 262
Exhaust Duration at .050 inch Lift: 270
Advertised Intake Duration: 296
Advertised Exhaust Duration: 304
Lobe Separation: 108
Intake Valve Lift: 0.714
Exhaust Valve Lift: 0.714
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Lifter Type: Solid Roller
Amazon ASIN: B000P5D7BE
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 296CR-8
