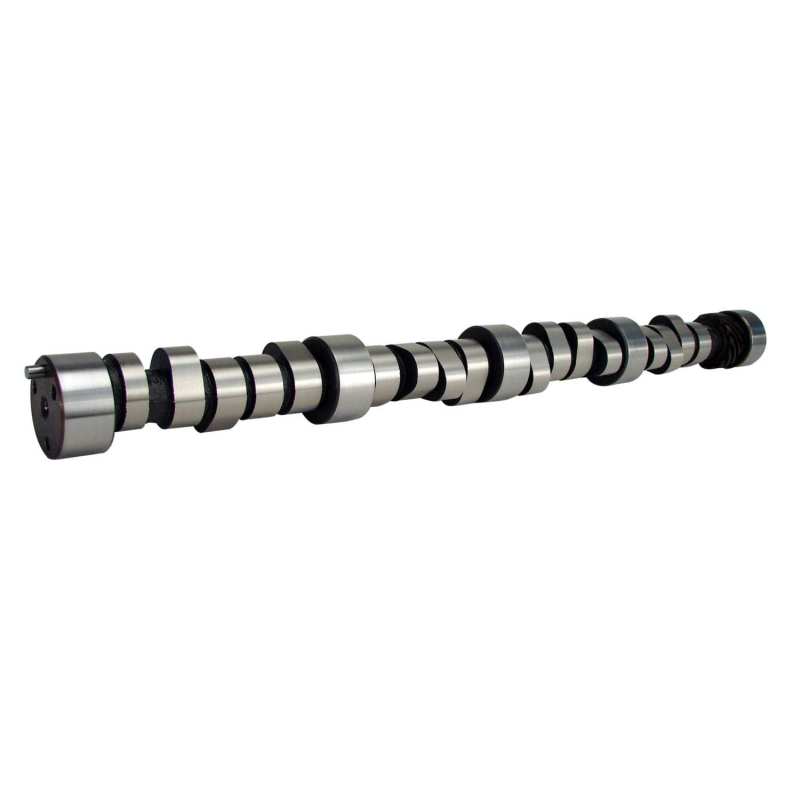

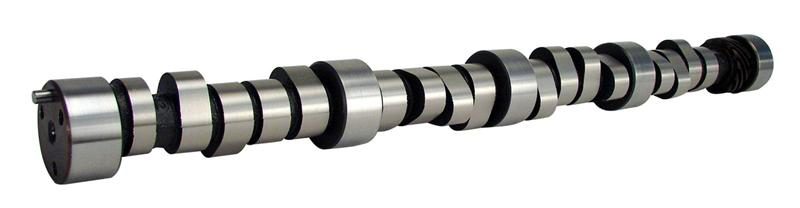

COMP Cams 11-694-8 - Camshaft CB 300BR-14
Camshaft - Blower and Turbo - Mechanical Roller - Lift 0.652 / 0.652 in - Duration 300 / 308 - 114 LSA - 3500 / 7000 RPM - Big Block Chevy - Each
Best for Pro Street and bracket racing with 671 or larger blower.
BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order. WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.
Camshaft Series: Blower
Usage: Street/Performance
Cam Type: Solid Roller
Grind Number: 300BR-14
Basic Operating RPM Range: 3500-7,000
Intake Duration at .050 Inch Lift: 255
Exhaust Duration at .050 inch Lift: 262
Advertised Intake Duration: 300
Advertised Exhaust Duration: 308
Lobe Separation: 114
Intake Valve Lift: 0.652
Exhaust Valve Lift: 0.652
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Cam and Lifter Kit Upgrade: CL11-694-8
K-Kit Upgrade: K11-694-8
Lifter Type: Solid Roller
SK-Kit Upgrade: SK11-694-8
Amazon ASIN: B001P22TAG
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 300BR-14
