COMP Cams 11-681-47 - Camshaft CB 47S Tl292A-8
COMP Cams | SKU:
COMP-11-681-47
Sale price
$37695
Regular price
$41464
Unit price
/
Unavailable
$37.69 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

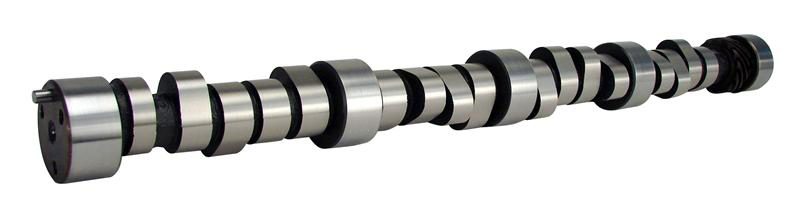

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

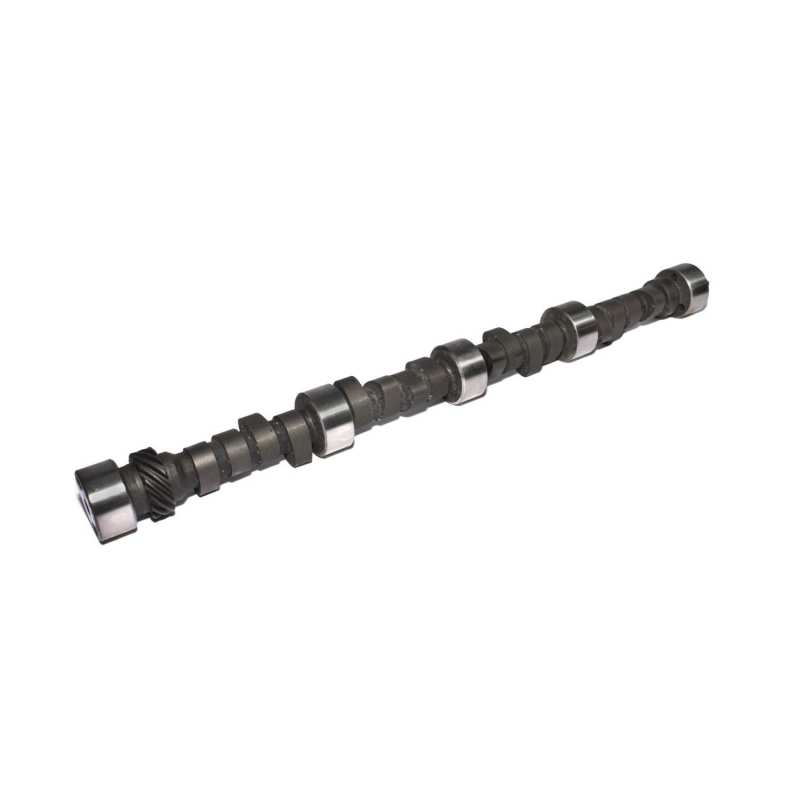

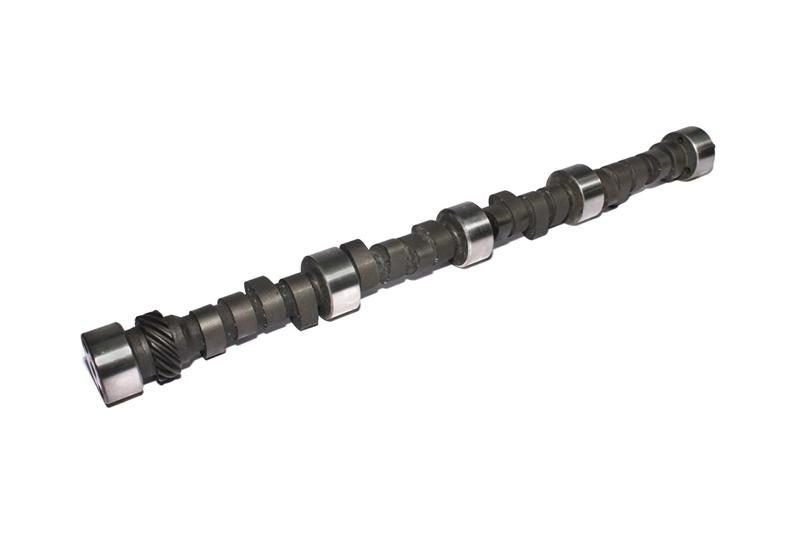

COMP Cams 11-681-47 - Camshaft CB 47S Tl292A-8
Drag Race 4/7 Swap 262/270 Solid Flat Cam for Chevrolet Big Block 396-454
427+ engines, 4000+ stall, 11:1+ compression.
BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 47S TL292A
Camshaft Series: Drag Race 4 and 7 Swap Firing Order
Usage: Strip
Cam Type: Solid Flat Tappet
Grind Number: 47S TL292A
Basic Operating RPM Range: 3600-6,800
Intake Duration at .050 Inch Lift: 262
Exhaust Duration at .050 inch Lift: 270
Advertised Intake Duration: 292
Advertised Exhaust Duration: 308
Lobe Separation: 108
Intake Valve Lift: 0.635
Exhaust Valve Lift: 0.637
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Lifter Type: Solid Flat Tappet
Amazon ASIN: B000P5B6DU
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
