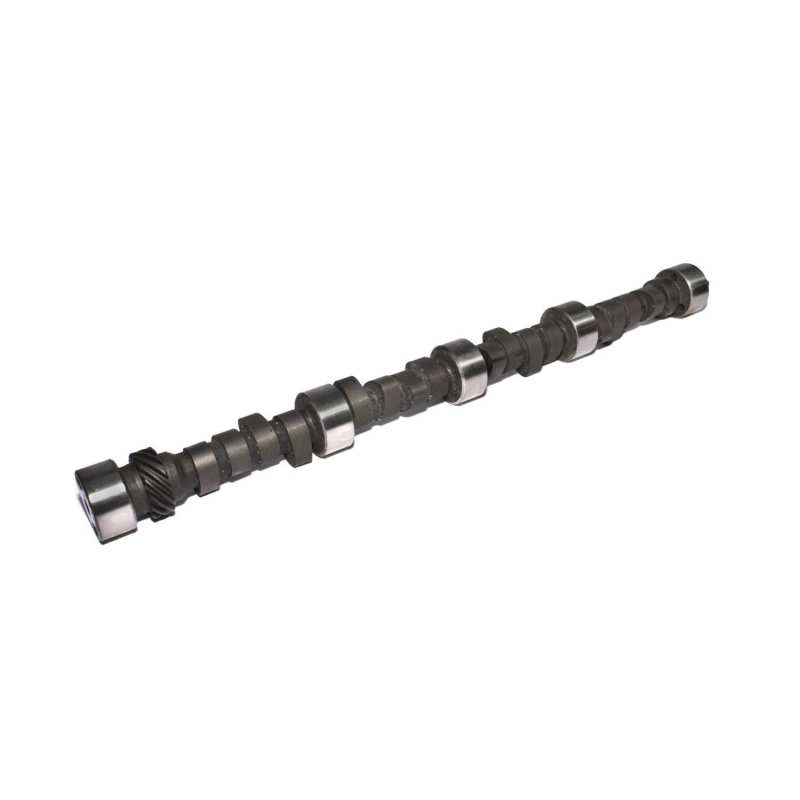

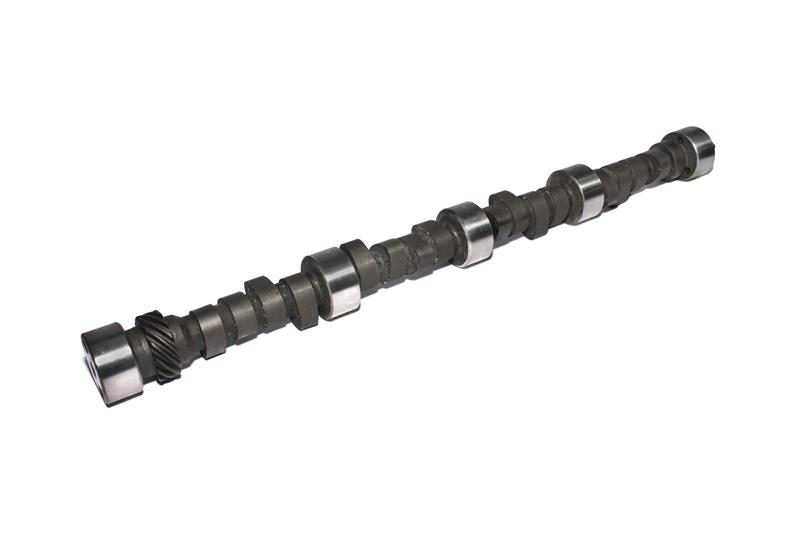

COMP Cams 11-652-47 - Camshaft CB 47S XE294H-10

COMP Cams  |  SKU: COMP-11-652-47
$36899 $40589

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 11-652-47 - Camshaft CB 47S XE294H-10

Xtreme Energy 4/7 Swap 250/256 Hydraulic Flat Cam Chevrolet Big Block 396-454

Pro Street/bracket, needs good intake, headers, gear and 3200+ stall.

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE294H-10
Camshaft Series: Xtreme Energy 4 and 7 Swap Firing Order
Usage: Street/Performance
Cam Type: Hydraulic Flat Tappet
Grind Number: XE294H-10
Basic Operating RPM Range: 2,800-7000
Intake Duration at .050 Inch Lift: 250
Exhaust Duration at .050 inch Lift: 256
Advertised Intake Duration: 294
Advertised Exhaust Duration: 306
Lobe Separation: 110
Intake Valve Lift: 0.588
Exhaust Valve Lift: 0.593
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Lifter Type: Hydraulic Flat Tappet
Amazon ASIN: B001G7A8XK
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
