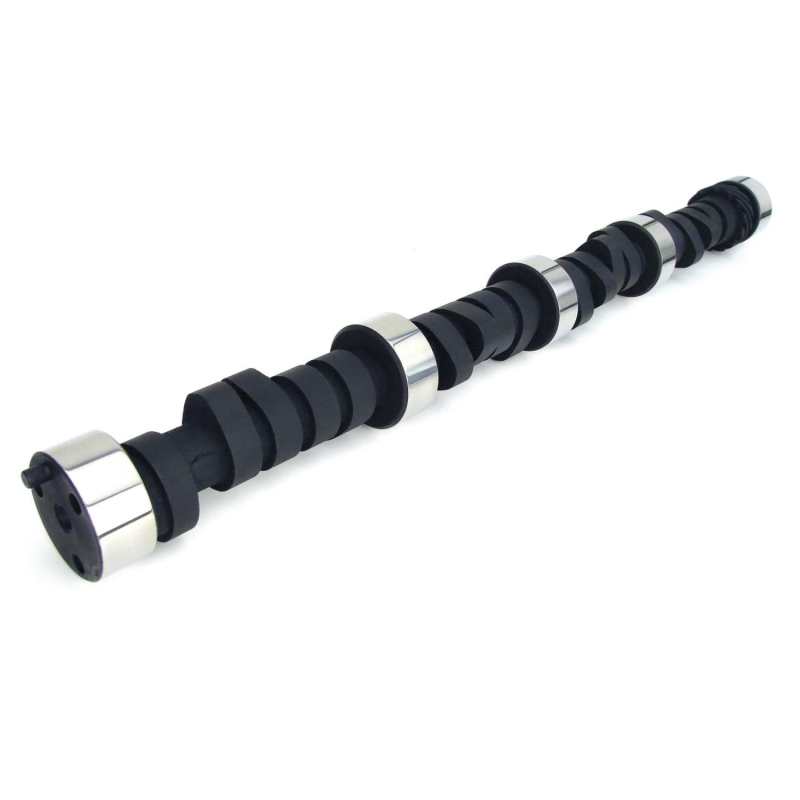

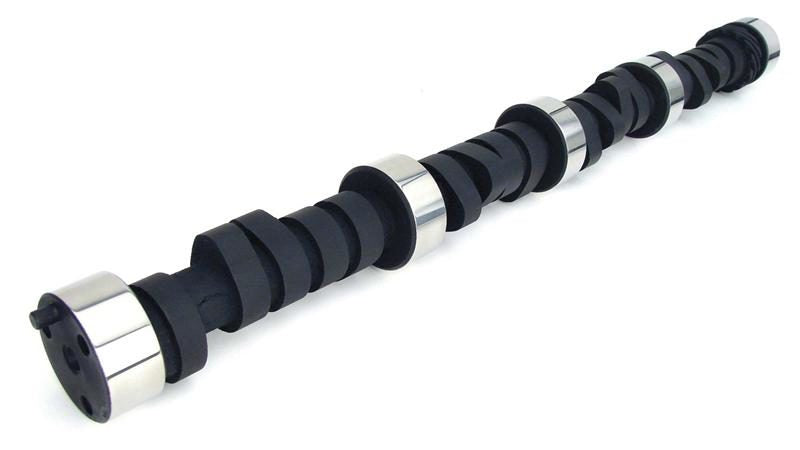

COMP Cams 11-568-4 - Camshaft CB Nx 284H-13

COMP Cams  |  SKU: COMP-11-568-4
$31099 $34209

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

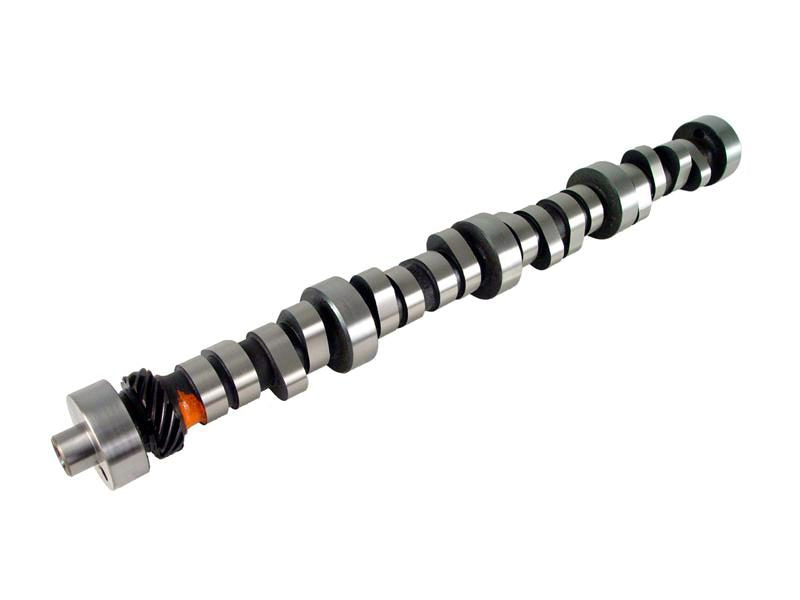

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 11-568-4 - Camshaft CB Nx 284H-13

Camshaft - Nitrous HP - Hydraulic Flat Tappet - Lift 0.575 / 0.595 in - Duration 284 / 305 - 113 LSA - 2800 / 6800 RPM - Big Block Chevy - Each

Pro Street applications w/ multi-stage nitrous kits, 671 blower or Vortec Supercharger and 3000+ stall.

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

Grind Number: NX284H
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Camshaft Series: Nitrous HP
Usage: Street/Strip
Cam Type: Hydraulic Flat Tappet
Grind Number: NX284H
Basic Operating RPM Range: 2,800-6800
Intake Duration at .050 Inch Lift: 240
Exhaust Duration at .050 inch Lift: 253
Advertised Intake Duration: 284
Advertised Exhaust Duration: 305
Lobe Separation: 113
Intake Valve Lift: 0.575
Exhaust Valve Lift: 0.595
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Cam and Lifter Kit Upgrade: CL11-568-4
K-Kit Upgrade: K11-568-4
Lifter Type: Hydraulic Flat Tappet
SK-Kit Upgrade: SK11-568-4
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
Amazon ASIN: B000P5G52C
