COMP Cams 11-564-4 - Camshaft CB Nx 274H-13
COMP Cams | SKU:
COMP-11-564-4
Sale price
$32399
Regular price
$35639
Unit price
/
Unavailable
$32.40 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

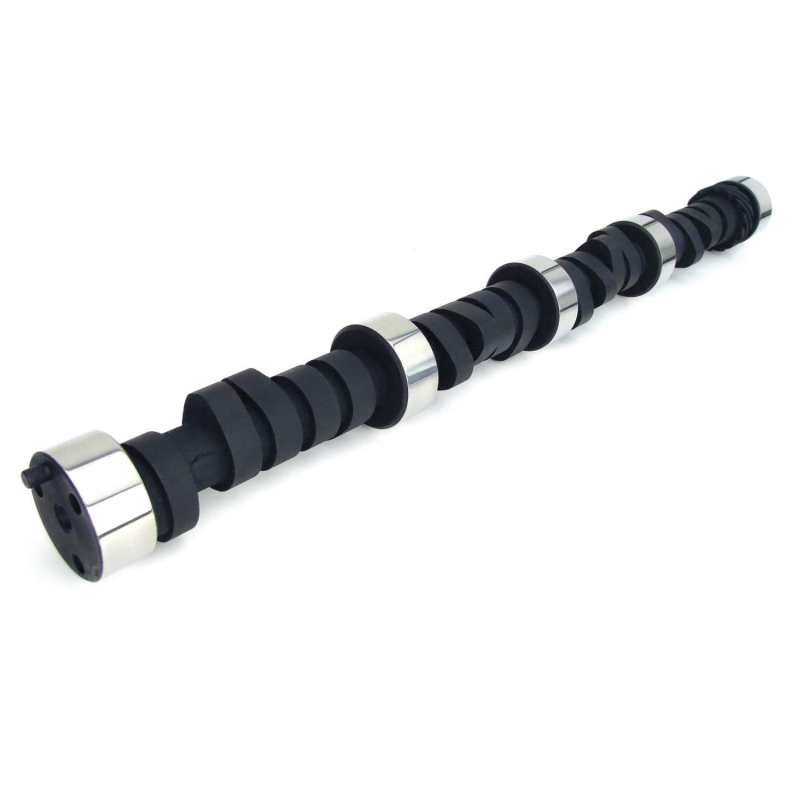

COMP Cams 11-564-4 - Camshaft CB Nx 274H-13
Nitrous HP 230/244 Hydraulic Flat Cam for Chevrolet Big Block 396-454
Need Info
Exhaust Duration at .050 inch Lift: 244
Advertised Intake Duration: 274
Advertised Exhaust Duration: 292
Lobe Separation: 113
Intake Valve Lift: 0.551
Exhaust Valve Lift: 0.568
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Cam and Lifter Kit Upgrade: CL11-564-4
K-Kit Upgrade: K11-564-4
Lifter Type: Hydraulic Flat Tappet
SK-Kit Upgrade: SK11-564-4
Amazon ASIN: B001O07DH8
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Usage: Street/Strip
Cam Type: Hydraulic Flat Tappet
Basic Operating RPM Range: 2,000-6,500
Intake Duration at .050 Inch Lift: 230
