COMP Cams 11-324-5 - Camshaft, Cb 292Ah-10
COMP Cams | SKU:
COMP-11-324-5
Sale price
$34195
Regular price
$37614
Unit price
/
Unavailable
$34.19 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

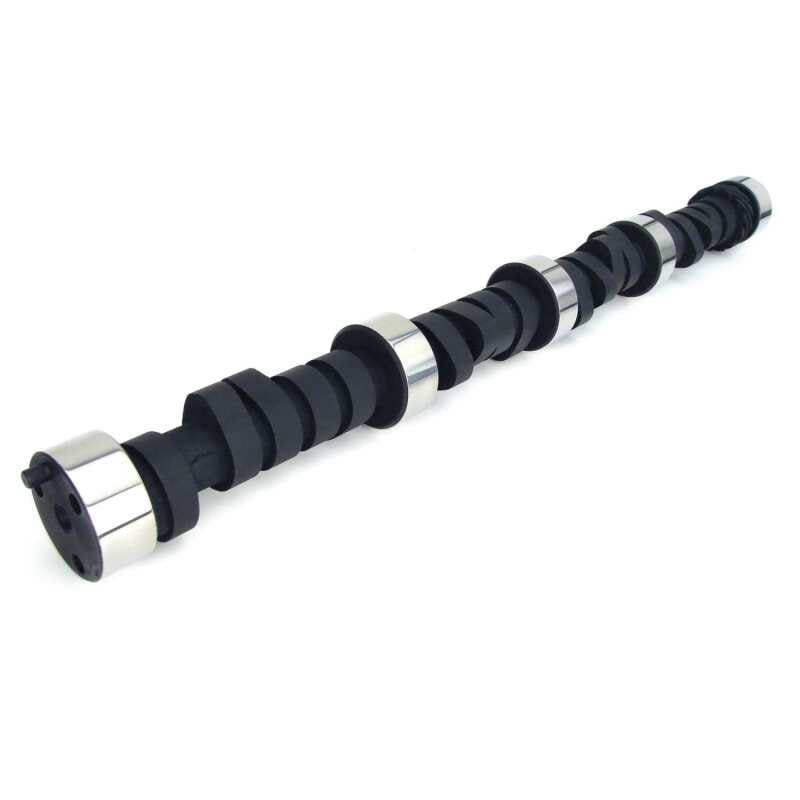

COMP Cams 11-324-5 - Camshaft, Cb 292Ah-10
Camshaft - Marine - Hydraulic Flat Tappet - Lift 0.568 / 0.578 in - Duration 292 / 296 - 110 LSA - 2500 / 6500 RPM - Big Block Chevy - Each
Jet boat with A or B impeller. Bracket racing or high performance use.
Marine 244/246 Hydraulic Flat Cam for Chevrolet Big Block 396-454
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
SK-Kit Upgrade: SK11-324-5
Cam and Lifter Kit Upgrade: CL11-324-5
Lifter Type: Hydraulic Flat Tappet
K-Kit Upgrade: K11-324-5
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 292AH
Camshaft Series: Marine
Usage: Marine
Cam Type: Hydraulic Flat Tappet
Grind Number: 292AH
Basic Operating RPM Range: 2,500-6,500
Intake Duration at .050 Inch Lift: 244
Exhaust Duration at .050 inch Lift: 246
Advertised Intake Duration: 292
Advertised Exhaust Duration: 296
Lobe Separation: 110
Intake Valve Lift: 0.568
Exhaust Valve Lift: 0.578
Lifters Included: No
