COMP Cams 11-246-20 - Nitrided Camshaft CB XE274H-1
COMP Cams | SKU:
COMP-11-246-20
Sale price
$45899
Regular price
$50489
Unit price
/
Unavailable
$45.90 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

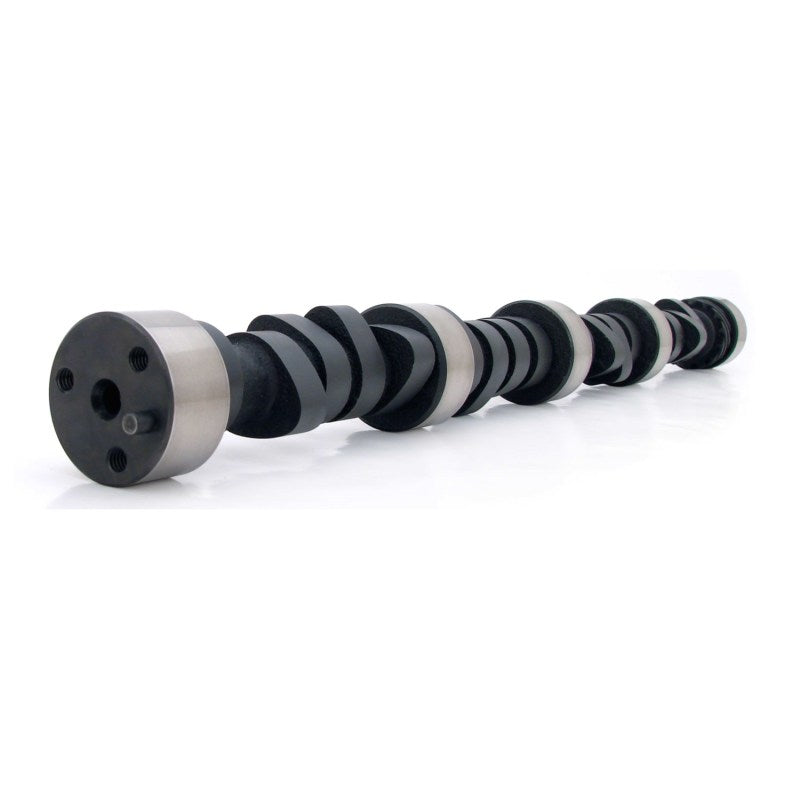

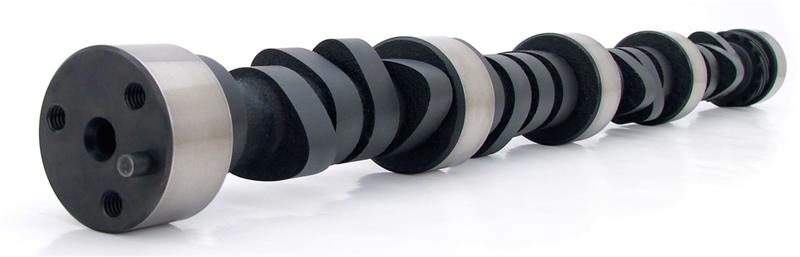

COMP Cams 11-246-20 - Nitrided Camshaft CB XE274H-1
Xtreme Energy NIT 230/236 Hydraulic Flat Cam for Chevrolet Big Block 396-454
High performance street, very strong mid-range, with headers and 2200+ stall. Nitrided.
Camshaft Series: Xtreme Energy
Usage: Street/Strip
Cam Type: Hydraulic Flat Tappet
Grind Number: XE274H
Basic Operating RPM Range: 1,800-6,000
Intake Duration at .050 Inch Lift: 230
Exhaust Duration at .050 inch Lift: 236
Advertised Intake Duration: 274
Advertised Exhaust Duration: 286
Lobe Separation: 110
Intake Valve Lift: 0.552
Exhaust Valve Lift: 0.555
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Nitrided Cast Iron
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Lifter Type: Hydraulic Flat Tappet
Amazon ASIN: B002EDX5XA
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
