COMP Cams 11-242-20 - Nitrided Camshaft CB XE268H-1
COMP Cams | SKU:
COMP-11-242-20
Sale price
$42899
Regular price
$47189
Unit price
/
Unavailable
$42.90 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

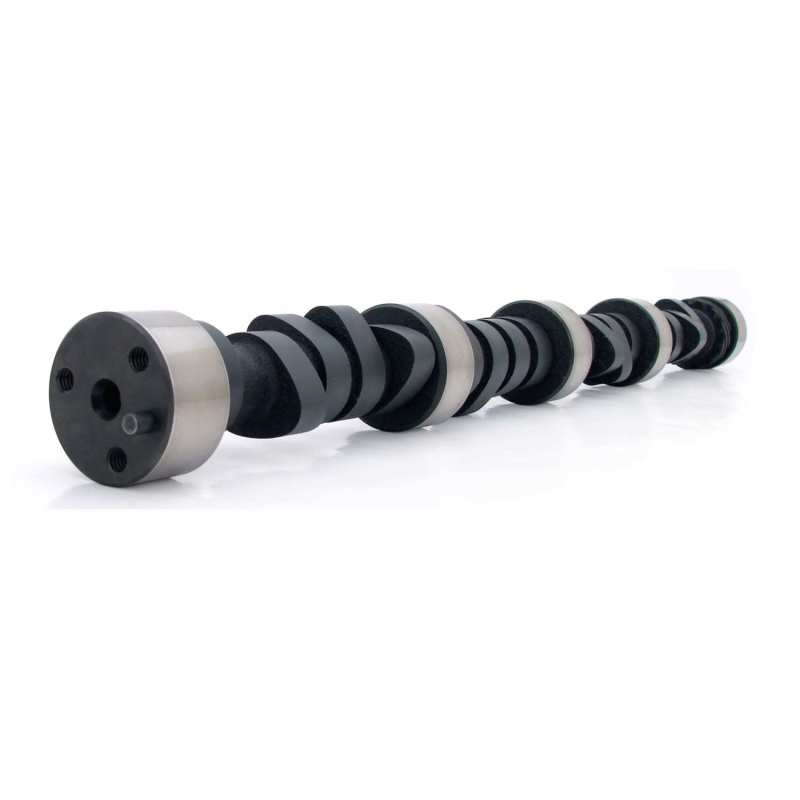

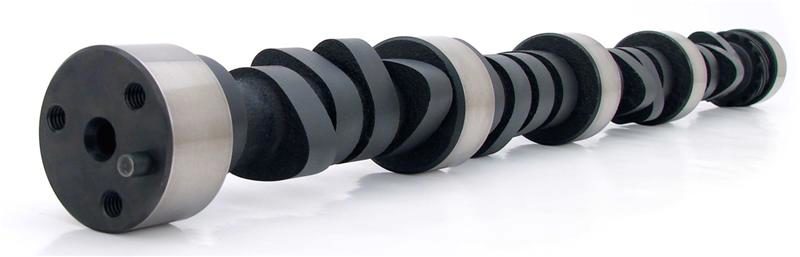

COMP Cams 11-242-20 - Nitrided Camshaft CB XE268H-1
Xtreme Energy NIT 224/230 Hydraulic Flat Cam for Chevrolet Big Block 396-454
Xtreme Energy NIT 224/230 Hydraulic Flat Tappet Cam for Chevy Big Block 396-454 (Nitrided). Good for street machines. A stock converter will work, but best with a 1800+ stall. Slightly rough idle.
Camshaft Series: Xtreme Energy
Usage: Street/Strip
Cam Type: Hydraulic Flat Tappet
Grind Number: XE268H
Basic Operating RPM Range: 1,600-5,800
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 230
Lobe Separation: 110
Intake Valve Lift: 0.515
Exhaust Valve Lift: 0.52
Lifters Included: No
Advertised Exhaust Duration: 280
Advertised Intake Duration: 268
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Lifter Type: Hydraulic Flat Tappet
Amazon ASIN: B002EE6JW8
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Camshaft Material: Nitrided Cast Iron
Camshaft Gear Attachment: 3-Bolt
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE268H
