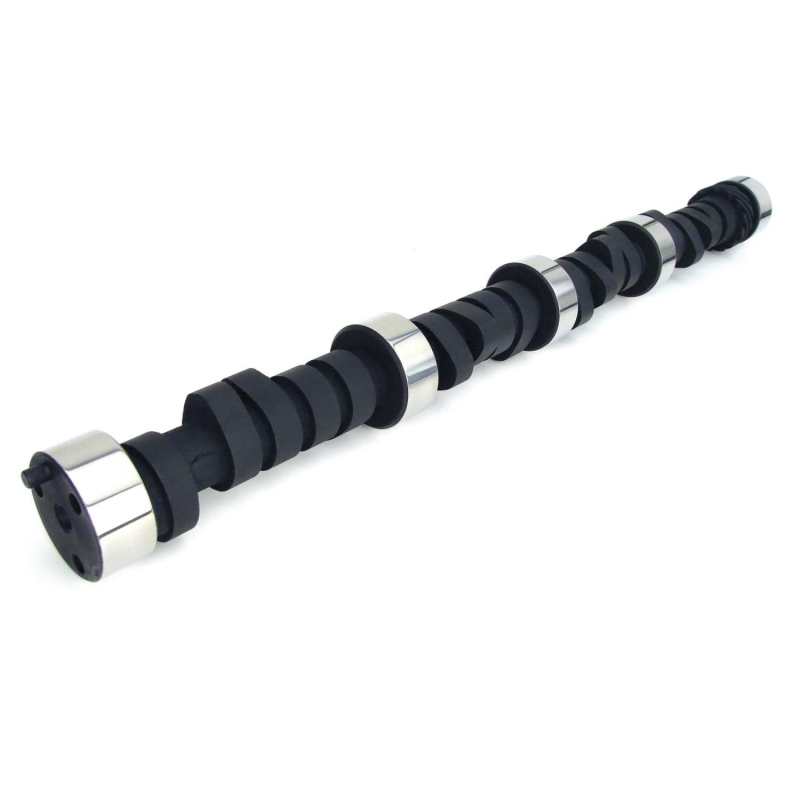

COMP Cams 11-236-4 - Camshaft CB XM 270H-12

COMP Cams  |  SKU: COMP-11-236-4
$31099 $34209

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 11-236-4 - Camshaft CB XM 270H-12

Camshaft - Xtreme Marine - Hydraulic Flat Tappet - Lift 0.544 / 0.547 in - Duration 270 / 286 - 112 LSA - 1600 / 5800 RPM - Big Block Chevy - Each

Jet w/ A impeller, strong mid- range, good throttle response, noticeable idle.

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XM270H
Camshaft Series: Xtreme Marine
Usage: Marine
Cam Type: Hydraulic Flat Tappet
Grind Number: XM270H
Basic Operating RPM Range: 1,600-5,800
Intake Duration at .050 Inch Lift: 226
Exhaust Duration at .050 inch Lift: 236
Advertised Intake Duration: 270
Advertised Exhaust Duration: 286
Lobe Separation: 112
Intake Valve Lift: 0.544
Exhaust Valve Lift: 0.547
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Cam and Lifter Kit Upgrade: CL11-236-4
K-Kit Upgrade: K11-236-4
Lifter Type: Hydraulic Flat Tappet
SK-Kit Upgrade: SK11-236-4
Amazon ASIN: B000CIS5YI
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
