COMP Cams 11-213-3 - Camshaft CB 292H-10

COMP Cams  |  SKU: COMP-11-213-3
$29795 $32774
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

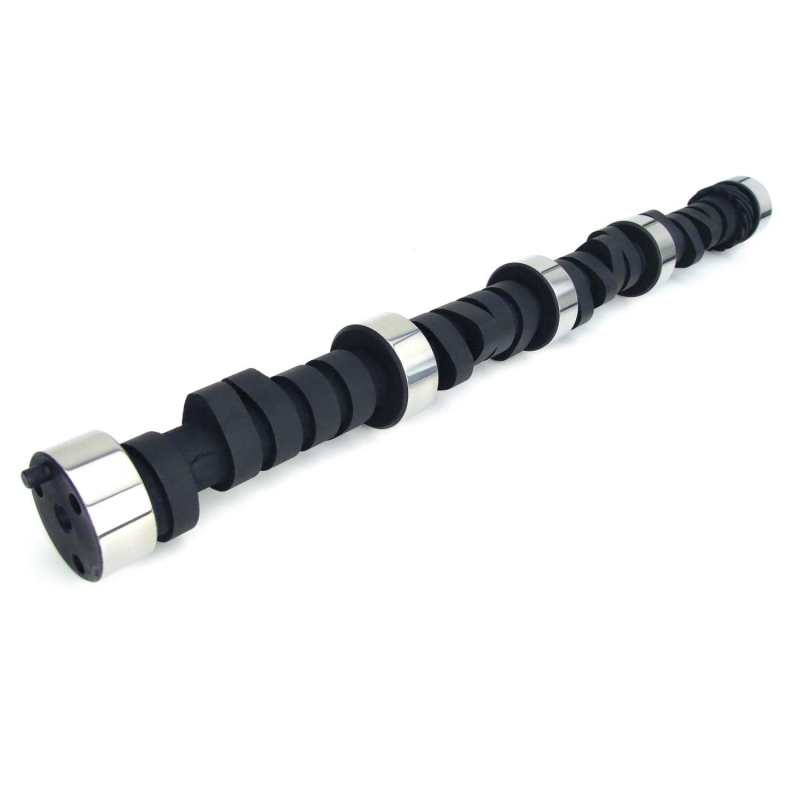

COMP Cams 11-213-3 - Camshaft CB 292H-10

Camshaft - Magnum - Hydraulic Flat Tappet - Lift 0.550 / 0.550 in - Duration 292 / 292 - 110 LSA - 2500 / 6500 RPM - Big Block Chevy - Each

Street/strip applications. 10:1+ compression, 3000+ stall or 4 speed. 4.10 or lower gears and aftermarket intake. Very rough idle.

An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.

Lobe Separation: 110
Intake Valve Lift: 0.55
Advertised Exhaust Duration: 292
Advertised Intake Duration: 292
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
SK-Kit Upgrade: SK11-213-3
Exhaust Valve Lift: 0.55
Lifters Included: No
Valve Springs Required: Yes
Lifter Type: Hydraulic Flat Tappet
K-Kit Upgrade: K11-213-3
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Cam and Lifter Kit Upgrade: CL11-213-3
Amazon ASIN: B000CESFGU
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 292H-10
Camshaft Series: Magnum
Usage: Street/Strip
Cam Type: Hydraulic Flat Tappet
Grind Number: 292H-10
Basic Operating RPM Range: 2,500-6,500
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 224
