COMP Cams 10902N2 - Stage 2 Intake & Cam Package for GM LS Cathedral Port Engines

Name: COMP Cams 10902N2 - Stage 2 Intake & Cam Package for GM LS Cathedral Port Engines
Brand: COMP Cams
SKU: COMP-10902N2
Price: 1744.99 USD
Availability: Backorder

COMP Cams | SKU: COMP-10902N2

$1,744⁹⁹ $1,919⁴⁹

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 10902N2 - Stage 2 Intake & Cam Package for GM LS Cathedral Port Engines

Stage 2 Induction Package for N/A GM LS1/Cathedral Port

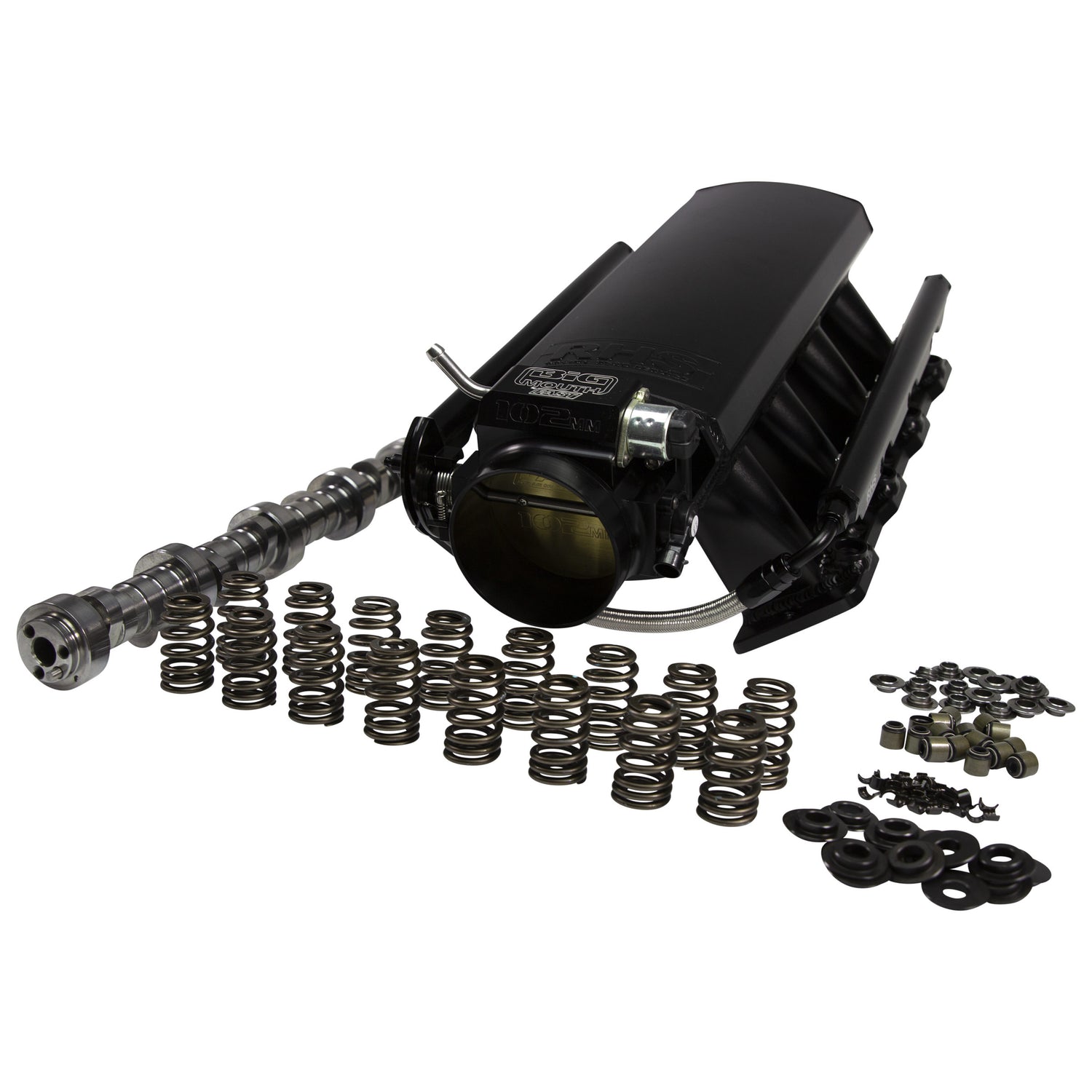

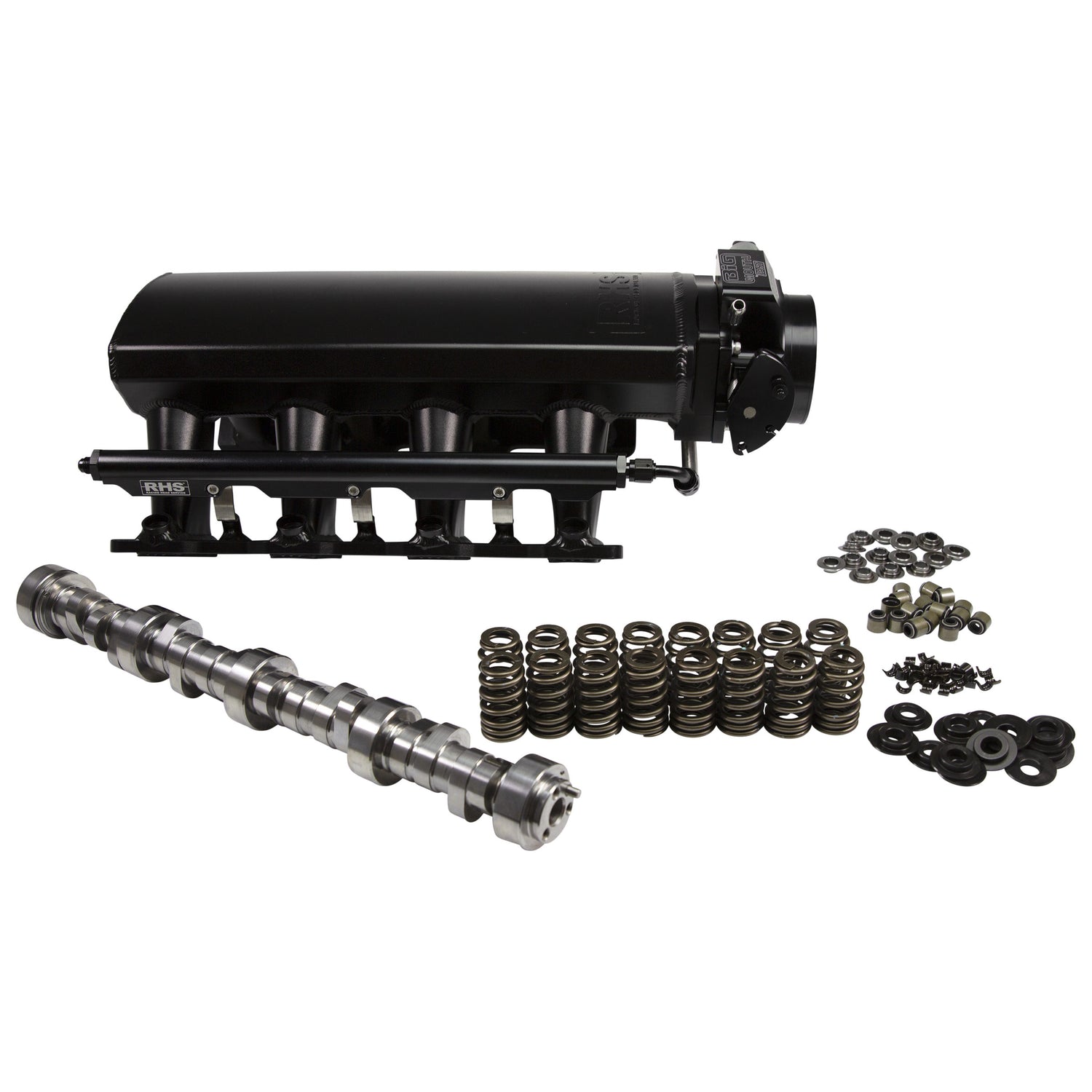

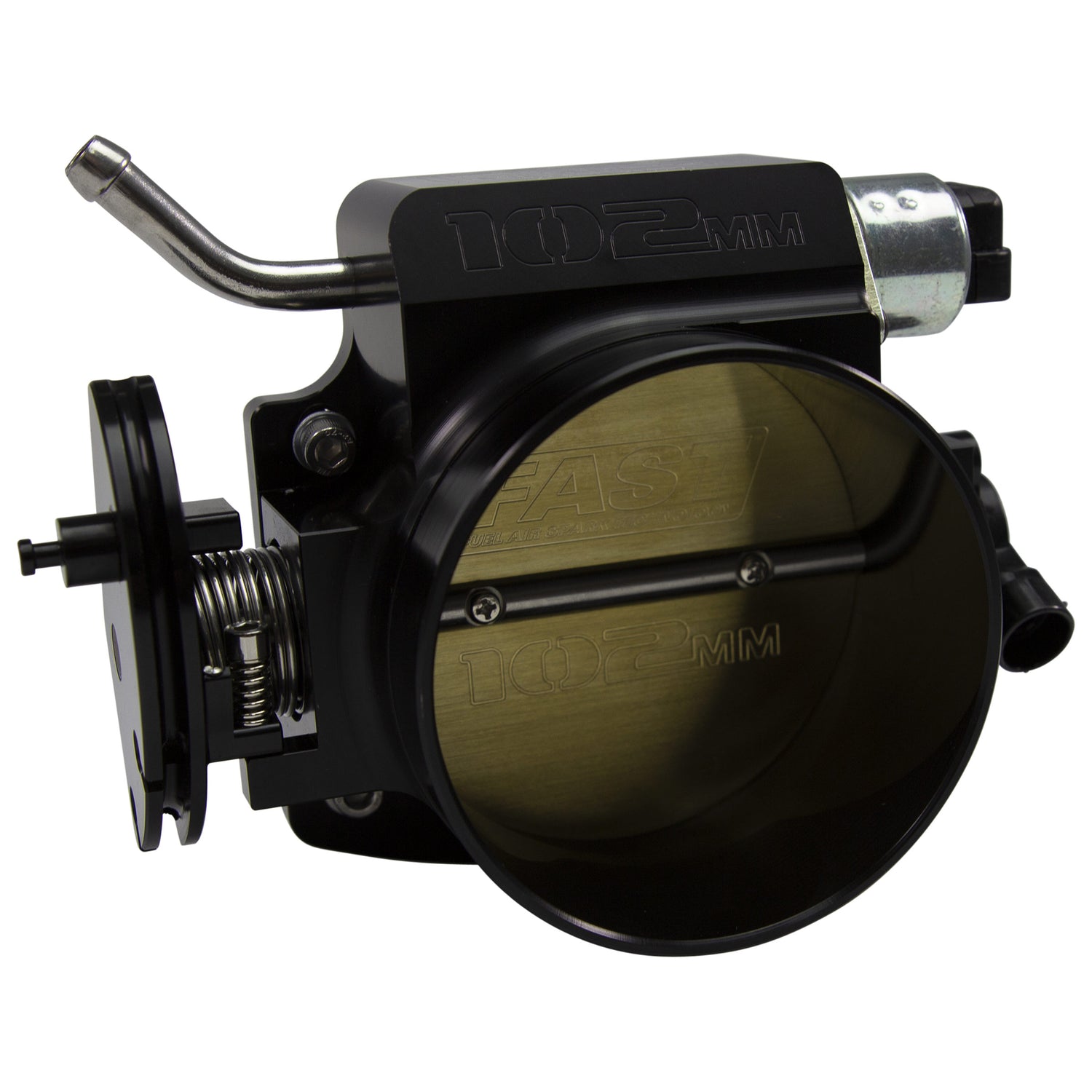

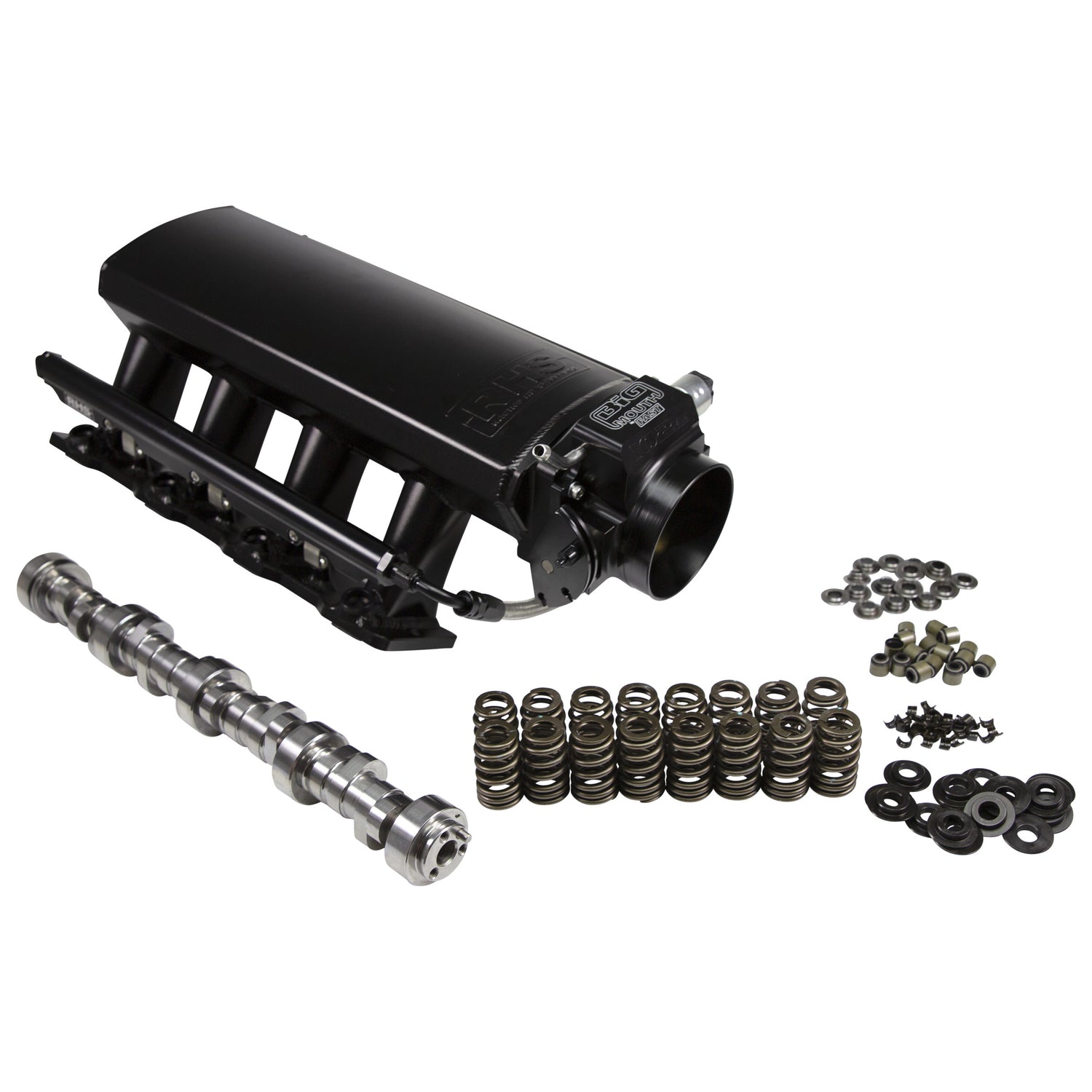

Including an RHS Manifold, FAST Throttle Body, COMP Cams Stage 2 Cam and LS6+ Spring Kit, this Induction Package delivers an addition 105 HP on an LM7 5.3 LS. Adds over 1,700 RPM of powerband over the stock LM7 setup.

RHS Induction Packages maximize horsepower and torque gains for your GM LS1 Cathedral Port engine. Including our high quality black anodized sheet metal intake, fuel rails along with custom COMP Cams camshaft and beehive valve spring kit, these kits remove all the guesswork, delivering serious gains without the hassle.

Camshaft Included: Yes

Intake Duration at .050" Lift: 233

Exhaust Duration at .050" Lift: 243

Intake Manifold Included: Yes

Fuel Delivery Style: Multiport - MPI

Intake Material: Aluminum

Intake Finish: Textured Black Anodize

Intake Style: Fabricated Sheet Metal

Valve Lift with Factory Rocker Arm Ratio: .575/.575

Exhaust Advertised Duration: 304

Intake Advertised Duration: 294

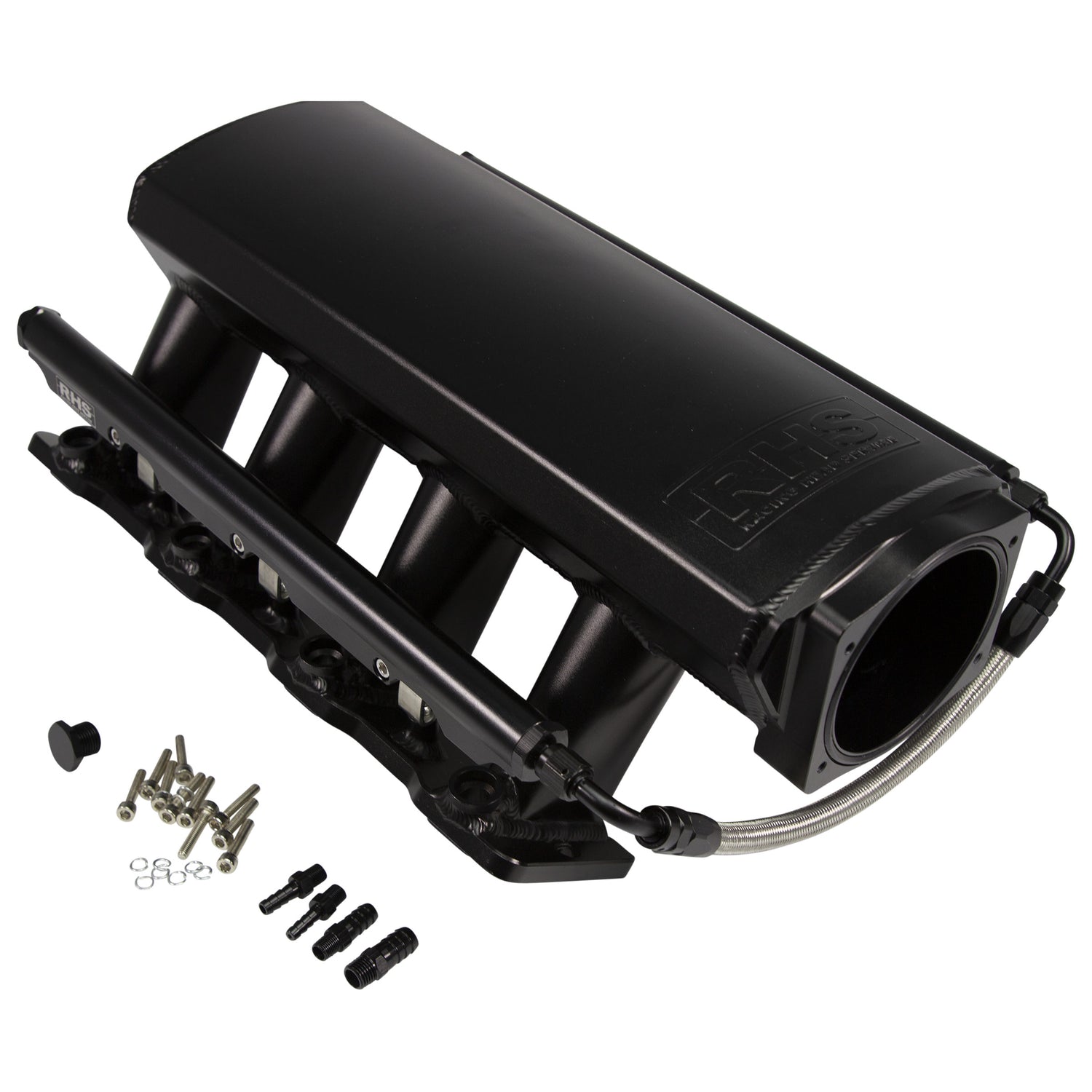

Intake Manifold Name: RHS Sheet Metal Intake

Throttle Bolt Style (3 or 4 Bolt): 4

Timing Chain and Gears Included: No

Lifters Included: No

Gaskets Included: Yes

Intake Port Shape: Cathedral Port/LS1/2/6

Valve Springs Included: Yes

Outside Diameter of Outer Spring (in): 1.077 in./1.282 in.

Damper Spring Included: No

Number of Springs Per Valve: 1

Retainers Included: Yes

Retainer Material: Steel

Locks Included: Yes

Lock Style: Stock Beadlock

Valve Stem Seals Included: Yes

Valve Stem Seal Style: Hat

Valve Stem Seal Material: Stock

Rocker Arms Included:: No

Rocker Arm Studs Included: No

Rocker Arm Nuts Included: No

Guideplates Included: No

Guideplate Pushrod Size: No

Pushrods Included: No

Valve Covers Included: No

Fuel Rails Included: Yes

Injectors Included: No

Required Injector Size/Footprint (LS1/LS3/LS2): LS1

COMP Cams 10902N2 - Stage 2 Intake & Cam Package for GM LS Cathedral Port Engines
