COMP Cams 106500 - Camshaft Set F4.6/5.4D XE278A

COMP Cams  |  SKU: COMP-106500
$2,13495 $2,34844

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

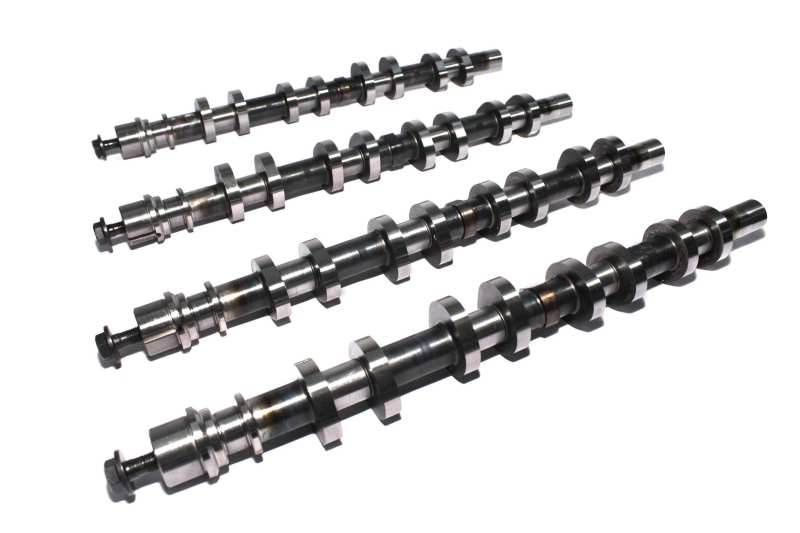

COMP Cams 106500 - Camshaft Set F4.6/5.4D XE278A

Xtreme XE-R 242/240 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve

Race or limited street use. Cams require a larger throttle body, mass air, injectors, exhaust upgrades and requires custom tuning. Automatics need a 3000+ stall. Very rough idle.

Xtreme XE-R 242/240 Hydraulic Roller Finger Follower Cams for Ford 4.6/5.4/5.8L Modular. Race or limited street use. Cams require a larger throttle body, mass air, injectors, exhaust upgrades, 3000+ stall. Very rough idle. Requires custom tuning.

Camshaft Series: Xtreme XE-R
Usage: Street/Performance
Cam Type: Hydraulic Roller Swinging Follower
Grind Number: XE278AH-114
Basic Operating RPM Range: 2,200-6,500
Intake Duration at .050 Inch Lift: 242
Exhaust Duration at .050 inch Lift: 240
Advertised Intake Duration: 277
Advertised Exhaust Duration: 275
Lobe Separation: 114
Intake Valve Lift: 0.475
Exhaust Valve Lift: 0.45
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
Lifter Type: Hydraulic Roller Swinging Follower
Amazon ASIN: B000P5B52C
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE278AH-114
