COMP Cams 106460 - Camshaft Set F4.6/5.4D XE274B
COMP Cams | SKU:
COMP-106460
Sale price
$2,13495
Regular price
$2,34844
Unit price
/
Unavailable
$213.49 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

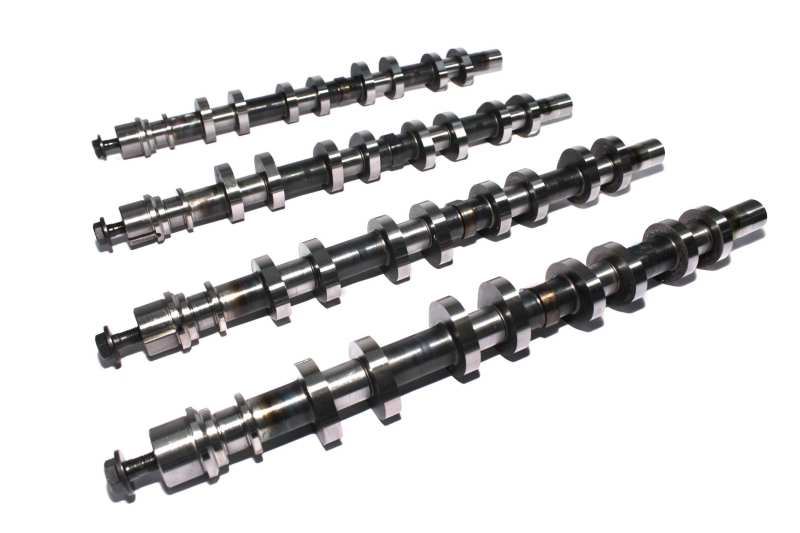

COMP Cams 106460 - Camshaft Set F4.6/5.4D XE274B
Camshaft - Xtreme Energy-R S-Charged/N20 - Lift 0.475 / 0.450 in - Duration 273 / 275 - 116 LSA - 2000 / 6400 RPM - Ford Modular - Set of 4
Xtreme XE-R S-Charged/N2O 238/240 Hydraulic Roller Finger Follower Cams for Ford 4.6/5.4/5.8 Modular. Max strip/street cams for centrifugal supercharged or nitrous engines. Large gains in power with larger throttle body, mass air, injectors and exhaust upgrades. 2500+ stall. Requires lower Gears and custom tuning. Rough idle.
Camshaft Series: XE-R Supercharged and Nitrous
Usage: Street/Performance
Cam Type: Hydraulic Roller Swinging Follower
Grind Number: XE274BH-116
Exhaust Valve Lift: 0.45
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
Lifter Type: Hydraulic Roller Swinging Follower
Amazon ASIN: B000P5G4NM
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE274BH-116
Basic Operating RPM Range: 2,000-6,400
Intake Duration at .050 Inch Lift: 238
Exhaust Duration at .050 inch Lift: 240
Advertised Intake Duration: 273
Advertised Exhaust Duration: 275
Lobe Separation: 116
Intake Valve Lift: 0.475
