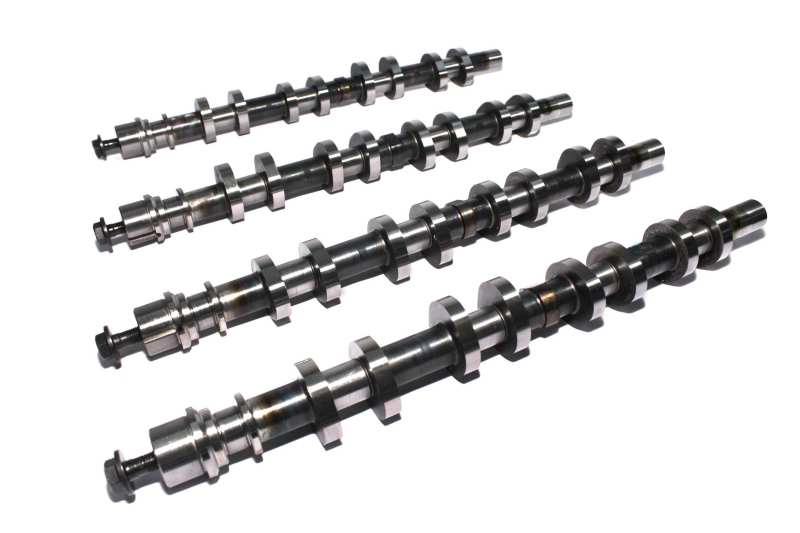

COMP Cams 106360 - Camshaft Set F4.6/5.4D XE266B
COMP Cams | SKU:
COMP-106360
Sale price
$1,90595
Regular price
$2,09654
Unit price
/
Unavailable
$190.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
⛔
NON-CANCELLABLE OR RETURNABLE ITEM:
⛔
This is because the item is either a clearance item, or it may be made to order. Ask all questions before ordering.
This is because the item is either a clearance item, or it may be made to order. Ask all questions before ordering.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
COMP Cams 106360 - Camshaft Set F4.6/5.4D XE266B
XE-R S-Charged/N2O 230/232 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V
Serious street effort for supercharged or nitrous applications. Requires custom tuning and lower gears. Automatics will require a 2000+ stall. Mild rough idle.
Usage: Street/Performance
Cam Type: Hydraulic Roller Swinging Follower
Grind Number: XE266BH-116
Basic Operating RPM Range: 1,500-6,000
Intake Duration at .050 Inch Lift: 230
Exhaust Duration at .050 inch Lift: 232
Advertised Intake Duration: 230
Advertised Exhaust Duration: 267
Lobe Separation: 116
Intake Valve Lift: 0.475
Exhaust Valve Lift: 0.45
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
Lifter Type: Hydraulic Roller Swinging Follower
Amazon ASIN: B001G737LA
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE266BH-116
Camshaft Series: XE-R Supercharged and Nitrous
