COMP Cams 106200 - Camshaft Set F4.6/5.4D XE270A

COMP Cams  |  SKU: COMP-106200
$2,13495 $2,34844

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

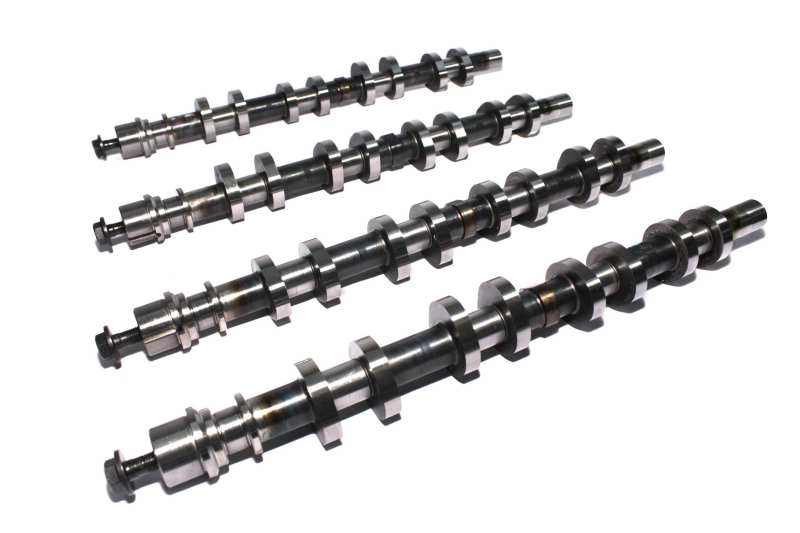

COMP Cams 106200 - Camshaft Set F4.6/5.4D XE270A

Xtreme RPM 234/230 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve

Street and strip performance. Needs lower gears, exhaust upgrades, larger throttle body and mass air, bigger fuel injectors and a 2200+ stall with automatics. Requires custom tuning. Rough idle.

Xtreme RPM 234/230 Hydraulic Roller Finger Follower Cams for Ford 4.6/5.4/5.8L Modular 4 Valve Xtreme RPM 234/230 Hydraulic Roller Finger Follower Finger Follower. street/strip Applications.

Camshaft Series: Xtreme RPM
Usage: Street/Performance
Cam Type: Hydraulic Roller Swinging Follower
Grind Number: XE270AH-114
Basic Operating RPM Range: 1,800-6,200
Intake Duration at .050 Inch Lift: 234
Exhaust Duration at .050 inch Lift: 230
Advertised Intake Duration: 269
Advertised Exhaust Duration: 265
Lobe Separation: 114
Intake Valve Lift: 0.425
Exhaust Valve Lift: 0.425
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
Lifter Type: Hydraulic Roller Swinging Follower
Amazon ASIN: B001G7357G
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE270AH-114
