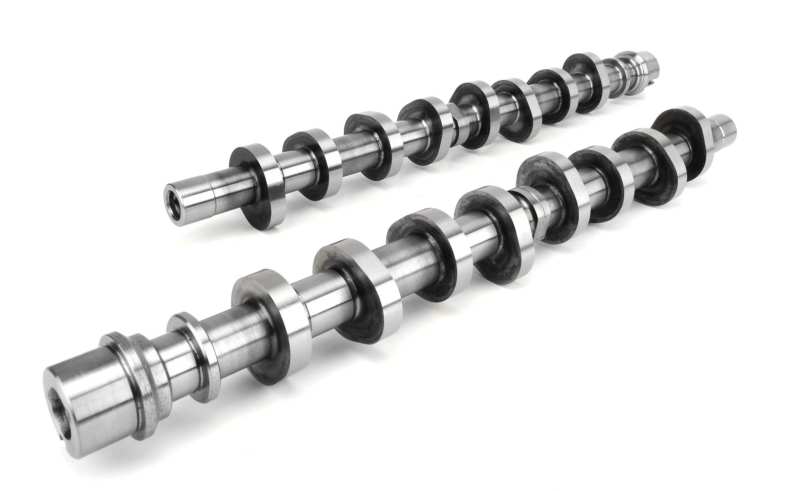

COMP Cams 102560 - Camshaft Set F4.6S XE262Bh-16
COMP Cams | SKU:
COMP-102560
Sale price
$88899
Regular price
$97789
Unit price
/
Unavailable
$88.90 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
COMP Cams 102560 - Camshaft Set F4.6S XE262Bh-16
Camshaft - Xtreme Energy Blower - Hydraulic Roller - Lift 0.550 / 0.550 in - Duration 262 / 266 - 116 LSA - 1600 / 5600 RPM - Ford Modular - Pair
SOHC - Good torque with powerful mid-range when using a blower.
- Requires custom tuning
- Requires valve springs 26113-16
- Requires Steel retainers 792-16 or titanium retainers 791-16
- High load valve springs are also available for this application 26125-16
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
Camshaft Series: Xtreme Energy Blower
Usage: Street/Performance
Cam Type: Hydraulic Roller Finger Follower
Grind Number: XE262BH-16
Basic Operating RPM Range: 1,600-5,600
Intake Duration at .050 Inch Lift: 226
Exhaust Duration at .050 inch Lift: 230
Advertised Intake Duration: 262
Advertised Exhaust Duration: 266
Lobe Separation: 116
Intake Valve Lift: 0.55
Exhaust Valve Lift: 0.55
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford 4.6L and 5.4L SOHC Modular 2 Valve 8 Cylinder (1991+)
Lifter Type: Hydraulic Roller Finger Follower
Amazon ASIN: B002EDY5VQ
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE262BH-16
