COMP Cams 09-412-8 - Camshaft C43 260AH-R12

COMP Cams  |  SKU: COMP-09-412-8
$58299 $64129

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

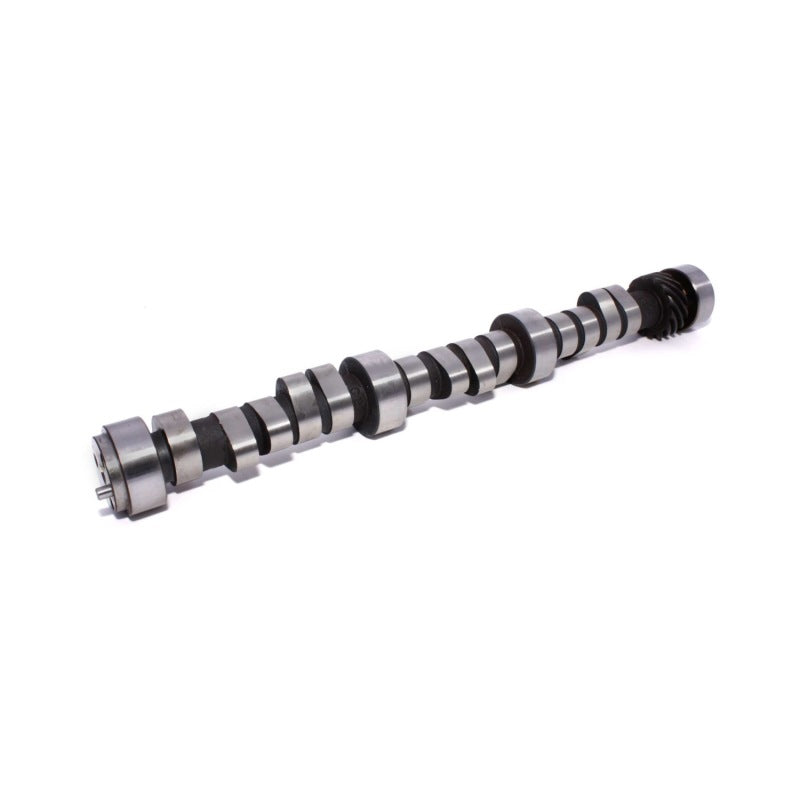

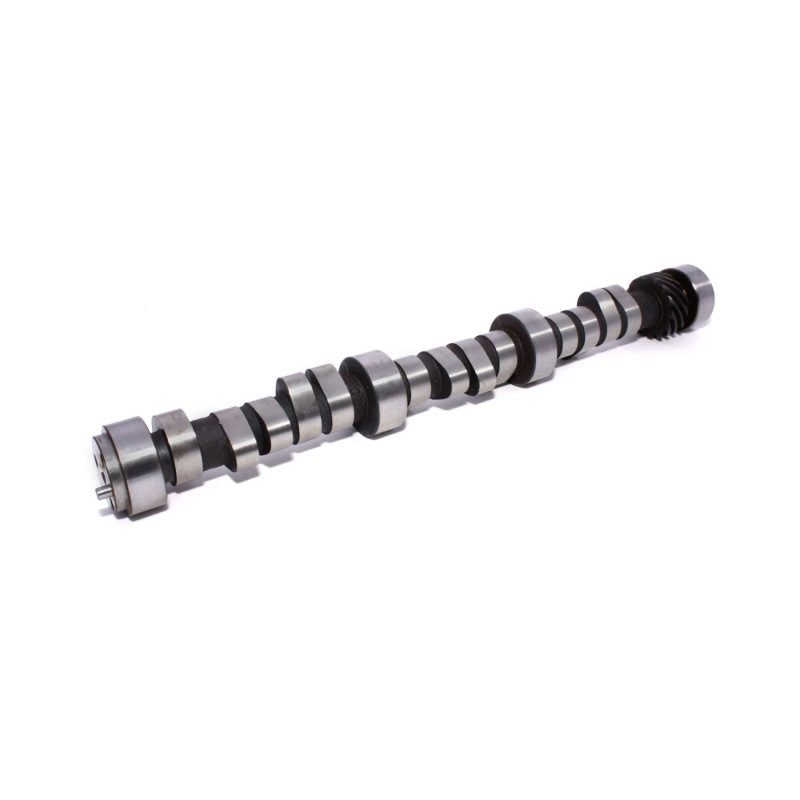

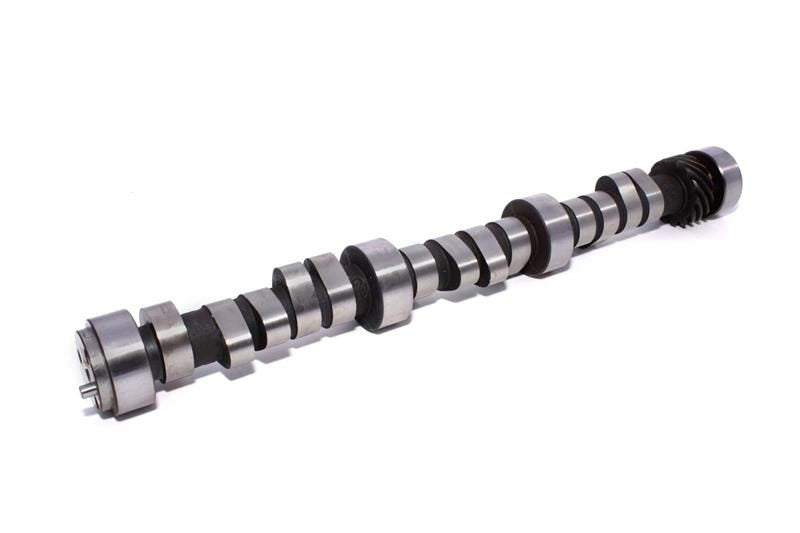

COMP Cams 09-412-8 - Camshaft C43 260AH-R12

Magnum Computer Controlled 206/210 Hydraulic Roller Cam for Chevrolet 262/4.3L

Works with stock computer and fuel injection. Good low end torque and mileage.

For '87-'94 GM 4.3L/262 cid 90. V6 Non-Balance shaft Engines with Hyd. Roller Cam . Works with Stock Computer and Fuel Injection. Good Low End Torque and Mileage. Adjustable Valve Train Required. Balance shaft equipped 4.3L engines were introduced in '92 but GM continued to produce the previous version until '94. Non-Balance shaft 4.3L's ('85-'94) shared their timing cover with the small block Chevy V8 engine. The. Balance shaft 4.3L's timing cover is noticeably taller than the Non-Balance shaft version.

Lifters Included: No
Exhaust Valve Lift: 0.5
Intake Valve Lift: 0.5
Engine Family: Chevrolet 4.3L 262 c.i. 90 Degree 6 Cylinder (1987+) Non-Balance Shaft
Cam and Lifter Kit Upgrade: CL09-412-8
SK-Kit Upgrade: SK09-412-8
Amazon ASIN: B000VU20HU
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
Lifter Type: Hydraulic Roller
K-Kit Upgrade: K09-412-8
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 260AHR
Camshaft Series: Magnum Computer Controlled
Usage: Street/Strip
Intake Duration at .050 Inch Lift: 206
Exhaust Duration at .050 inch Lift: 210
Advertised Intake Duration: 260
Basic Operating RPM Range: 1,200-4,500
Grind Number: 260AHR
Cam Type: Hydraulic Roller
Advertised Exhaust Duration: 266
Lobe Separation: 112
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
