COMP Cams 08-470-8 - Camshaft CS 314H-R10

COMP Cams  |  SKU: COMP-08-470-8
$54499 $59949

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

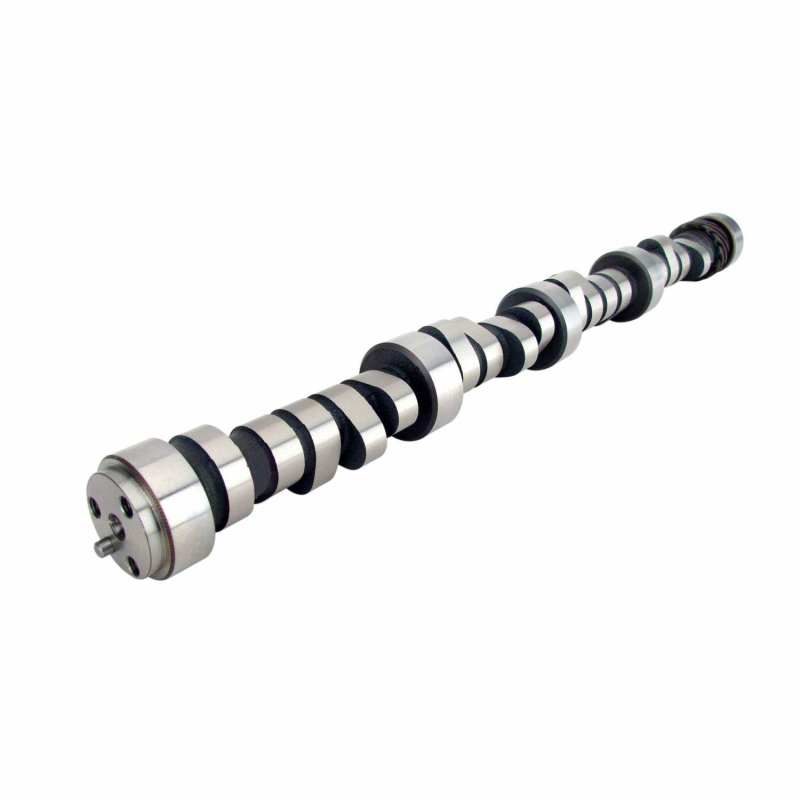

COMP Cams 08-470-8 - Camshaft CS 314H-R10

Magnum 252/252 Hydraulic Roller Cam for OE Roller SBC

Limited street/ bracket racing. 10.5:1. 3500+ stall. Headers and race intake.

An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.

Camshaft Series: Magnum
Usage: Street/Strip
Cam Type: Hydraulic Roller
Grind Number: 314HR
Basic Operating RPM Range: 3,500-6,500
Intake Duration at .050 Inch Lift: 252
Exhaust Duration at .050 inch Lift: 252
Advertised Intake Duration: 314
Advertised Exhaust Duration: 314
Lobe Separation: 110
Intake Valve Lift: 0.6
Exhaust Valve Lift: 0.6
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Lifter Type: Hydraulic Roller
K-Kit Upgrade: K08-470-8
Cam and Lifter Kit Upgrade: CL08-470-8
Engine Family: Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998)
SK-Kit Upgrade: SK08-470-8
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
