COMP Cams 08-306-8 - Camshaft CS 290H-R12
COMP Cams | SKU:
COMP-08-306-8
Sale price
$43499
Regular price
$47849
Unit price
/
Unavailable
$43.50 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

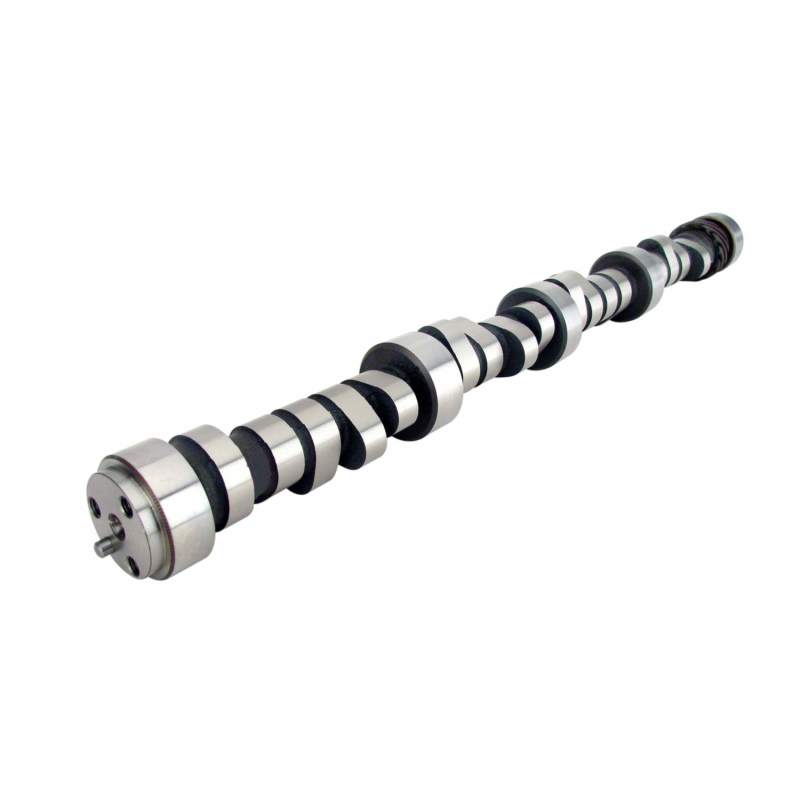

COMP Cams 08-306-8 - Camshaft CS 290H-R12
Camshaft - Hydraulic Roller - Lift 0.510 / 0.540 in - Duration 290 / 307 - 112 LSA - 2000 / 6000 RPM - Small Block Chevy - Each
Street/strip applications. Needs 2500+ stall, lower gears. Requires custom tuning.
Hydraulic Roller - Computer Controlled: Street/strip applications. Needs 2500+ stall, lower gears and custom tuning.
SK-Kit Upgrade: SK08-306-8
Amazon ASIN: B000VTYS08
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Camshaft Series: Computer Controlled
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: 290HR-12
Basic Operating RPM Range: 2,000-6,000
Intake Duration at .050 Inch Lift: 230
Exhaust Duration at .050 inch Lift: 244
Advertised Intake Duration: 290
Advertised Exhaust Duration: 307
Lobe Separation: 112
Intake Valve Lift: 0.51
Exhaust Valve Lift: 0.54
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Engine Family: Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998)
Cam and Lifter Kit Upgrade: CL08-306-8
K-Kit Upgrade: K08-306-8
Lifter Type: Hydraulic Roller
