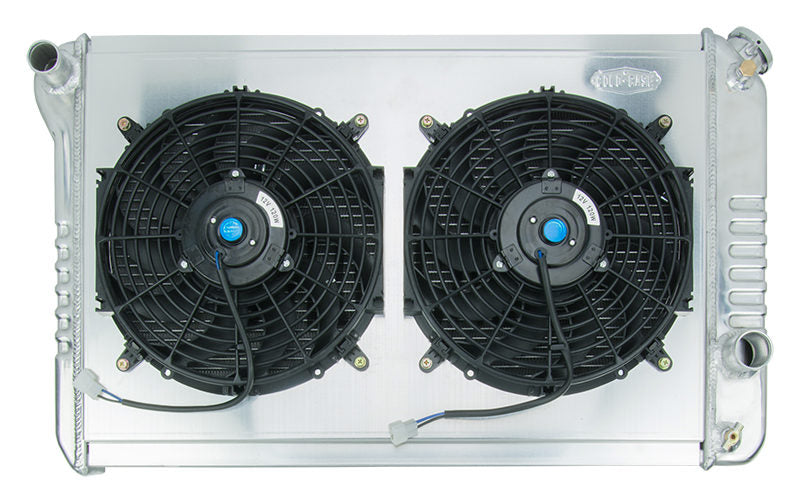

Cold Case Radiators LMP590AK - 82-92 Camaro/Firebird 3rd Gen F-Body Aluminum Performance Radiator and 12 Inch Fan Kit

Cold Case Radiators LMP590AK - 82-92 Camaro/Firebird 3rd Gen F-Body Aluminum Performance Radiator and 12 Inch Fan Kit

1982-1992 Camaro/Firebird 3rd Gen Aluminum Performance Radiator. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

Fits:
1982-1992 Camaro/Firebird 3rd Gen

Details:

• 100 percent TIG welded
• Fan Diameter 12 Inch
• All Aluminum
• Polished tanks
• (2) 1.25 inch rows
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto/manual transmission

Radiator Specs

• Core Height 16.85 inch
• Core Width 26.25 inch
• Overall Height 18.5 inch
• Overall Width 32 inch
• Overall Thickness 6 inch
• Upper Hose 1.25 inch
• Lower Hose 1.50 inch
• Tubes (2) 1.25 inch Tubes
