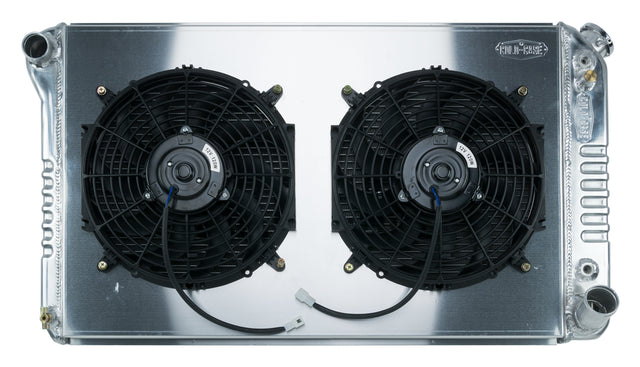

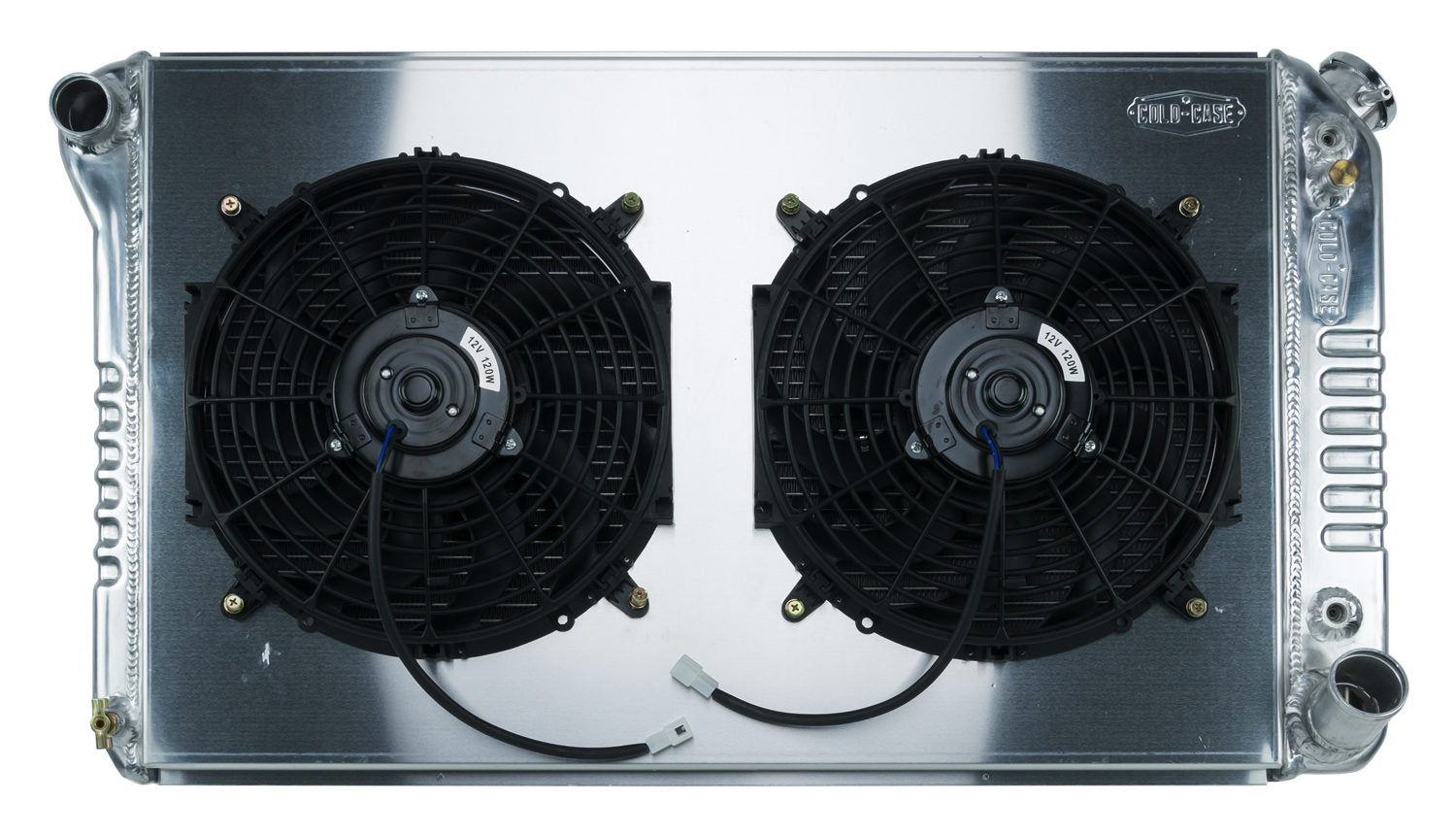

Cold Case Radiators GMT558AK - 67-76 Chevy GMC Pickup Truck Aluminum Radiator And 12 Inch Fan Kit AT

Cold Case Radiators GMT558AK - 67-76 Chevy GMC Pickup Truck Aluminum Radiator And 12 Inch Fan Kit AT

1967-1976 Chevy/GMC Truck Aluminum Performance Radiator and 12 Inch fan kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 12 Inch
• All Aluminum
• (2) 1.25 inch Tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic trans
• Direct fitment for 67-72 GM Truck
• Old Part Number: RPE558ATFK

Radiator Specs

• Core Height 17.25 inch
• Core Width 28.35 inch
• Overall Height 18.6 inch
• Overall Width 34 inch
• Overall Thickness 6 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
