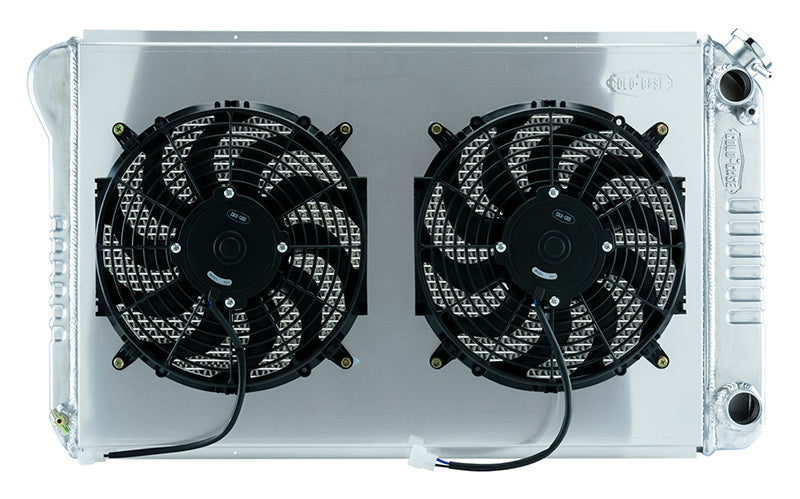

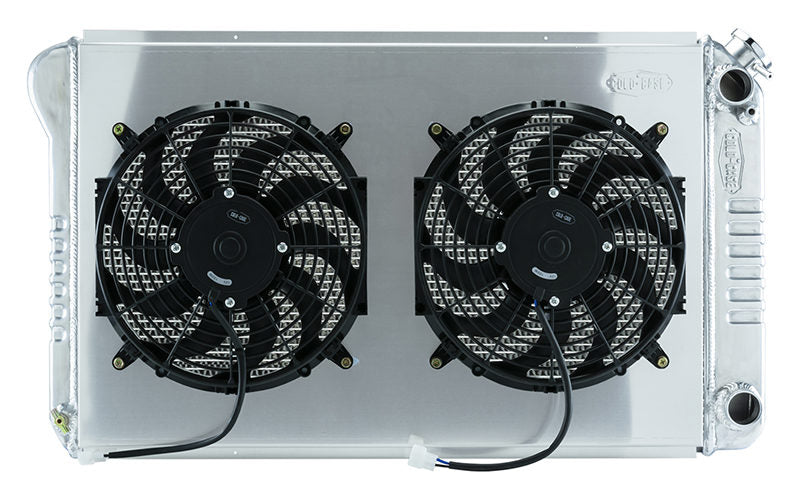

Cold Case Radiators GMT556A21SSK - 77-87 GM Truck 21 Inch LS Swap Aluminum Radiator and 14 Inch Fan Kit

Cold Case Radiators GMT556A21SSK - 77-87 GM Truck 21 Inch LS Swap Aluminum Radiator and 14 Inch Fan Kit

1977-1987 Chevy/GMC Truck 21 Inch LS Swap Aluminum Performance Radiator and 14 Inch Fan Kit. This is the radiator that is 21 inches high overall and has the steam port for an LS Swap. External trans cooler is recommended.

When you need the biggest and best, look no further than the Cold Case Super Duty Line. All Super Duty kits include 2 row radiators with 1.25 Inch tubes, aluminum fan shroud and dual 14 Inch fans, flowing at 2200cfm per fan! For extreme horsepower applications OR if you just want the best of the best...

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Fits:
1977-1987 Chevy/GMC Truck LS Swap
Details:

• 100 percent TIG welded
• All Aluminum
• Fan Diameter 12 Inch
• Polished OE style tanks
• (2) 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic trans
• Direct fitment for 77-87 GM Truck LS Swap trucks

Radiator Specs

• Core Height 18.8 inch
• Core Width 28.35 inch
• Overall Height 21 inch
• Overall Width 34.33 inch
• Overall Thickness 3 inch
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
• Tubes (2) 1.25 inch Tubes
