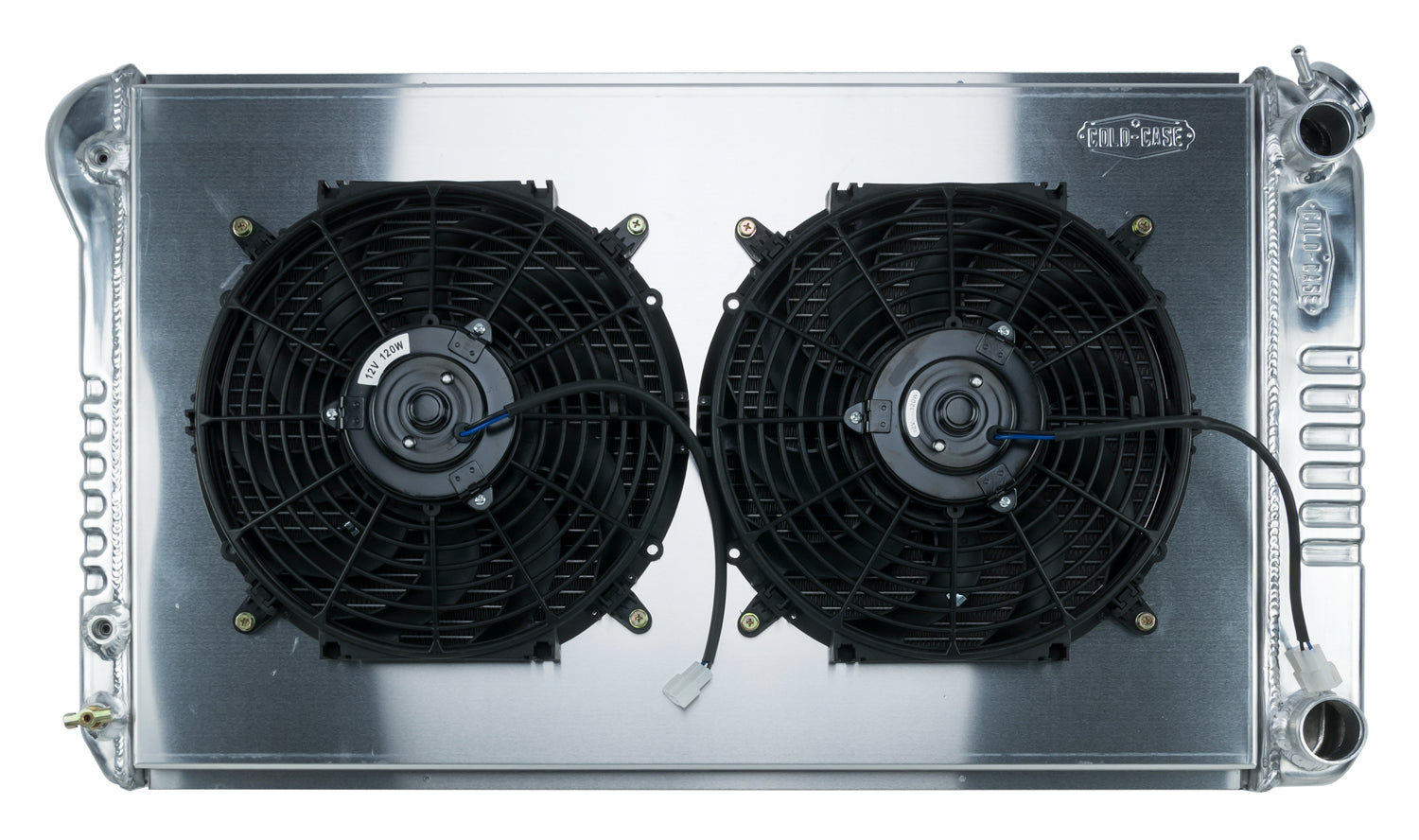

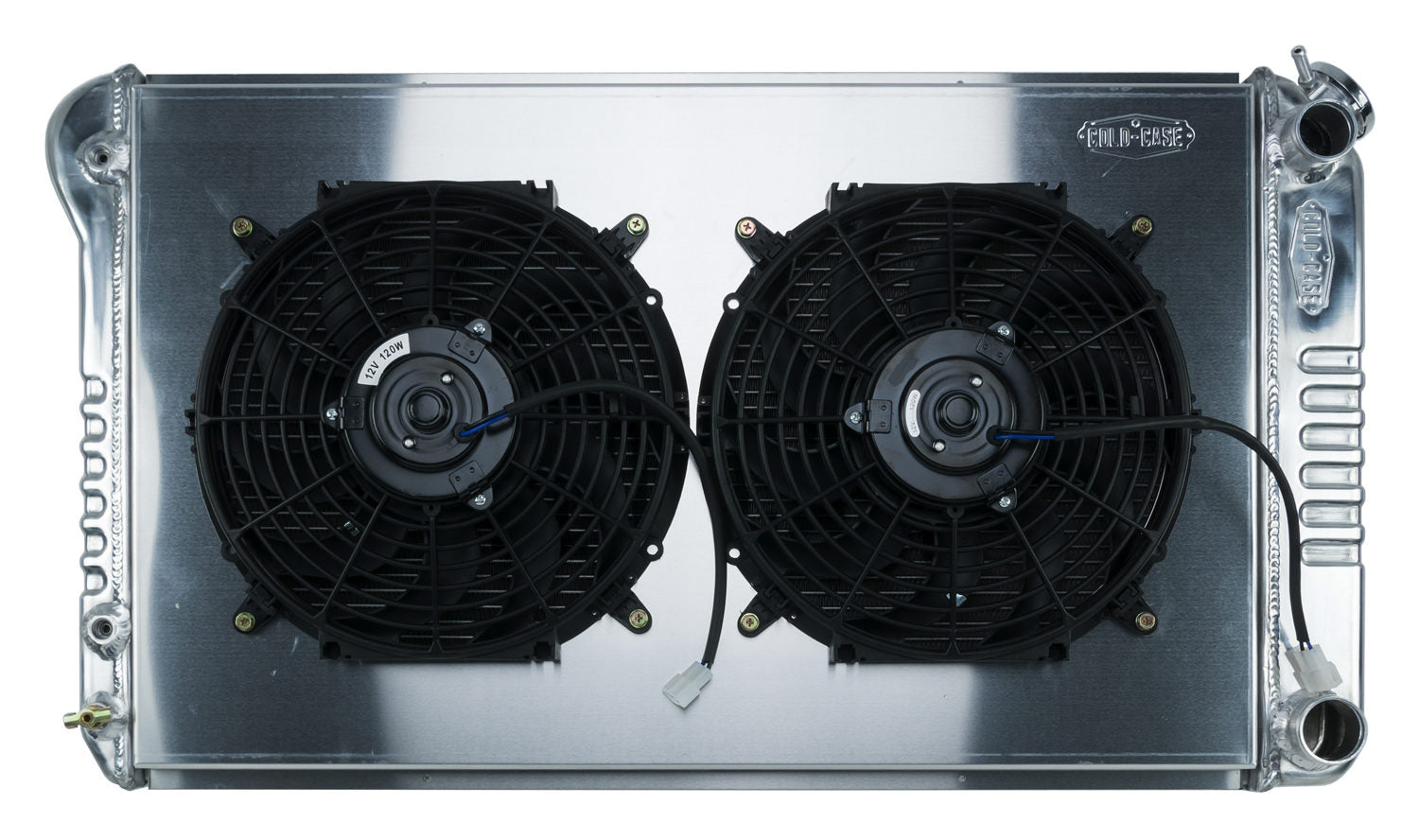

Cold Case Radiators GMA546AK - 68-72 A-Body LS SWAP Aluminum Radiator And Dual 12 Inch Fan Kit

Cold Case Radiators GMA546AK - 68-72 A-Body LS SWAP Aluminum Radiator And Dual 12 Inch Fan Kit

1968-1972 GM A-Body with LS Swap Aluminum Performance Dual Flow Radiator and 12 Inch fan kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 12 Inch
• All Aluminum
• (2) 1.25 inch Tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Dual Flow Design
• Direct fitment for 68-72 A-Body LS Swaps
• Old Part Number: RPE546AK

Radiator Specs

• Core Height 18.4 inch
• Core Width 28.5 inch
• Overall Height 18.82 inch
• Overall Width 34.21 inch
• Overall Thickness 6 inch
• Upper Hose 1.25 inch
• Lower Hose 1.5 inch
• Tubes (2) 1.25 inch Tubes
