Cold Case Radiators FOM561A - 67-70 Mustang 289/302 Fair Coug Gal Aluminum Performance Radiator 20 Inch AT
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description

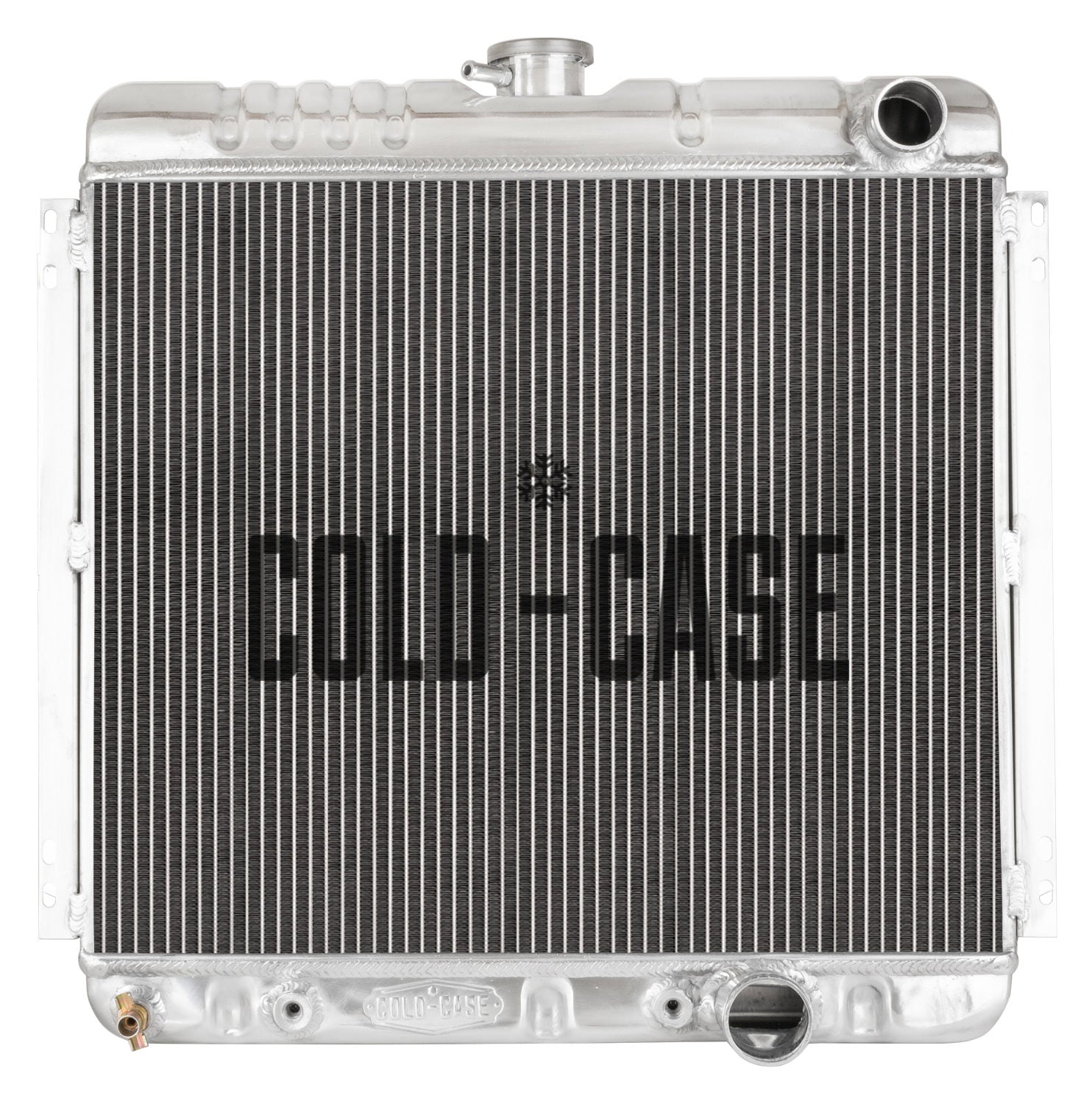

Cold Case Radiators FOM561A - 67-70 Mustang 289/302 Fair Coug Gal Aluminum Performance Radiator 20 Inch AT
1967-1969 Mercury Cougar Small Block Aluminum Performance Radiator. AT Cars.
- 67-68 289 with X/C AC
- 68-69 302 with X/C AC
- 1969 351W
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Automatic trans
- Direct fitment for 67-69 Cougar 289/302/351
- Old Part Number: RPE561
Radiator Specs
- Core Height 16.5 inch
- Core Width 19.6 inch
- Overall Height 20.5 inch
- Overall Width 22.4 inch brackets
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.77 inch
