Cold Case Radiators CHV714AK - 69-72 Corvette Small Block Aluminum Radiator Dual 12 Inch Fan Kit

Cold Case Radiators CHV714AK - 69-72 Corvette Small Block Aluminum Radiator Dual 12 Inch Fan Kit

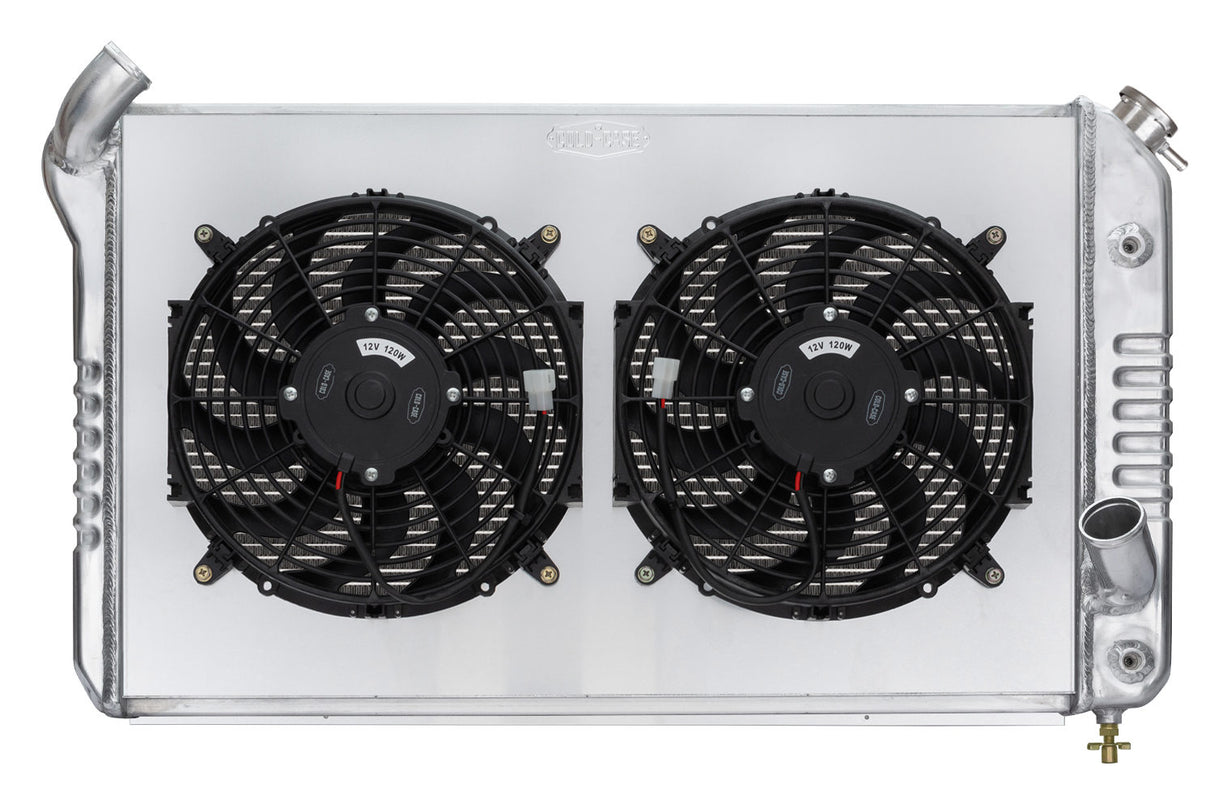

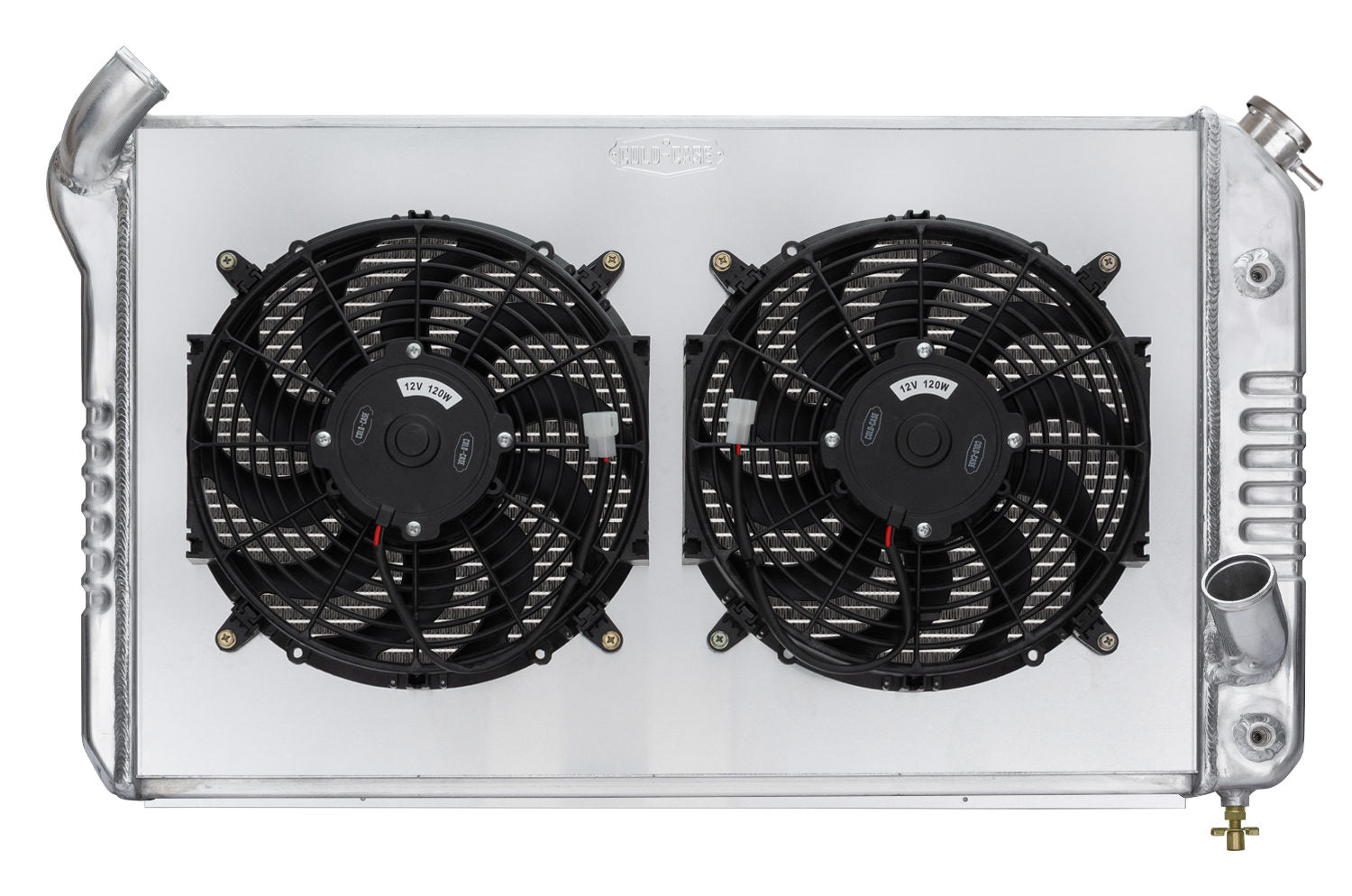

69-72 Corvette Small Block Aluminum Performance Radiator with Dual 12 inch Fan and Shroud Kit but with fill neck. For a radiator without the fill neck, see CHV714A-1K.

These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. They feature original-appearing stamped tanks, oversized core tubes, and advanced fin design, adding up to a stock-appearing true-performance radiator.

You would be hard-pressed to spot the difference between an OEM replacement and a COLD-CASE, and you would never match the performance of a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE-style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual/auto trans
• Direct fitment for 69-72 Corvette Small Block
• Dual 12 inch fan and shroud kit

Radiator Specs

• Core Height 17 inch
• Core Width 26.25 inch
• Overall Height 19.5 inch
• Overall Width 31.75 inch
• Overall Thickness 6.75 inch
• Upper Hose 1.5 inch
• Lower Hose 1.75 inch
• Tubes (2) 1.25-inch Tubes
• Trans Cooler Fitting: 5/16 inch Inverted Flare
