Cold Case Radiators CHE542AK - 66-67 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit AT
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description

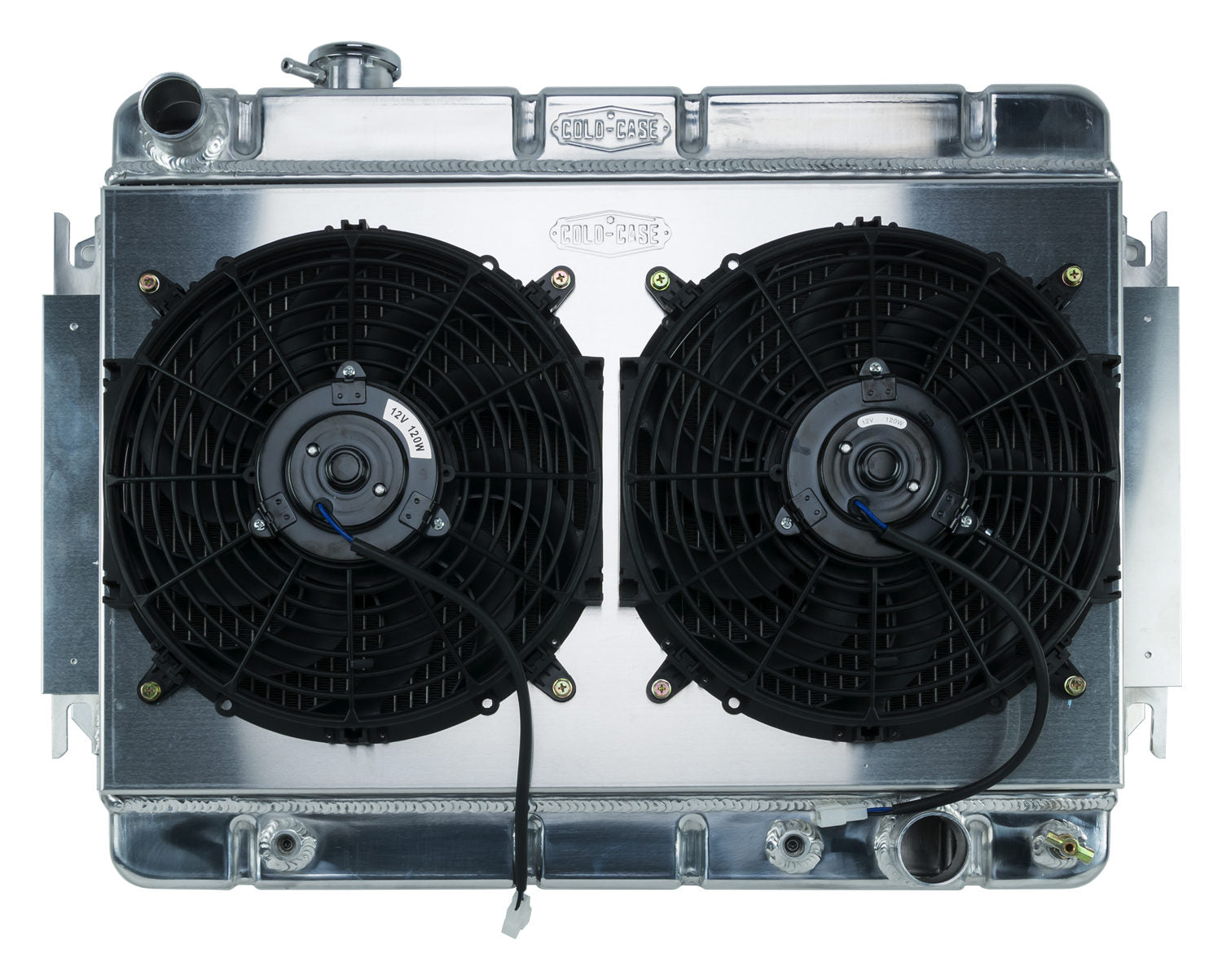

Cold Case Radiators CHE542AK - 66-67 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit AT
66-67 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit AT Transmission. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- Polished OE style tanks
- (2) 1.25 Inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Atuomatice trans
- Direct fitment for 66-67 Chevelle/El Camino
- Old Part Number: RPE542K
Radiator Specs
- Core Height 15.4 Inch
- Core Width 24.7 Inch
- Overall Height 20.5 Inch
- Overall Width 27.75 brackets Inch
- Overall Thickness 6 Inch
- Tubes (2) 1.25 Inch Tubes
- Upper Hose 1.57 Inch
- Lower Hose 1.77 Inch
