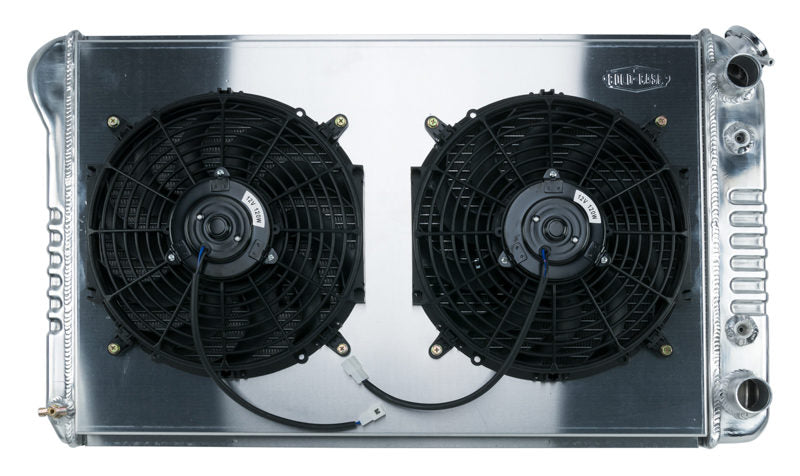

Cold Case Radiators CHC557A-1K - 70-81 Camaro/Firebird LS Swap With 35mm Hoses Aluminum Performance Radiator and 12 Inch Fan Kit

Cold Case Radiators CHC557A-1K - 70-81 Camaro/Firebird LS Swap With 35mm Hoses Aluminum Performance Radiator and 12 Inch Fan Kit

1970-1981 F-Body (LS SWAP) With 35mm Hoses Aluminum Performance Radiator and 12 Inch Fan Kit. MT or AT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

Fits:
70-81 Camaro/Firebird LS SWAP
Firebird applications will need mounting brackets.

Details:

• 100 percent TIG welded
• Fan Diameter 12 Inch
• All Aluminum
• Polished OE style tanks
• 2 rows 1.25 inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Dual Flow Design
• Direct fitment for 70-81 Camaro/Firebird/Trans Am with LS motors

• Old Part Number: RPE5557A

Radiator Specs

• Core Height 18.4 inch
• Core Width 27.5 inch
• Overall Height 19 inch
• Overall Width 33.2 inch
• Overall Thickness 6 inch
• Upper Hose 1.37 inch
• Lower Hose 1.37 inch
• Tubes (2) 1.25 inch Tubes
