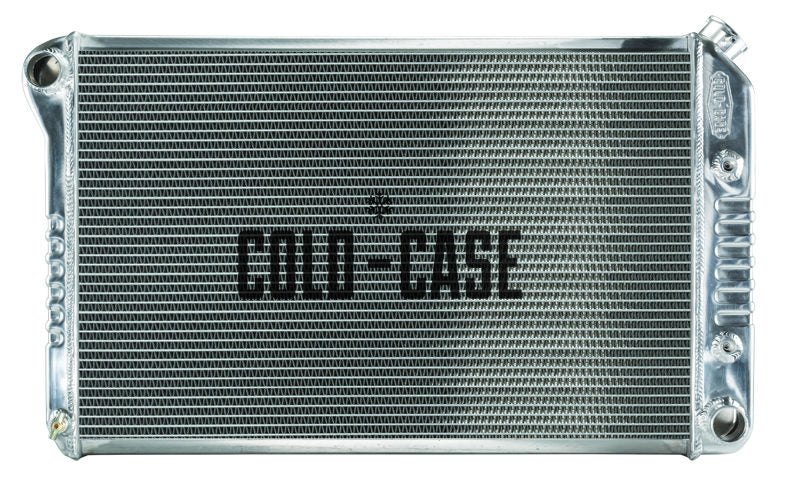

Cold Case Radiators CHC545A - 70-81 Camaro Aluminum Radiator AT

Cold Case Radiators CHC545A - 70-81 Camaro Aluminum Radiator AT

1970-1981 Chevrolet Camaro Aluminum Performance Radiator. AT Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• (2) 1.25 inch Tubes
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic trans
• Direct fitment for 70-81 Camaro
• Old Part Number: RPE545ATF

Radiator Specs

• Core Height 15.6 inch
• Core Width 26.2 inch
• Overall Height 19 inch
• Overall Width 31.5 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.65
