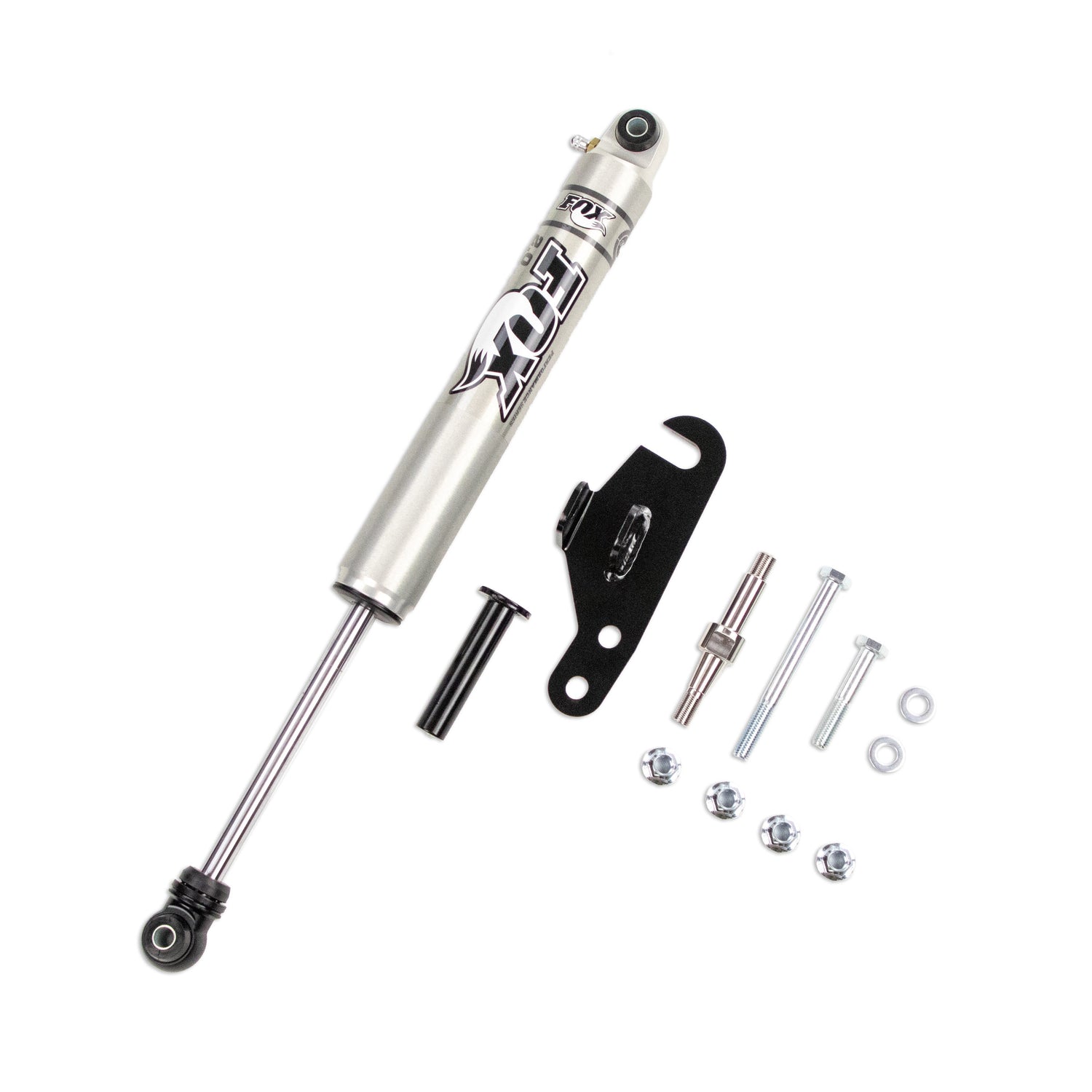

Cognito 210-91333 - Fox Steering Stabilizer Kit for 2011-2025 GM 2500HD/3500HD

Cognito 210-91333 - Fox Steering Stabilizer Kit for 2011-2025 GM 2500HD/3500HD

Compatible with lift kits that have the center link in the factory location

Compatible with the Cognito Pitman and Idler Arm Support Kit

Simple and completely bolt on installation for 2016+ model years

2011-2015 model years require cutting off of the OEM frame clevis with tabs

Reduce feedback from the road through the steering wheel

Includes Fox Performance Series 2.

In 2011, GM introduced a redesigned HD platform with numerous improvements, including updates to the steering system and frame-mounted components. However, the pitman and idler arms remained mounted in single shear to the center link - a known weak point. Most steering performance issues are addressed with the Cognito Pitman and Idler Arm Support Kit (SKU 110-90772), which reinforces the system by converting to a double shear mount.

Still, some truck owners choose to further enhance control with the addition of a steering stabilizer.

This Cognito Fox Steering Stabilizer Kit is fully compatible with the Cognito Pitman and Idler Arm Support Kit.

For model years 2011 - 2014 and most of 2015, GM included OEM provisions for a steering stabilizer, requiring two mounting points: one on the right side of the steering center link and one on the left side of the frame. All 2011+ models retain the center link mounting provision - a tapered hole near the idler arm. However, only 2011 - 2014 and select 2015 trucks came with the frame-side mounting clevis (two welded tabs on the crossmember).

This OEM clevis interferes with the Cognito bracket and must be removed if present, as the included Fox stabilizer is not compatible with the factory mounting location.

For 2016+ models, GM eliminated the factory clevis, making this kit a truly bolt-on solution - no cutting, drilling, or welding required.

Features and Benefits:

• Reduce feedback from the road through the steering wheel
• Simple and completely bolt on installation for 2016+ model years
• 2011-2015 model years require cutting off of the OEM frame clevis with tabs
• Includes Fox Performance Series 2.0 Ifp Steering Stabilizer
• Compatible with the Cognito Pitman and Idler Arm Support Kit
• Compatible with lift kits that have the center link in the factory location
• Diy Install Time: 20 min
