Centerforce CFT474898 Transmission Clutch and Flywheel Kit

Centerforce  |  SKU: BDPL-CFT474898
$1,12899 $1,36299
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

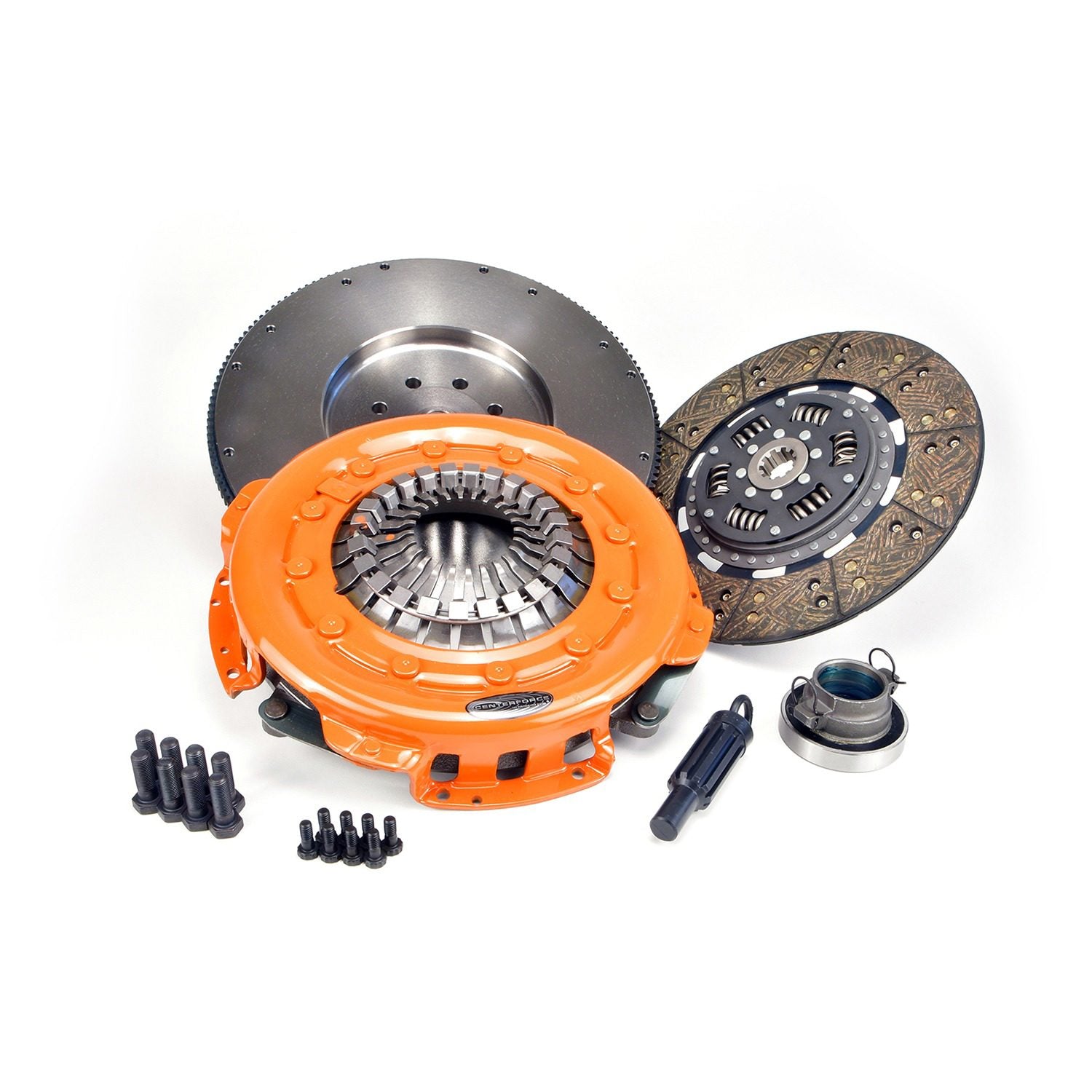

Centerforce CFT474898 Transmission Clutch and Flywheel Kit

Centerforce(R) II, Clutch Pressure Plate, Disc, and Flywheel Set

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

  • 12.25" Diameter
  • 1-1/4" x 10 Spline Input Shaft
  • Holds Up To 685 ft/lbs of Torque
  • Weighs 93.15 lbs
  • Sprung Hub Disc with Organic Material
  • 152 Tooth R.Gear, 8 Bolt Crank, and 0 oz Counter Balance
  • Centrifugally Assisted
Alignment Tool Included: Yes
Clutch Bolt Pattern: 22
Clutch Bolt Type: with Shoulder Bolt
Clutch Disc Diameter: 12.25
Counterweight Assist: Yes
Crankshaft Bolt Hole Quantity: 8
Disc Material: Organic
Disc Quantity: 1
Disc Type Sprung Solid: Sprung
Disc Type: Full Face
Flywheel Counter Balance Weight: 0
Input Shaft Diameter: 1-1/4
Input Spline Quantity: 10
Made In The USA: Assembled
Material: Cast Iron Pressure Plate / Organic Friction
Mounting Hardware Included: Yes
Out of Package Weight: 93.15
Release Bearing Included: Yes
Ring Gear O.D.: 15.625
Tooth Quantity: 152
Torque Capacity: 685
