Centerforce 413613099 - DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 47.30 lbs, 130 Tooth Gear, 8 Bolt Crank, 10.4in Dia., 26-Spline, Fits Dodge s Crate Engines & Swaps Gen III HEMI 8 Cyl

Centerforce 413613099 - DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 47.30 lbs, 130 Tooth Gear, 8 Bolt Crank, 10.4in Dia., 26-Spline, Fits Dodge s Crate Engines & Swaps Gen III HEMI 8 Cyl

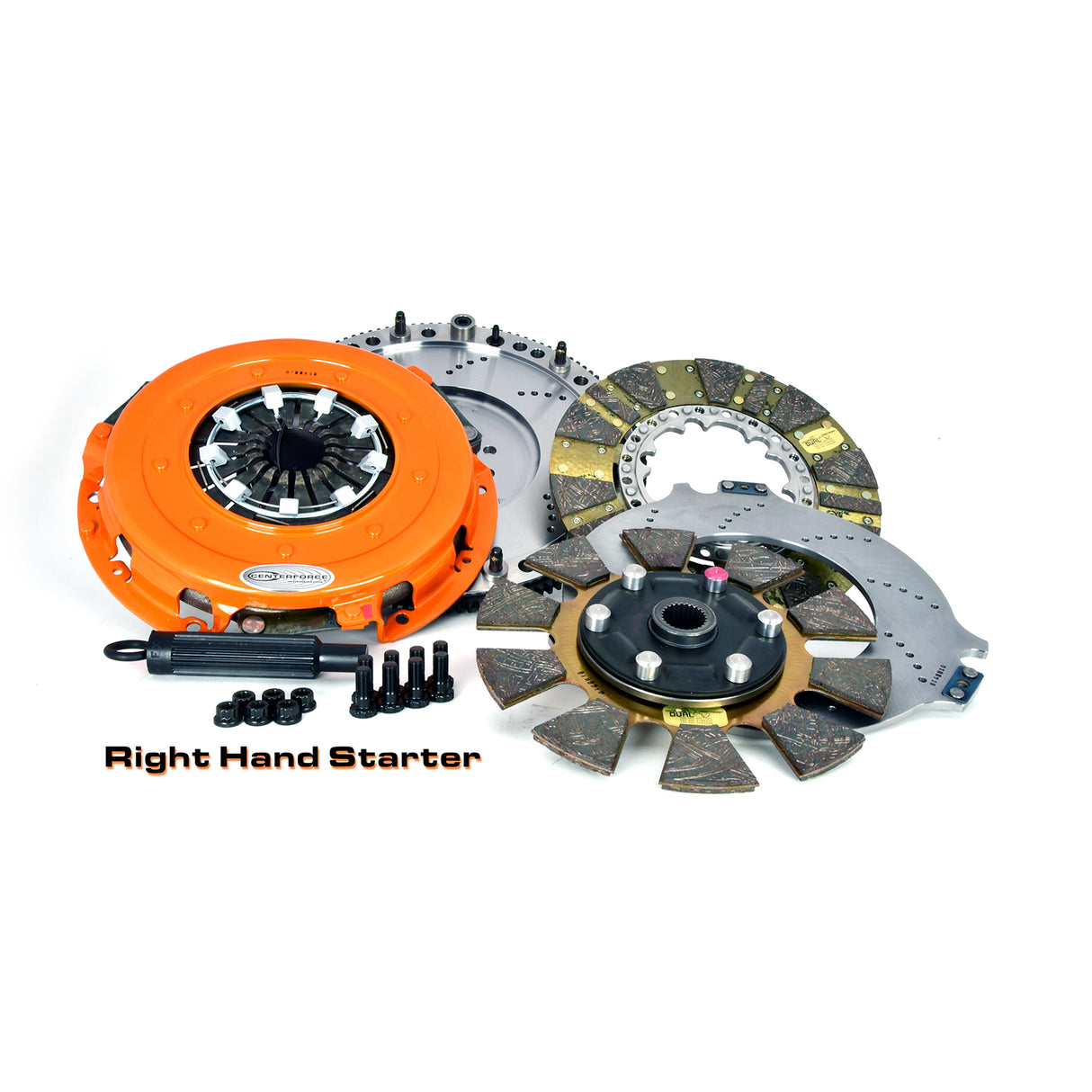

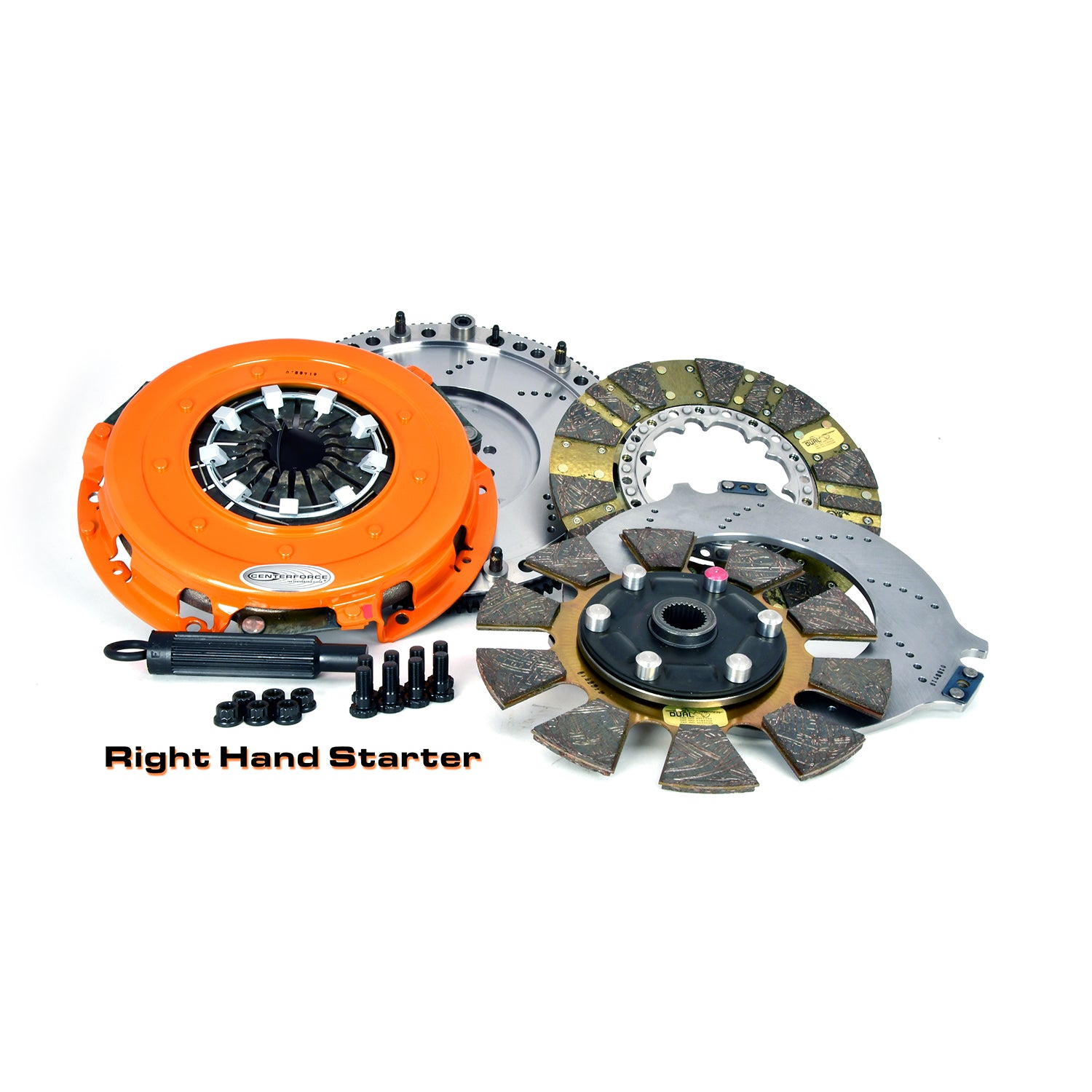

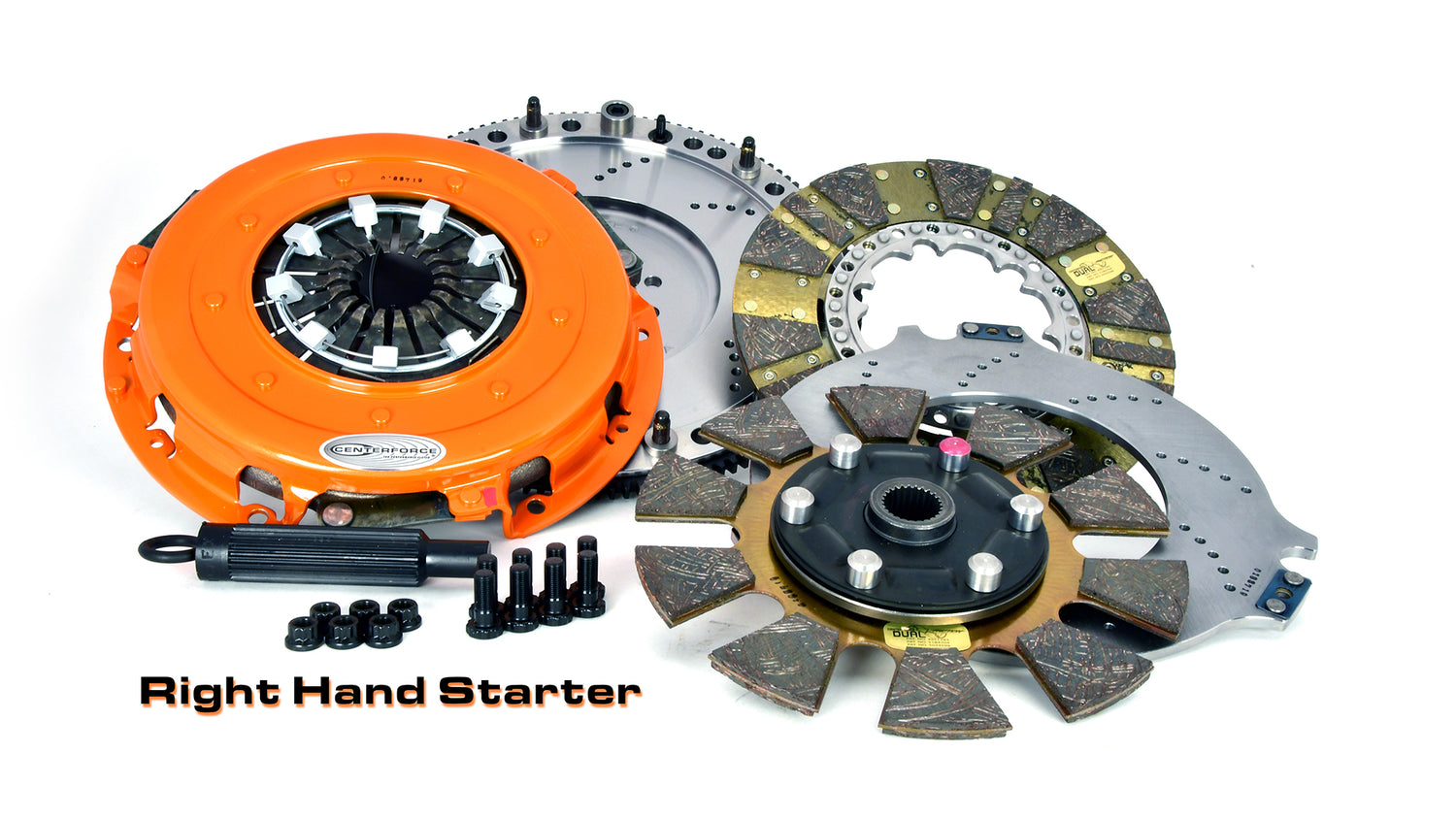

DYAD(R) DS 10.4, Clutch and Flywheel Kit

The Centerforce(R) DYAD(R) DS (Drive Sys.) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs. See extended description for more info.

Please Note: Gen III Chrysler Hemi engines and transmissions have a few different variations, including bellhousing depth and starter position. Truck engines generally position the starter on the driver side, while passenger car engines generally position the starter on the passenger side.This kit is for use with a short aftermarket bellhousing (i.e. a short deck height such as Quicktime Part # RM-6071) and an early Chrysler aftermarket starter (such as Mancini Part # MREBU61R274) positioned on the driver side of the engine. The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

• No Complicated Setup Or Adjustments Required
• Fully Dampened Clutch Developed For Vehicles W/extreme Power
• Patented Ball Bearing Pressure Plate
• Patented Multi-disc Floating Disc And Drive Disc Design
• Quiet; Positive Drive Floater
• Smooth Engagement And Light Pedal Effort
• Holds 500 To 1300 Ft/lbs Of Torque
• Precision Balanced
• Greater Longevity
• Arp Fasteners
• Excellent Driver Control
• Comes Preassembled For Your Convenience
