Carli Suspension CS-D3-PF-1319-D - Carli 13-24 RAM 3500 4x4 Diesel 3.25in Lift Pathfinder System
Carli Pathfinder System, Base, 3.25” Lift, 2013-26 Ram 3500 NON-AIR ASSIST
The Carli Pathfinder System is the true do-all Suspension setup. Featuring Carli-Spec 2.5" shocks tuned for optimal on road ride, improved offroad performance, stability when towing, durability, appearance, and easy on the wallet.
Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter (2.5”) shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.
- 2.5" Pathfinder shocks provide the best blend of comfort, control, and cooling capability for a great all-around shock.
- Shocks are finished in a durable gray hardcoat for resistance to corrosion and great appearance.
- Further improve performance by adding Carli torsion sway bar, fabricated radius arms, steering stabilizers, rear leaf spring option, or ball joints.
- Not compatible with trucks equipped with factory rear air ride.

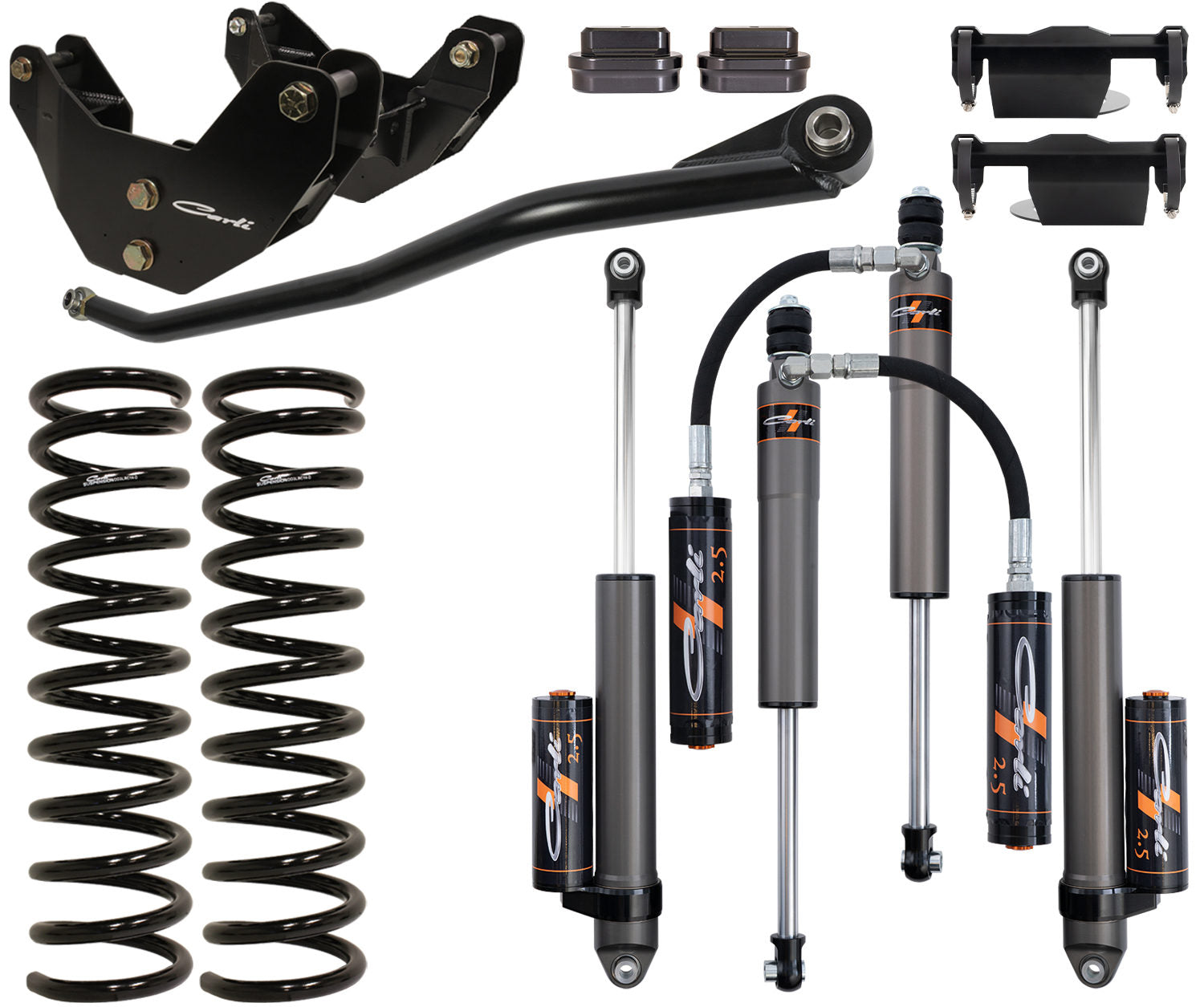

- System includes Linear-rate front coil springs, front and rear shock package, front bump drops, radius arm drops and adjustable track bar.
- Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
- Increases wheel travel to 9.3" front and 13" rear.
