Canton 18-360 - Oil Pan For Big Block Chevy Mark 4 Marine 10 Qt Oil Pan Black
Canton | SKU:
BGTF-18-360
Sale price
$59500
Regular price
$71400
Unit price
/
Unavailable
$119.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description
Canton 18-360 - Oil Pan For Big Block Chevy Mark 4 Marine 10 Qt Oil Pan Black
Engine Oil Pan - Marine - Rear Sump - 10 qt - 8.5 in Deep - Steel - Black Powder Coat - 2-Piece Rear Main - Big Block Chevy - Each
Canton 18-360 Oil Pan For Big Block Chevy Mark 4 Marine 10 Qt Oil Pan Black

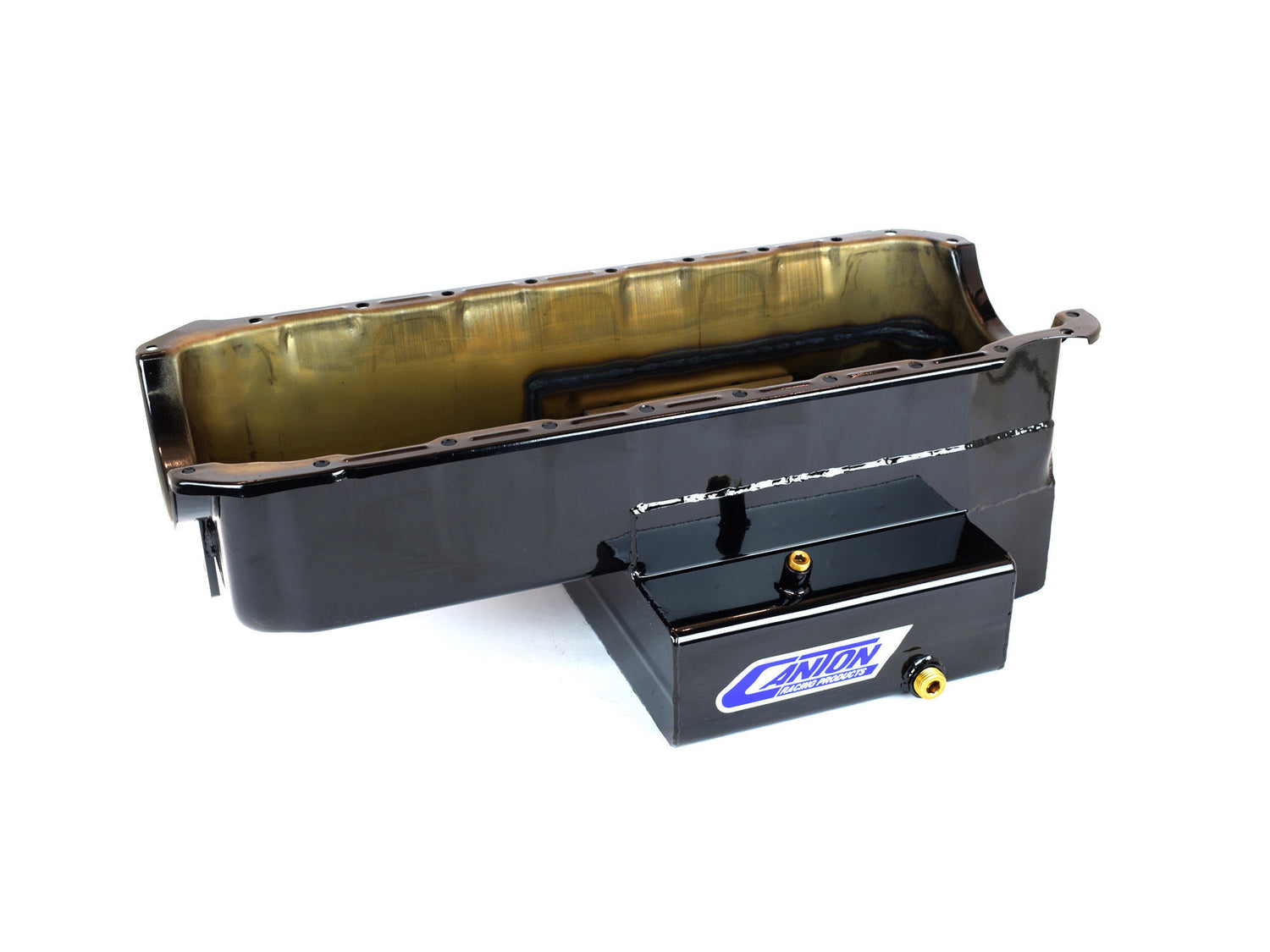

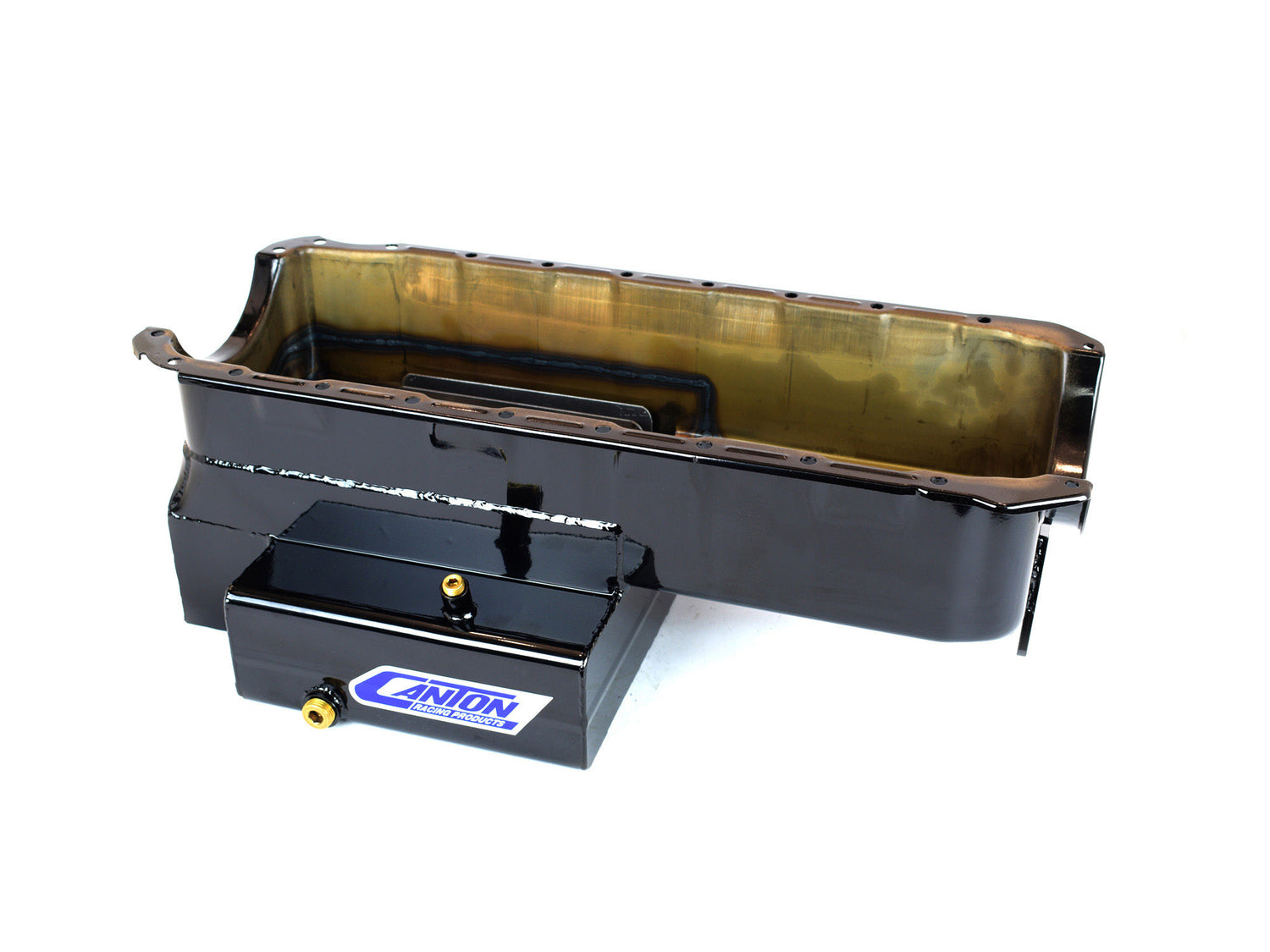

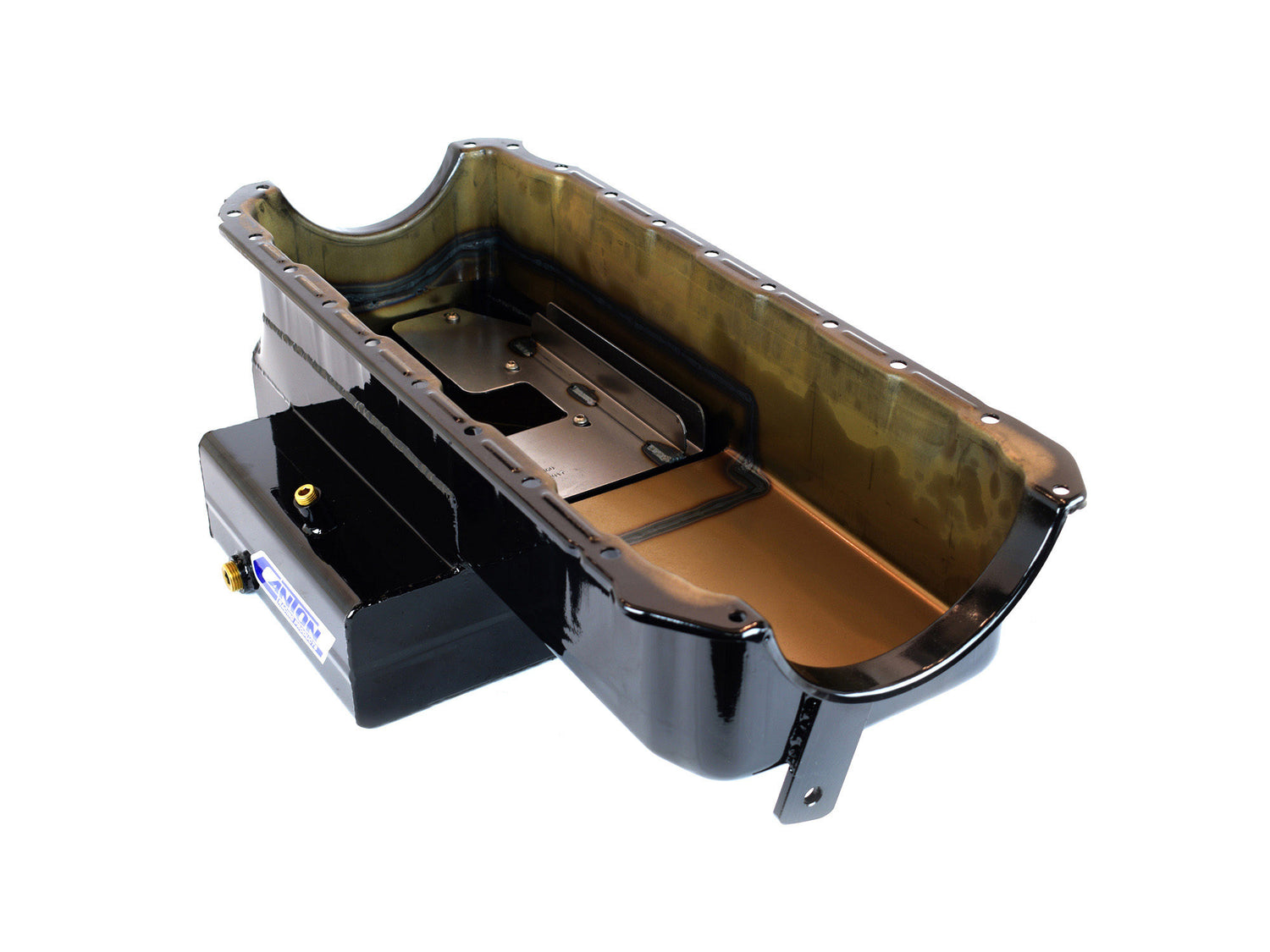

This BBC marine pan is for Mark 4 blocks with two piece seals. It is designed for applications with the pickup at the flywheel end of the engine. It has a 8-1/2" deep, 13" long, 14-1/4" wide sump, and holds 10 quarts of oil. This pan requires our 18-361 pickup.
- 10 qt Pan Capacity
- 14 ga. Steel Construction

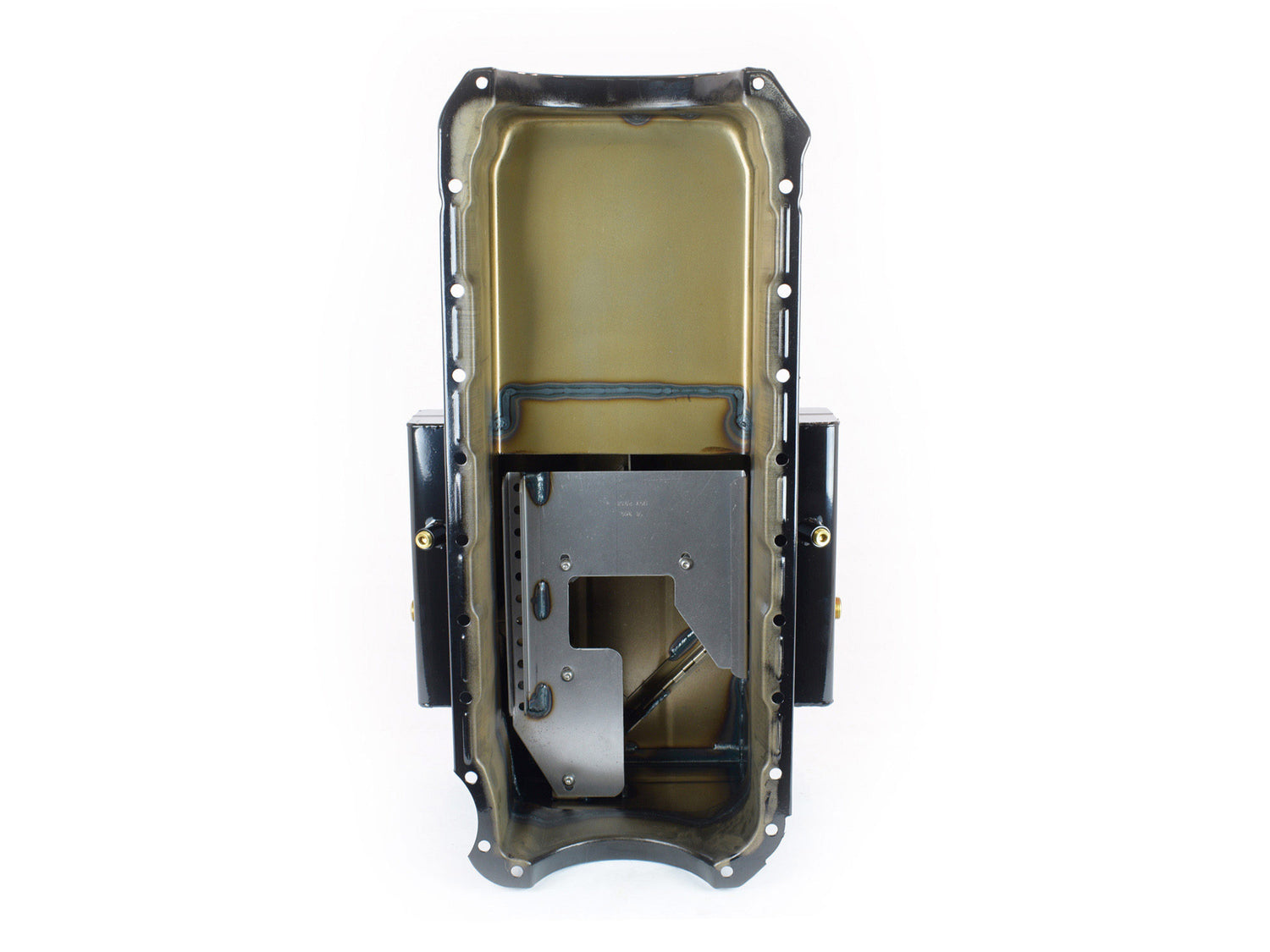

- Diamond Shaped Baffle Assembly With Four Trap Door Baffles
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Drain Fittings
- Provision For our Pan Mounted Dipstick
- Powder Coating & Brass Plugs For Corrosion Protection
Pickup Included: No
Material: 14 Gauge Steel
Kicked Out: Yes
Hardware Included: No
Finish: Black Gloss Powdercoat
Capacity: 10 Quart System Capacity
Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
Feature 6: Provision For our Pan Mounted Dipstick
Feature 5: 1/2" NPT Drain Fittings
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 3: Diamond Shaped Baffle Assembly With Four Trap Door Baffles
Feature 2: 14 ga. Steel Construction
Feature 1: 10 qt Pan Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
Baffled: Yes
Gasket or Seal Included: No
Stoke: 4.5 inches
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 18-361 - Our Stock Replacement Pickup
